DJI
Liquid Level Gauge Bracket (T50/T25P) YC.JG.ZS002237
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

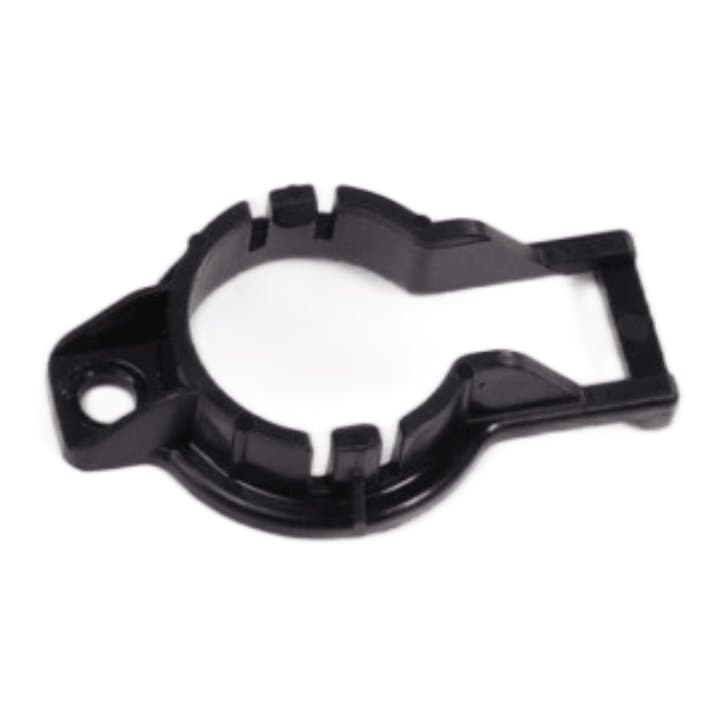

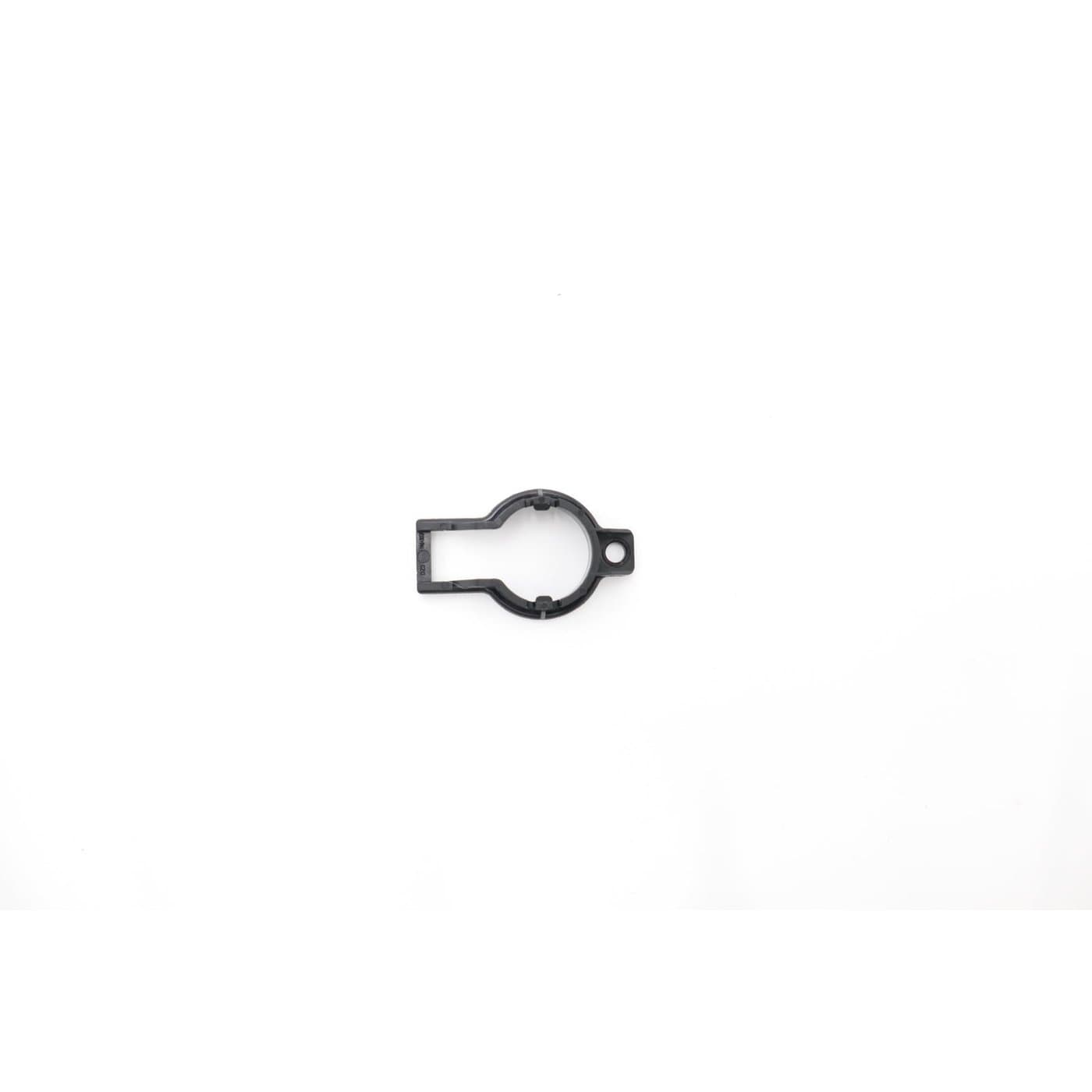

The liquid level gauge bracket carries the level gauge on DJI Agras T50 and T25P spray tanks, and the T25P spreader 1 sheet lists the same code between the quick-release rod and the torsion spring.
| Part number | YC.JG.ZS002237 |
| Fits | DJI Agras T50, T25P |
| Parts diagram | T50 tank 2, callout 13; T25P tank (sheet 2), callout 12; T25P spreader 1, callout 40 |
Check for cracks at the screw holes and for any bend that lets the gauge move, because a loose gauge can give wandering readings and strain its connections. Replace a bracket that is cracked or no longer holds the gauge square.
On T25P tank sheet 2 it is listed straight after the spray tank liquid level meter, and on T50 tank 2 it follows the liquid level gauge sensor module by a few callouts. An M40-HC060060-55-85 screw is drawn beside it on both tank sheets.
