DJI Agras T25P Front Frame (2)

Official DJI parts diagram and material list.

Pricing is per single item unless the part description says otherwise.

All T25P assemblies (18)

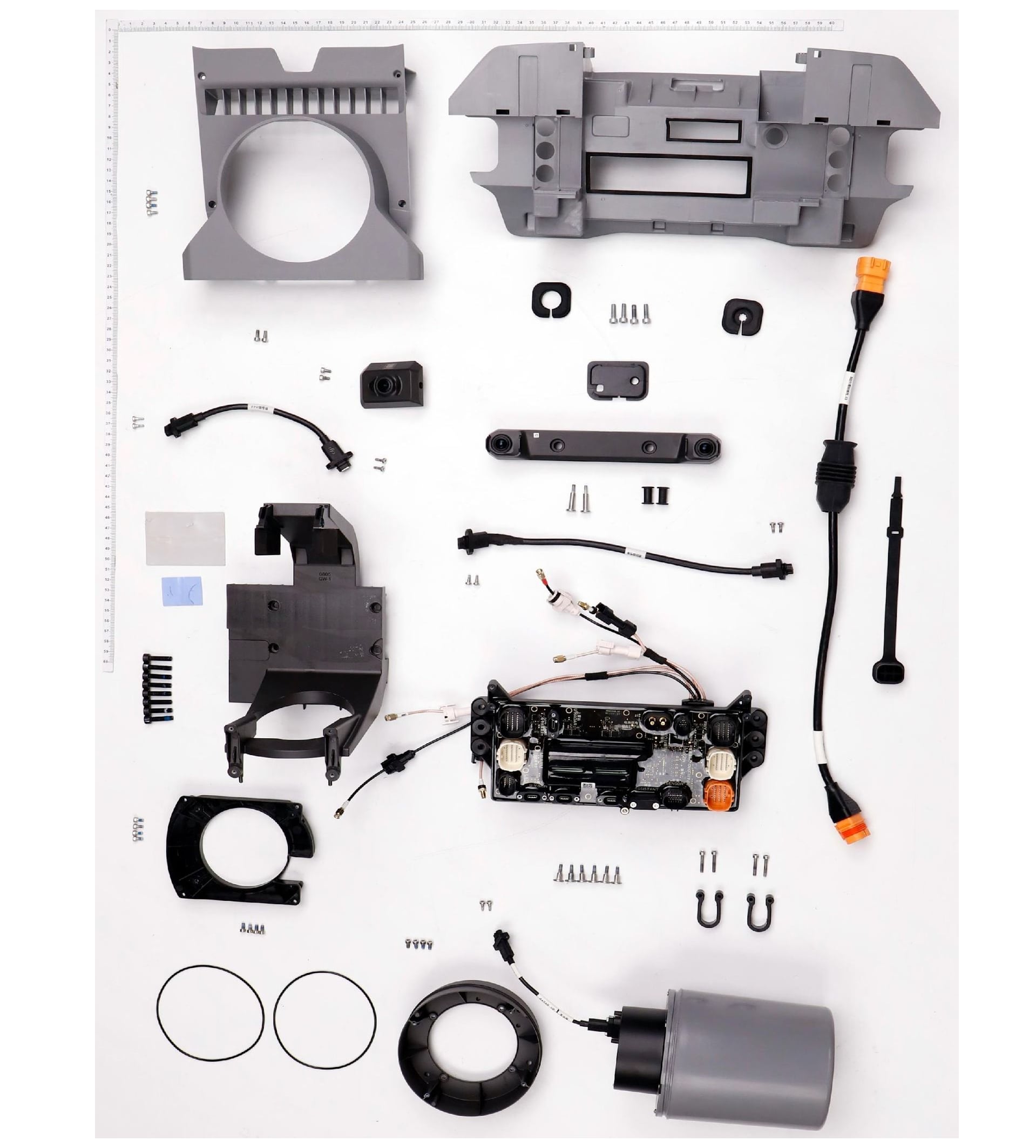

Parts Diagram

Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.

Open photo full size ↗

No.	Part	$ Each (inc. GST)
1	Front Shell_Top Cover YC.JG.ZS004593 $29.33	$29.33
2	Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05	$2.05
3	Screw M30-HC080080-55-85 YC.WJ.L00868 $3.05	$3.05
4	FPV Module (Incl. Signal Cable) BC.AG.SS000863 $644.00	$644.00
5	Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05	$2.05
6	Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 $2.05	$2.05
7	FPV Camera Signal Cable YC.XC.XX001215 $71.15	$71.15
8	Thermally Conductive Pad (71 x 51 mm) YC.JG.MQ002494 $4.00	$4.00
9	Thermally Conductive Pad (35 x 27 mm) YC.JG.MQ002497 $2.00	$2.00
10	Front Radar Bracket YC.JG.YZ000805 $119.60	$119.60
11	Screw M50-HC02000200-087052-4203-Y YC.ST.LL000489 $8.00	$8.00
12	Front Radar Base Bracket YC.JG.ZS004582 $4.63	$4.63
13	Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05	$2.05
14	Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05	$2.05
15	Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05	$2.05
16	Radar Sealing Ring YC.JG.MY001041 $2.50	$2.50
17	Front Radar Base YC.JG.YZ000803 $60.28	$60.28
18	Front Radar Module (Incl. Signal Cable) BC.AG.SS001004 $2,615.13	$2,615.13
19	Front Radar Signal Cable YC.XC.XX001212 $47.30	$47.30
20	M30-HC01450080-100020-5103-Y YC.ST.LL000226 $0.95	$0.95
21	Propulsion Cable Clip YC.JG.ZS003453 $2.50	$2.50
22	Screw M30-HC1880-55-85 YC.WJ.L00873 $3.05	$3.05
23	Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 $2.05	$2.05
25	Binocular Vision Sensor Signal Cable YC.XC.XX001214 $59.05	$59.05
26	Female Connector Rubber Stopper YC.JG.ZS005366 $3.15	$3.15
27	Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 $2.05	$2.05
28	Screw M30-HC02380080-094020-5103-Y YC.ST.LL000541 $0.95	$0.95
29	Binocular Vision Sensor Damping Pad YC.JG.MY001353 $2.00	$2.00
30	Duct Tape YC.JG.MQ002156 $29.00	$29.00
31	Binocular Fisheye Sensor (Incl. Signal Cable) BC.AG.SS000873 $441.25	$441.25
32	Payload Adapter Cable YC.XC.XX001208 $83.30	$83.30
33	Cable Rubber Stopper YC.JG.MY001453 $13.00	$13.00
34	M40-HC01400140-070039-4105-Y YC.ST.LL000148 $11.95	$11.95
35	Front Shell Sealing Stopper YC.JG.MY001079 $2.50	$2.50
36	Front Shell Rubber Stopper YC.JG.MY001490 $1.65	$1.65
37	Sealing Foam (133.3 x 35.7 mm) YC.JG.MQ002641 $1.65	$1.65
38	Front Shell Bottom Plate YC.JG.ZS004478 $78.75	$78.75
39	Sealing Foam (59.5 x 19.3 mm) YC.JG.MQ002642 $1.65	$1.65
