DJI Agras T25P Flow Meter
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T25P assemblies (18)
- Front Frame (1) (11)
- Front Frame (2) (38)
- Middle Frame (34)
- Rear Frame (23)
- Cable Distribution Board (13)
- Propeller (6)
- Cables (13)
- Landing Gear (25)
- Tank (1) (1)
- Tank (2) (29)
- Impeller Pump (15)
- Flow Meter (14)
- M3 Aircraft Arm (38)
- Spray Lance (19)
- Aerial Electronics Module (9)
- Spreader 1 (55)
- Spreader 2 (7)
- Spread Tank (2)

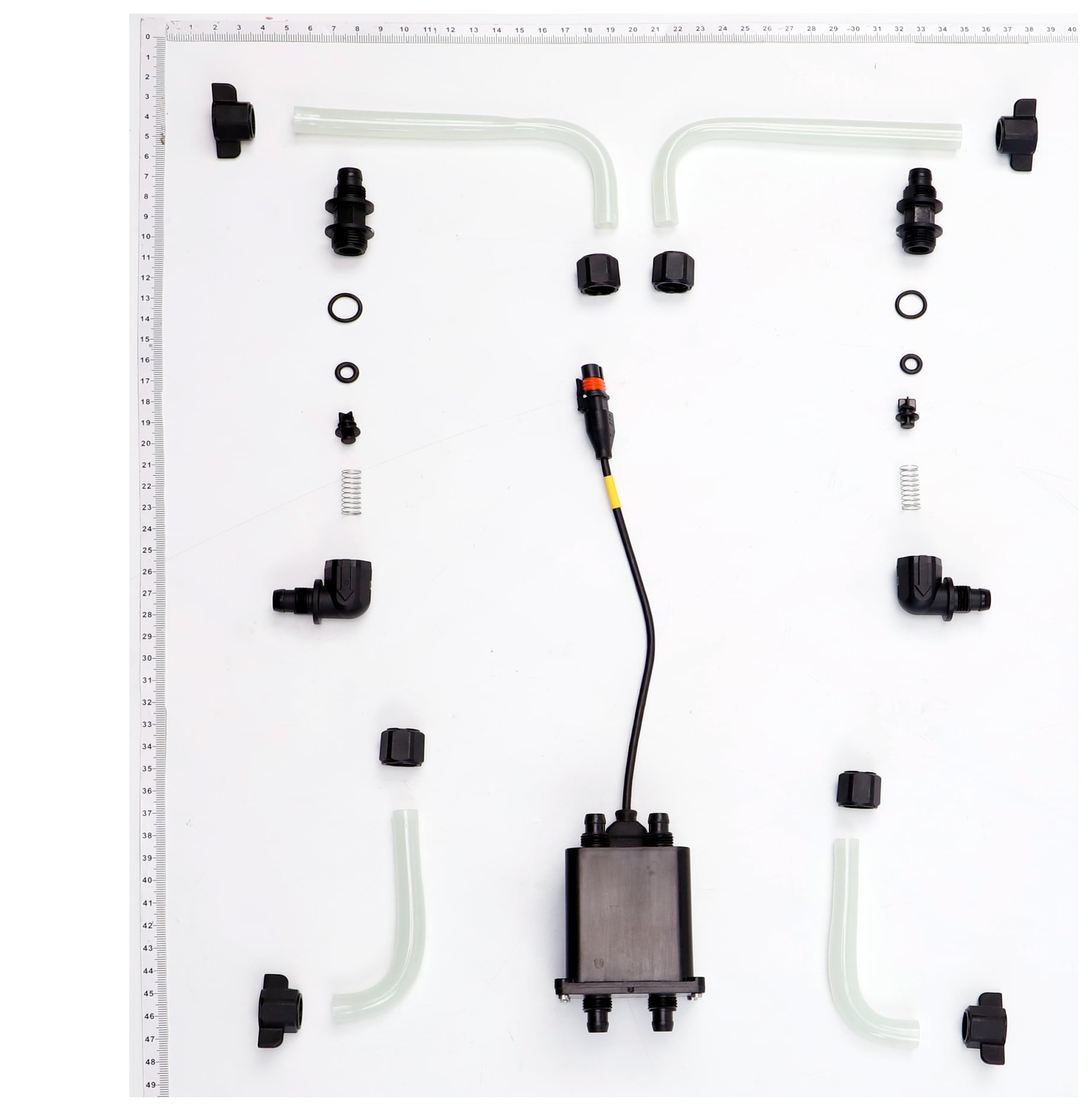

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Flow Meter Water Outlet Hose YC.JG.JS000033 $11.95 | $11.95 | |
| 2 | Thumb Nut YC.JG.ZS003594 $6.00 | $6.00 | |
| 3 | One-Way Valve Core Straight Connector YC.JG.ZS004721 $0.90 | $0.90 | |
| 4 | Hose Nut YC.JG.ZS002255 $13.00 | $13.00 | |
| 5 | One-Way Valve Sealing Ring YC.JG.MY001129 $1.35 | $1.35 | |
| 6 | One-Way Valve Core Sealing Ring YC.JG.MY001329 $0.90 | $0.90 | |
| 7 | One-Way Valve Core YC.JG.ZS005001 $0.90 | $0.90 | |
| 8 | One-Way Valve Spring YC.JG.TT000210 $0.90 | $0.90 | |
| 9 | One-Way Valve Core Curve Connector YC.JG.ZS004722 $3.15 | $3.15 | |
| 10 | Flow Meter Signal Cable YC.XC.XX001004 $47.35 | $47.35 | |
| 11 | Hose Nut YC.JG.ZS002255 $13.00 | $13.00 | |
| 12 | Flow Meter Module (Incl. Signal Cable) BC.AG.SS000927 $699.00 | $699.00 | |
| 13 | Flow Meter Water Inlet Hose YC.JG.JS000032 $11.95 | $11.95 | |
| 14 | Thumb Nut YC.JG.ZS003594 $6.00 | $6.00 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
