DJI Agras T25P Front Frame (1)
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T25P assemblies (18)
- Front Frame (1) (11)
- Front Frame (2) (38)
- Middle Frame (34)
- Rear Frame (23)
- Cable Distribution Board (13)
- Propeller (6)
- Cables (13)
- Landing Gear (25)
- Tank (1) (1)
- Tank (2) (29)
- Impeller Pump (15)
- Flow Meter (14)
- M3 Aircraft Arm (38)
- Spray Lance (19)
- Aerial Electronics Module (9)
- Spreader 1 (55)
- Spreader 2 (7)
- Spread Tank (2)

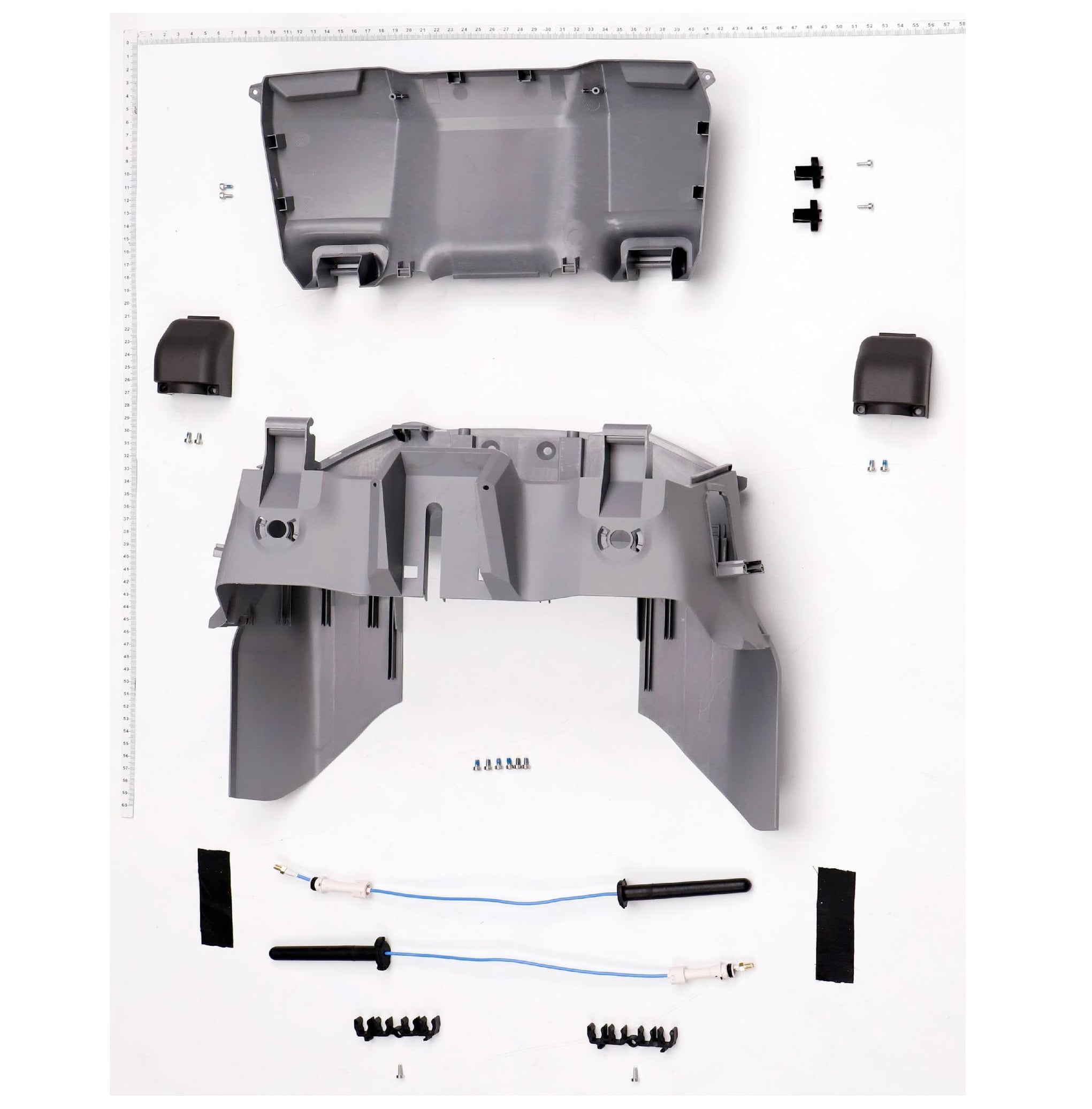

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Front Shell_Front Cover YC.JG.ZS004476 $69.52 | $69.52 | |
| 2 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 3 | Outer Shell Side Cover YC.JG.ZS003452 $11.95 | $11.95 | |
| 4 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 5 | Front Shell Module YC.JG.ZS004477 $71.69 | $71.69 | |
| 6 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 8 | SDR Antenna (Front) YC.DZ.AA000326 $37.85 | $37.85 | |
| 9 | RF Cable Clip YC.JG.ZS003455 $2.50 | $2.50 | |
| 10 | T30-HC00800080-057030-5103-N YC.ST.LL000235 $0.95 | $0.95 | |
| 11 | Buckle Base (Female) YC.JG.ZS000998 $3.95 | $3.95 | |
| 12 | T30-HC00800080-057030-5103-N YC.ST.LL000235 $0.95 | $0.95 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
