DJI
One-Way Valve Core Sealing Ring (T100/T70P/T25P) YC.JG.MY001329
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

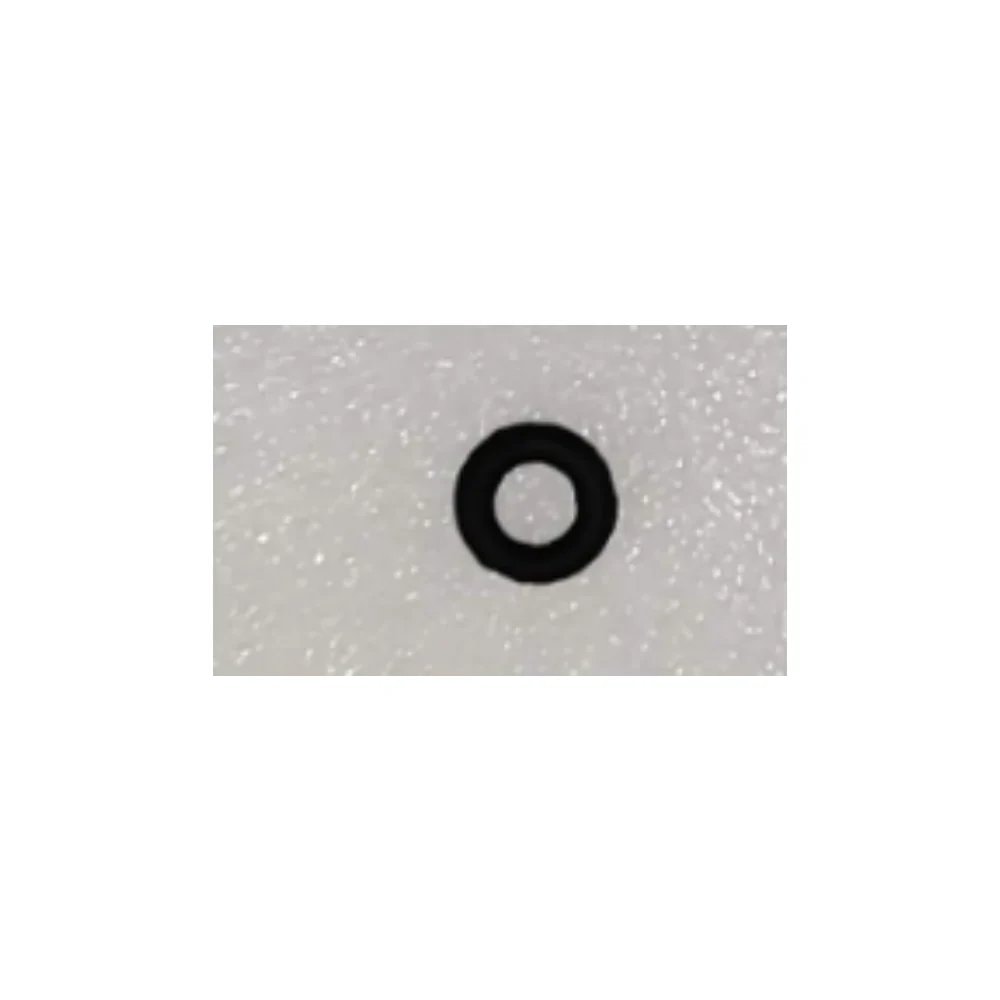

A sealing ring for the one-way valve core, found on the spreading spinner disk of the DJI Agras T100 and T70P and on both the flowmeter and the spreader of the T25P.
| Part number | YC.JG.MY001329 |
| Fits | DJI Agras T100, T70P, T25P |
| Parts diagram | T100 spreading spinner disk, callout 17; T70P spreading spinner disk, callout 17; T25P flowmeter, callout 6; T25P spreader (sheet 1), callout 5 |
On the T25P flowmeter sheet it is drawn next to the one-way valve sealing ring at callout 5, which has its own code, so work out which ring has failed before ordering. On the spinner disk sheets it is listed with the spinner disk shell and the baffle.
A ring that is nicked, flattened, swollen by chemical or hard to the touch will not seal. Clean out the groove first, and roll the new ring on without twisting it.
