DJI Agras T25P Rear Frame
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T25P assemblies (18)
- Front Frame (1) (11)
- Front Frame (2) (38)
- Middle Frame (34)
- Rear Frame (23)
- Cable Distribution Board (13)
- Propeller (6)
- Cables (13)
- Landing Gear (25)
- Tank (1) (1)
- Tank (2) (29)
- Impeller Pump (15)
- Flow Meter (14)
- M3 Aircraft Arm (38)
- Spray Lance (19)
- Aerial Electronics Module (9)
- Spreader 1 (55)
- Spreader 2 (7)
- Spread Tank (2)

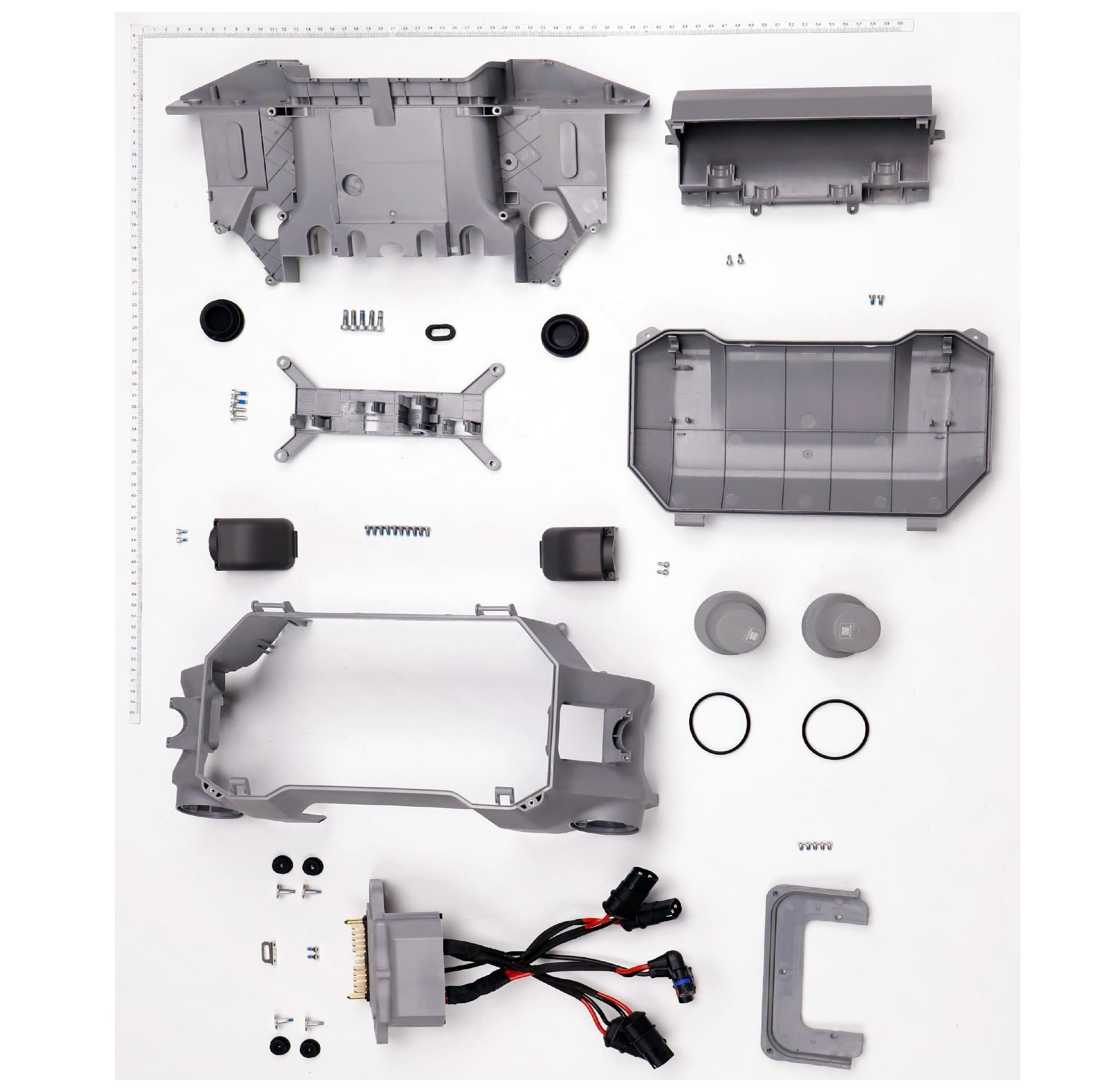

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Rear Shell Bottom Plate YC.JG.ZS003395 $43.00 | $43.00 | |
| 2 | M40-HC01400140-070039-4105-Y YC.ST.LL000148 $11.95 | $11.95 | |
| 3 | Dustproof Stopper YC.JG.MY001071 $4.60 | $4.60 | |
| 4 | Cable Rubber Sleeve YC.JG.MY001128 $2.50 | $2.50 | |
| 5 | Cable Clip YC.JG.ZS004834 $29.00 | $29.00 | |
| 6 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05 | $2.05 | |
| 7 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 8 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 9 | Outer Shell Side Cover YC.JG.ZS003452 $11.95 | $11.95 | |
| 10 | Rear Shell Module YC.JG.ZS003397 $43.00 | $43.00 | |
| 11 | Damping Pad YC.JG.MY001054 $2.50 | $2.50 | |
| 12 | Screw M30-HC01350050-140020-5103-Y YC.ST.LL000335 $2.50 | $2.50 | |
| 13 | Power Distribution Board Module BC.AG.SS000695 $388.75 | $388.75 | |
| 14 | Battery Buckle YC.JG.FM000122 $17.90 | $17.90 | |
| 15 | Screw (M30-HC100100-55-85) YC.ST.LL000336 $2.50 | $2.50 | |
| 16 | Power Distribution Board Waterproof Cover YC.JG.ZS003588 $17.90 | $17.90 | |
| 17 | Screw (M30-HC00550045-055012-5103-Y) YC.ST.LL000382 $2.50 | $2.50 | |
| 18 | RTK Rubber Ring YC.JG.MY001073 $2.50 | $2.50 | |
| 19 | RTK Antenna Module BC.AG.SS001034 $176.00 | $176.00 | |
| 20 | Rear Cover of Rear Shell YC.JG.ZS003396 $22.00 | $22.00 | |
| 21 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 22 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 23 | Rear Shell_Lower Cover YC.JG.ZS003443 $22.00 | $22.00 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
