DJI Agras T25P Aerial Electronics Module
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T25P assemblies (18)
- Front Frame (1) (11)
- Front Frame (2) (38)
- Middle Frame (34)
- Rear Frame (23)
- Cable Distribution Board (13)
- Propeller (6)
- Cables (13)
- Landing Gear (25)
- Tank (1) (1)
- Tank (2) (29)
- Impeller Pump (15)
- Flow Meter (14)
- M3 Aircraft Arm (38)
- Spray Lance (19)
- Aerial Electronics Module (9)
- Spreader 1 (55)
- Spreader 2 (7)
- Spread Tank (2)

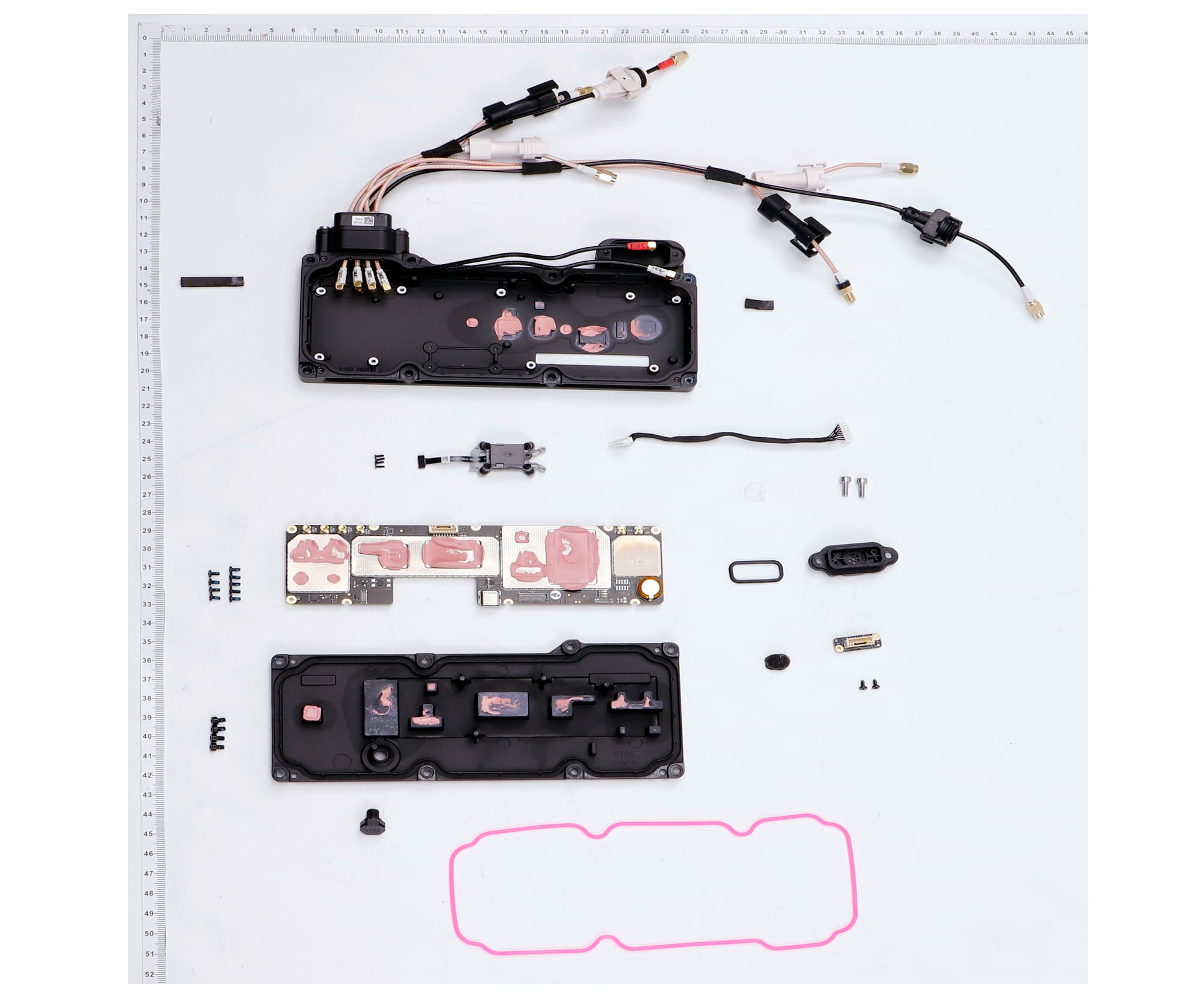

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 9 | Vent Trap YC.SJ.S00717 $37.25 | $37.25 | |
| 10 | Aerial-Electronics Module Sealing Ring YC.JG.MY001348 $4.00 | $4.00 | |
| 11 | Barometer Protection Foam YC.PM.QT000137 $2.05 | $2.05 | |
| 12 | Screw (T20-PC00400040-040010-0323-N) YC.WJ.LL000396 $0.97 | $0.97 | |
| 13 | Barometer Board BC.AG.PP000520 $46.00 | $46.00 | |
| 14 | Barometer Module Sealing Ring YC.JG.MY000699 $0.95 | $0.95 | |
| 15 | Barometer Outer Shell YC.JG.ZS002301 $6.00 | $6.00 | |
| 16 | Screw M30-HC080080-55-85 YC.WJ.L00868 $3.05 | $3.05 | |
| 17 | Barometer Waterproof Permeability Film YC.QT.QT000167 $3.05 | $3.05 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
