DJI Agras T25P Spray Lance
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T25P assemblies (18)
- Front Frame (1) (11)
- Front Frame (2) (38)
- Middle Frame (34)
- Rear Frame (23)
- Cable Distribution Board (13)
- Propeller (6)
- Cables (13)
- Landing Gear (25)
- Tank (1) (1)
- Tank (2) (29)
- Impeller Pump (15)
- Flow Meter (14)
- M3 Aircraft Arm (38)
- Spray Lance (19)
- Aerial Electronics Module (9)
- Spreader 1 (55)
- Spreader 2 (7)
- Spread Tank (2)

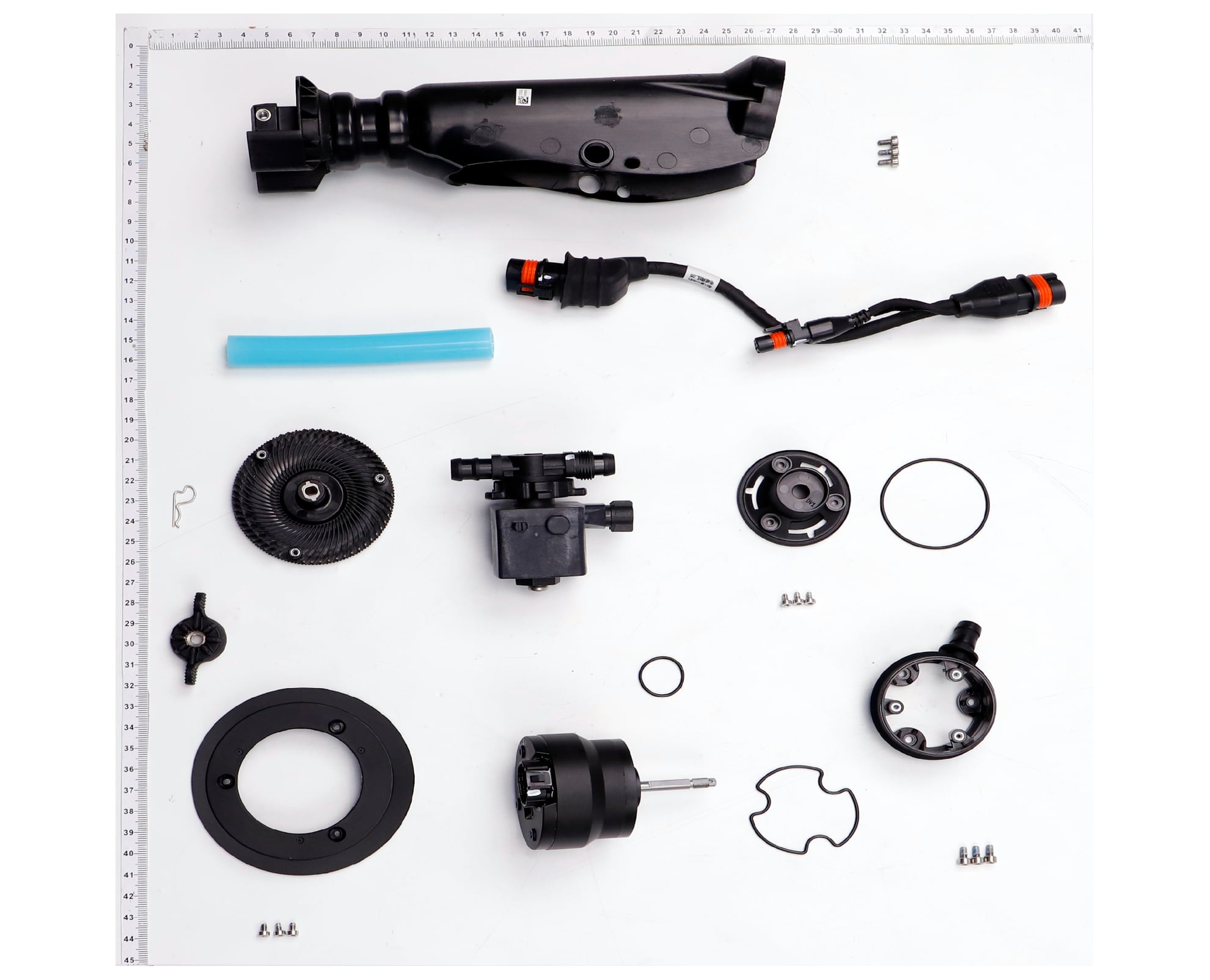

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Spray Lance Shell YC.JG.ZS004506 $16.39 | $16.39 | |
| 2 | Sprinkler Soft Hose YC.JG.JS000043 $2.50 | $2.50 | |
| 3 | Solenoid Valve Module BC.AG.SS000871 $68.09 | $68.09 | |
| 4 | Centrifugal Sprinkler Lower Disk YC.JG.ZS004923 $16.36 | $16.36 | |
| 5 | R-Type Pin YC.JG.TT000203 $0.90 | $0.90 | |
| 6 | Sealing Ring (ID=16.5 mm) YC.JG.MY001295 $1.76 | $1.76 | |
| 7 | Centrifugal Sprinkler Nut YC.JG.ZS004510 $1.80 | $1.80 | |
| 8 | Centrifugal Sprinkler Upper Disk YC.JG.ZS004509 $1.76 | $1.76 | |
| 9 | Centrifugal Motor BC.AG.SS000872 $264.59 | $264.59 | |
| 10 | Screw M25-HC00400040-050020-0003-N YC.WJ.LL000138 $3.60 | $3.60 | |
| 11 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 12 | Sprinkler Funnel Sealing Ring YC.JG.MY001296 $2.60 | $2.60 | |
| 13 | Sprinkler Funnel YC.JG.ZS004512 $8.64 | $8.64 | |
| 14 | Screw M25-HC00400040-050020-0003-N YC.WJ.LL000138 $3.60 | $3.60 | |
| 15 | Motor Sealing Ring YC.JG.MY000704 $5.50 | $5.50 | |
| 16 | Sprinkler Funnel Lower Shell YC.JG.ZS004513 $8.64 | $8.64 | |
| 17 | Centrifugal Sprinkler Adapter Cable YC.XC.XX001281 $50.64 | $50.64 | |
| 18 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| M25-HC060060-45-85 YC.WJ.L01549 $4.80 | $4.80 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
