DJI Agras T25P Impeller Pump
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T25P assemblies (18)
- Front Frame (1) (11)
- Front Frame (2) (38)
- Middle Frame (34)
- Rear Frame (23)
- Cable Distribution Board (13)
- Propeller (6)
- Cables (13)
- Landing Gear (25)
- Tank (1) (1)
- Tank (2) (29)
- Impeller Pump (15)
- Flow Meter (14)
- M3 Aircraft Arm (38)
- Spray Lance (19)
- Aerial Electronics Module (9)
- Spreader 1 (55)
- Spreader 2 (7)
- Spread Tank (2)

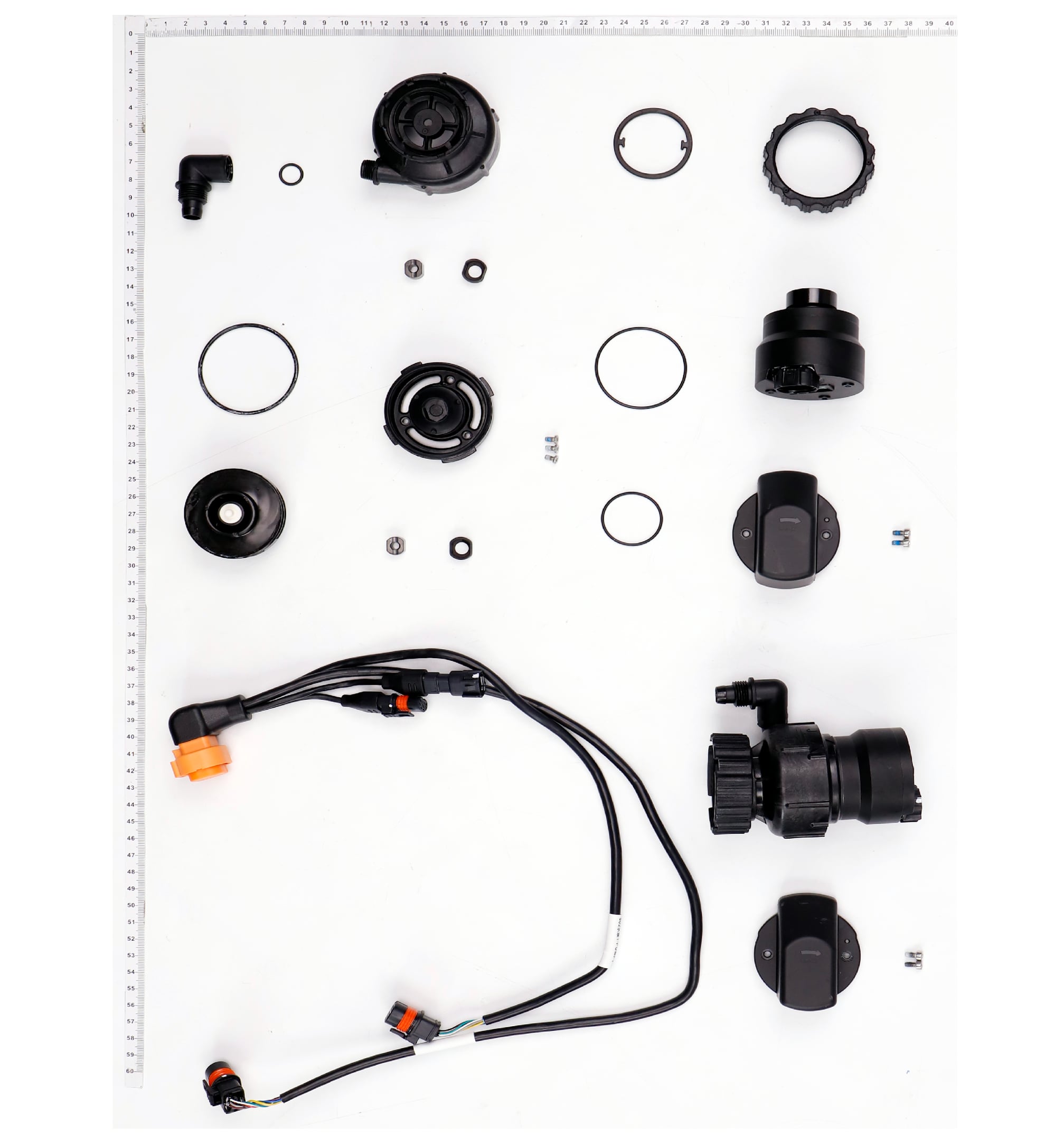

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Pump Shell YC.JG.ZS004649 $7.65 | $7.65 | |
| 2 | Pump_Connector Sealing Ring YC.XJ.QT000350 $2.50 | $2.50 | |
| 3 | Impeller Pump Curving Connector YC.JG.ZS003420 $6.00 | $6.00 | |
| 6 | Isolation Sleeve YC.JG.ZS004667 $15.30 | $15.30 | |
| 7 | Pump Sealing Ring YC.JG.MY001052 $11.95 | $11.95 | |
| 8 | Impeller Pump Module BC.AG.SS000710 $47.35 | $47.35 | |
| 9 | Spray Tank Signal Cable YC.XC.XX001209 $83.30 | $83.30 | |
| 10 | Sealing Ring (OD=31.4 mm) YC.JG.MY001315 $3.15 | $3.15 | |
| 11 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 12 | Impeller Pump Protective Hood YC.JG.ZS002389 $11.00 | $11.00 | |
| 13 | Screw M30-HC00630050-050013-5103-Y YC.ST.LL000454 $0.59 | $0.59 | |
| 14 | Impeller Pump Motor BC.AG.SS000870 (now supplied as BC.AG.SS000543) $449.00 | $449.00 | |
| 15 | Sealing Ring (OD=46.5 mm) YC.JG.MY001316 $9.20 | $9.20 | |
| 16 | Water Outlet Rotation Cover YC.JG.ZS002233 $9.50 | $9.50 | |
| 17 | Y-tee Part Sealing Pad YC.JG.MY001053 $6.00 | $6.00 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
