DJI Agras T25P Cables
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T25P assemblies (18)
- Front Frame (1) (11)
- Front Frame (2) (38)
- Middle Frame (34)
- Rear Frame (23)
- Cable Distribution Board (13)
- Propeller (6)
- Cables (13)
- Landing Gear (25)
- Tank (1) (1)
- Tank (2) (29)
- Impeller Pump (15)
- Flow Meter (14)
- M3 Aircraft Arm (38)
- Spray Lance (19)
- Aerial Electronics Module (9)
- Spreader 1 (55)
- Spreader 2 (7)
- Spread Tank (2)

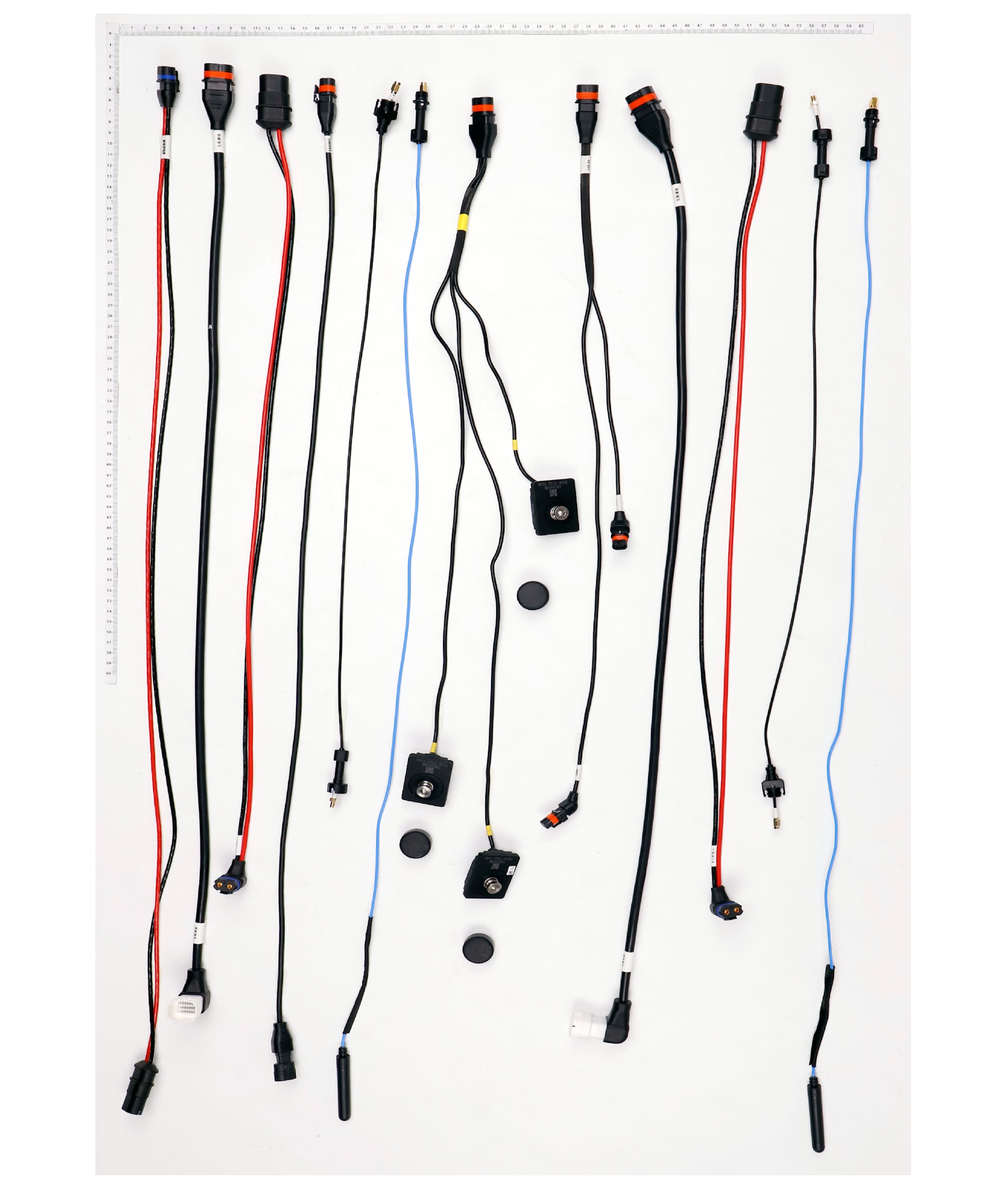

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Battery Power Cable YC.XC.DD000683 $71.15 | $71.15 | |
| 2 | Throttle Cable YC.XC.XX001198 $73.00 | $73.00 | |
| 3 | Rear Aircraft Arm ESC Power Adapter Cable YC.XC.DD000680 $59.00 | $59.00 | |
| 4 | Battery Communication Cable YC.XC.XX001195 $71.15 | $71.15 | |
| 5 | RF Coaxial Cable YC.XC.TT000179 $48.00 | $48.00 | |
| 6 | SDR Antenna (Rear) YC.DZ.AA000460 $40.00 | $40.00 | |
| 7 | Weighing Sensor Rubber Cover YC.JG.MY001011 $7.30 | $7.30 | |
| 8 | Beacon Signal Cable YC.XC.XX001213 $37.85 | $37.85 | |
| 9 | Throttle Cable YC.XC.XX001198 $73.00 | $73.00 | |
| 10 | Rear Aircraft Arm ESC Power Adapter Cable YC.XC.DD000680 $59.00 | $59.00 | |
| 11 | RF Coaxial Cable YC.XC.TT000179 $48.00 | $48.00 | |
| 12 | SDR Antenna (Rear) YC.DZ.AA000460 $40.00 | $40.00 | |
| 13 | Weight Sensor Module BC.AG.SS000860 $195.00 | $195.00 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
