DJI Agras T25P Landing Gear
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T25P assemblies (18)
- Front Frame (1) (11)
- Front Frame (2) (38)
- Middle Frame (34)
- Rear Frame (23)
- Cable Distribution Board (13)
- Propeller (6)
- Cables (13)
- Landing Gear (25)
- Tank (1) (1)
- Tank (2) (29)
- Impeller Pump (15)
- Flow Meter (14)
- M3 Aircraft Arm (38)
- Spray Lance (19)
- Aerial Electronics Module (9)
- Spreader 1 (55)
- Spreader 2 (7)
- Spread Tank (2)

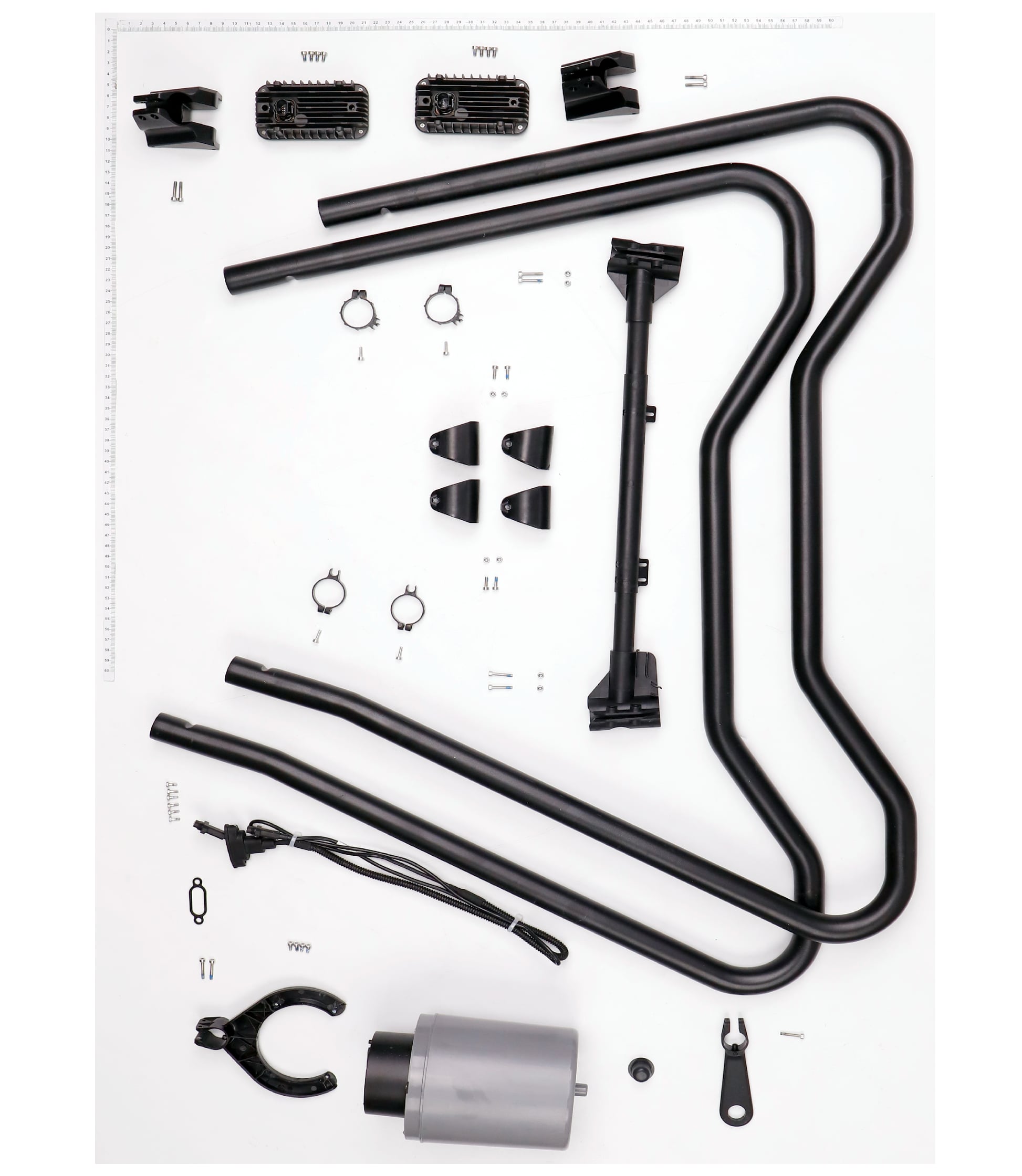

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 2 | Beacon BC.AG.SS000877 $352.75 | $352.75 | |
| 3 | Beacon Bracket YC.JG.ZS004578 $16.00 | $16.00 | |
| 4 | Screw M30-HC1880-55-85 YC.WJ.L00873 $3.05 | $3.05 | |
| 5 | M3 Nut YC.WJ.L00877 $2.05 | $2.05 | |
| 6 | Screw M30-HC1880-55-85 YC.WJ.L00873 $3.05 | $3.05 | |
| 7 | Landing Gear Cable Clip B YC.JG.ZS005117 $3.15 | $3.15 | |
| 8 | Screw T30-HC01000100-057030-5103-N YC.ST.LL000543 $0.65 | $0.65 | |
| 9 | Screw M30-HC100100-55-85 YC.WJ.L00871 $2.05 | $2.05 | |
| 10 | M3 Nut YC.WJ.L00877 $2.05 | $2.05 | |
| 11 | Bottom Rubber Pad YC.JG.ZS003558 $11.95 | $11.95 | |
| 12 | Landing Gear Crossbeam (Rear) YC.JG.ZS005273 $85.59 | $85.59 | |
| 13 | Landing Gear Cable Clip YC.JG.ZS003725 $3.10 | $3.10 | |
| 14 | Screw T30-HC01000100-057030-5103-N YC.ST.LL000543 $0.65 | $0.65 | |
| 15 | Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 $2.05 | $2.05 | |
| 16 | Rear Radar Signal Cable YC.XC.XX001216 $55.00 | $55.00 | |
| 17 | Rubber Pad YC.JG.MY001131 $4.00 | $4.00 | |
| 18 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 19 | Screw M30-HC1880-55-85 YC.WJ.L00873 $3.05 | $3.05 | |
| 20 | Radar Supporting Piece (Left) YC.JG.ZS004711 $8.00 | $8.00 | |
| 21 | Rear Radar Module (Incl. Signal Cable) BC.AG.SS001005 $2,292.86 | $2,292.86 | |
| 22 | Anti-Wear Rubber Stopper YC.JG.MY001575 $2.00 | $2.00 | |
| 23 | Radar Supporting Piece (Right) YC.JG.ZS003492 $2.50 | $2.50 | |
| 24 | Screw M30-HC1880-55-85 YC.WJ.L00873 $3.05 | $3.05 | |
| 25 | Landing Gear Aluminum Tube YC.JG.BJ002268 $120.94 | $120.94 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
