DJI Agras T25P Middle Frame

Official DJI parts diagram and material list.

Pricing is per single item unless the part description says otherwise.

All T25P assemblies (18)

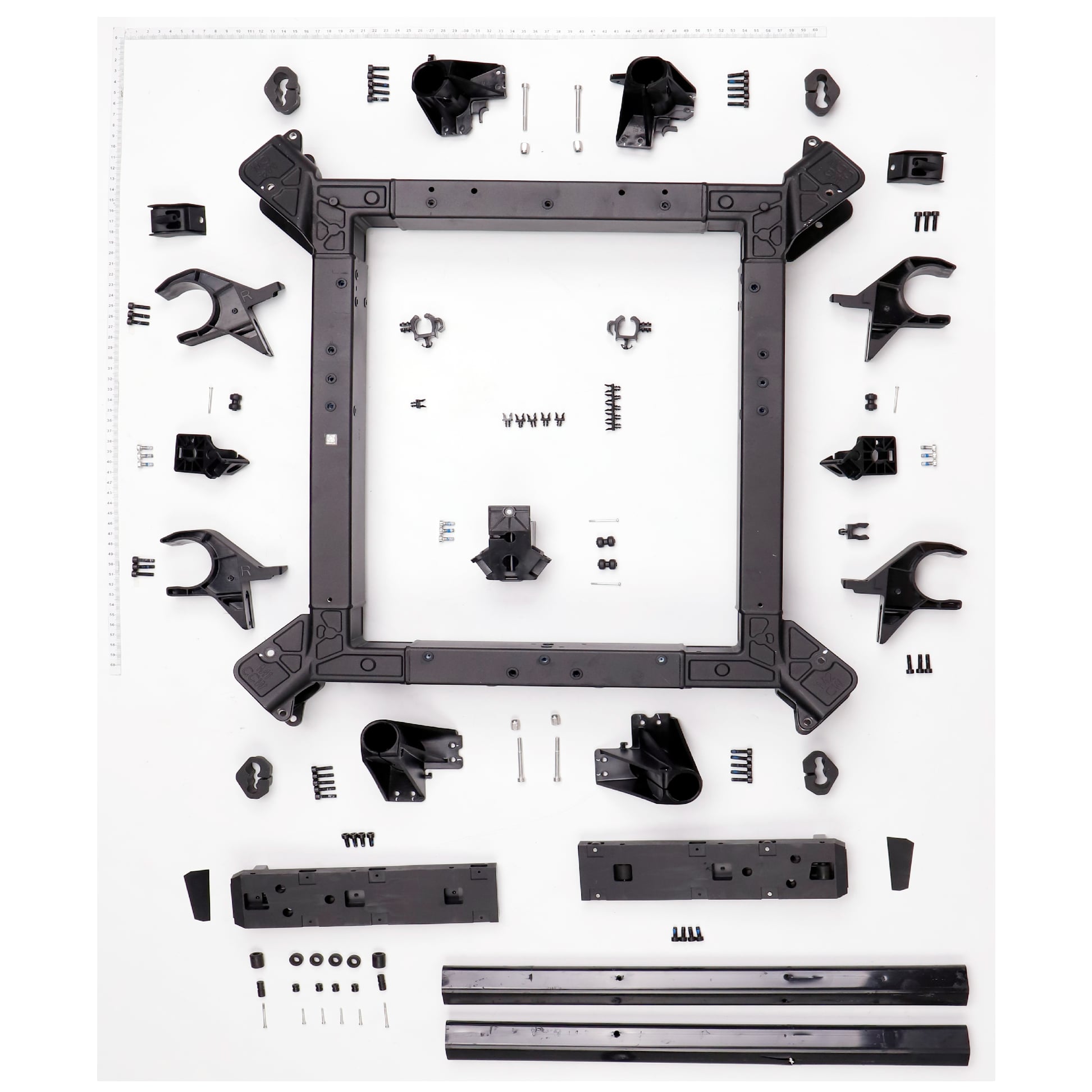

Parts Diagram

Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.

Open photo full size ↗

No.	Part	$ Each (inc. GST)
1	Landing Gear Fixing Piece (Rear Right) YC.JG.ZS003467 $69.00	$69.00
2	Screw M40-HC01400140-070042-4203-Y YC.ST.LL000482 $0.95	$0.95
3	Cable Tube Rubber Stopper YC.JG.MY001051 $6.00	$6.00
4	Anti-Collision Pad YC.JG.MY001050 $17.90	$17.90
5	Hose Clip YC.JG.ZS004996 $0.90	$0.90
6	Screw M40-HC01400140-070042-4203-Y YC.ST.LL000482 $0.95	$0.95
7	Aircraft Arm Fixing Piece (Right) YC.JG.ZS003413 $6.00	$6.00
8	Weighing Sensor Bracket Roller YC.JG.ZS003602 $6.00	$6.00
9	Spray Tank Fixing Piece_Roller Shaft YC.WJ.ZZ002618 $3.05	$3.05
10	Weight Sensor Bracket (Right) YC.JG.ZS003599 $11.95	$11.95
11	M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05	$2.05
12	Aircraft Frame Module BC.AG.SS000864 $516.00	$516.00
13	Landing Gear Fixing Piece (Front Right) YC.JG.ZS003464 $69.00	$69.00
14	Extended Battery Supporting Piece (Right) YC.JG.ZS004978 $17.90	$17.90
15	Battery Supporting Piece Patch (Right) YC.JG.MQ001386 $0.95	$0.95
16	Outer Scroll Wheel（Small) YC.JG.MY001402 $38.72	$38.72
17	Battery Fixing Piece_External Roller YC.XJ.QT000247 $7.90	$7.90
18	Spray Tank Fixing Piece_Internal Roller YC.SJ.WS002500 $9.00	$9.00
19	Spray Tank Fixing Piece_Roller Shaft YC.WJ.ZZ002618 $3.05	$3.05
20	Inner Scroll Wheel（Small) YC.JG.ZS004993 $2.50	$2.50
21	Screw T20-PR01450045-035015-5103-N YC.ST.LL000480 $2.50	$2.50
22	Cable Tube YC.JG.JS000034 $11.95	$11.95
23	Screw M40-HC01000100-072042-4203-Y YC.ST.LL000483 $0.95	$0.95
24	Battery Supporting Piece Patch (Left) YC.JG.MQ001385 $0.95	$0.95
25	Extended Battery Supporting Piece (Left) YC.JG.ZS004979 $17.90	$17.90
26	Landing Gear Fixing Piece (Front Left) YC.JG.ZS003465 $69.00	$69.00
27	Cable Clip YC.JG.ZS003589 $1.25	$1.25
28	Weighing Sensor Bracket (Front) YC.JG.ZS003601 $11.95	$11.95
29	Weight Sensor Bracket (Left) YC.JG.ZS003600 $11.95	$11.95
30	Load Sensor Cable Clip YC.JG.ZS002229 $0.95	$0.95
31	Aircraft Arm Fixing Piece (Left) YC.JG.ZS003412 $6.00	$6.00
32	Landing Gear Fixing Piece (Rear Left) YC.JG.ZS003466 $69.00	$69.00
33	Nut (M40-HN068100-5103) YC.ST.LM000092 $2.38	$2.38
34	Screw (M40-HC04000140-070040-5103-N) YC.ST.LL000537 $2.38	$2.38

Can't spot your part? Search by part number on the search page or call 1300 916 075.
