RTK Bracket (T100) YC.JG.ZS006627
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

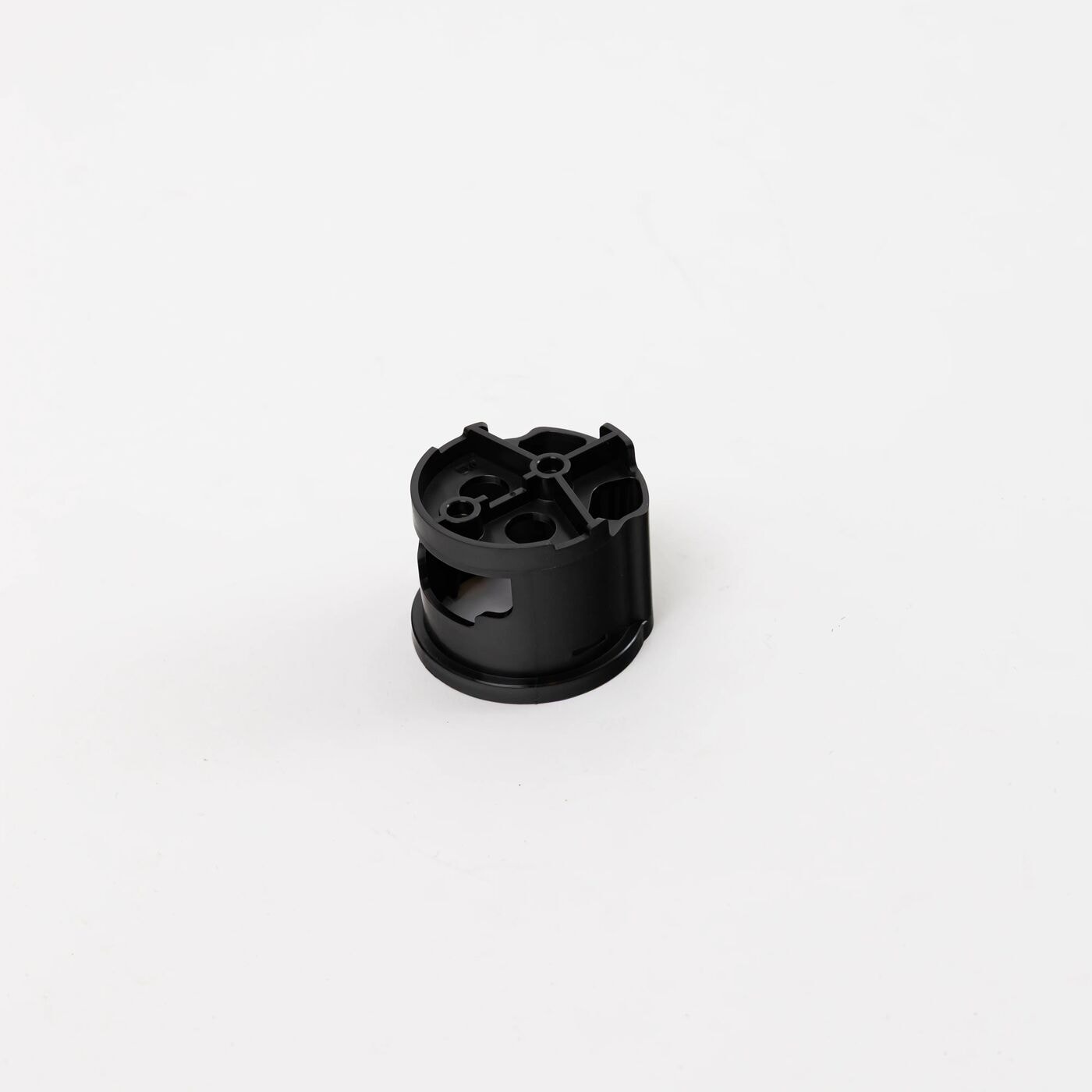

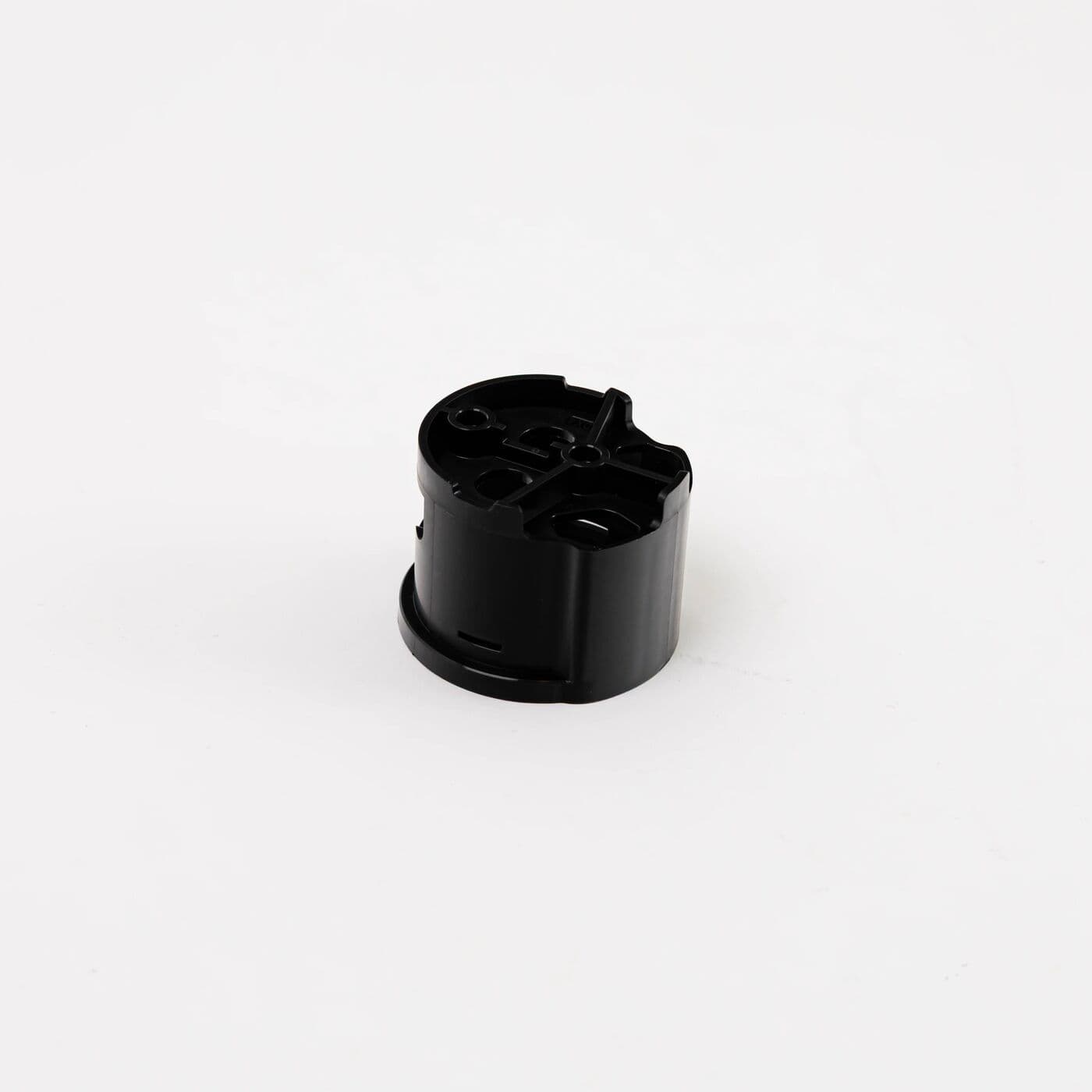

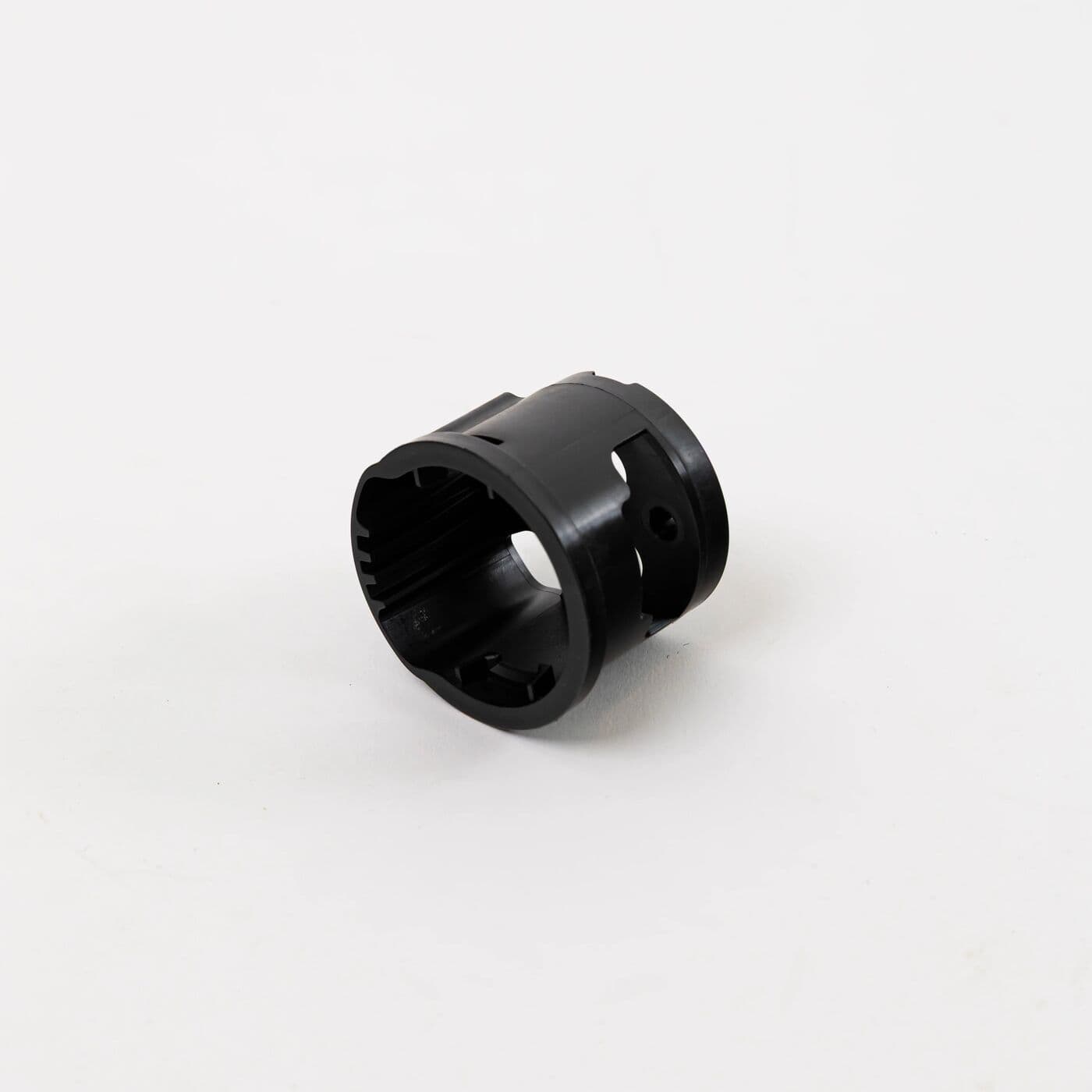

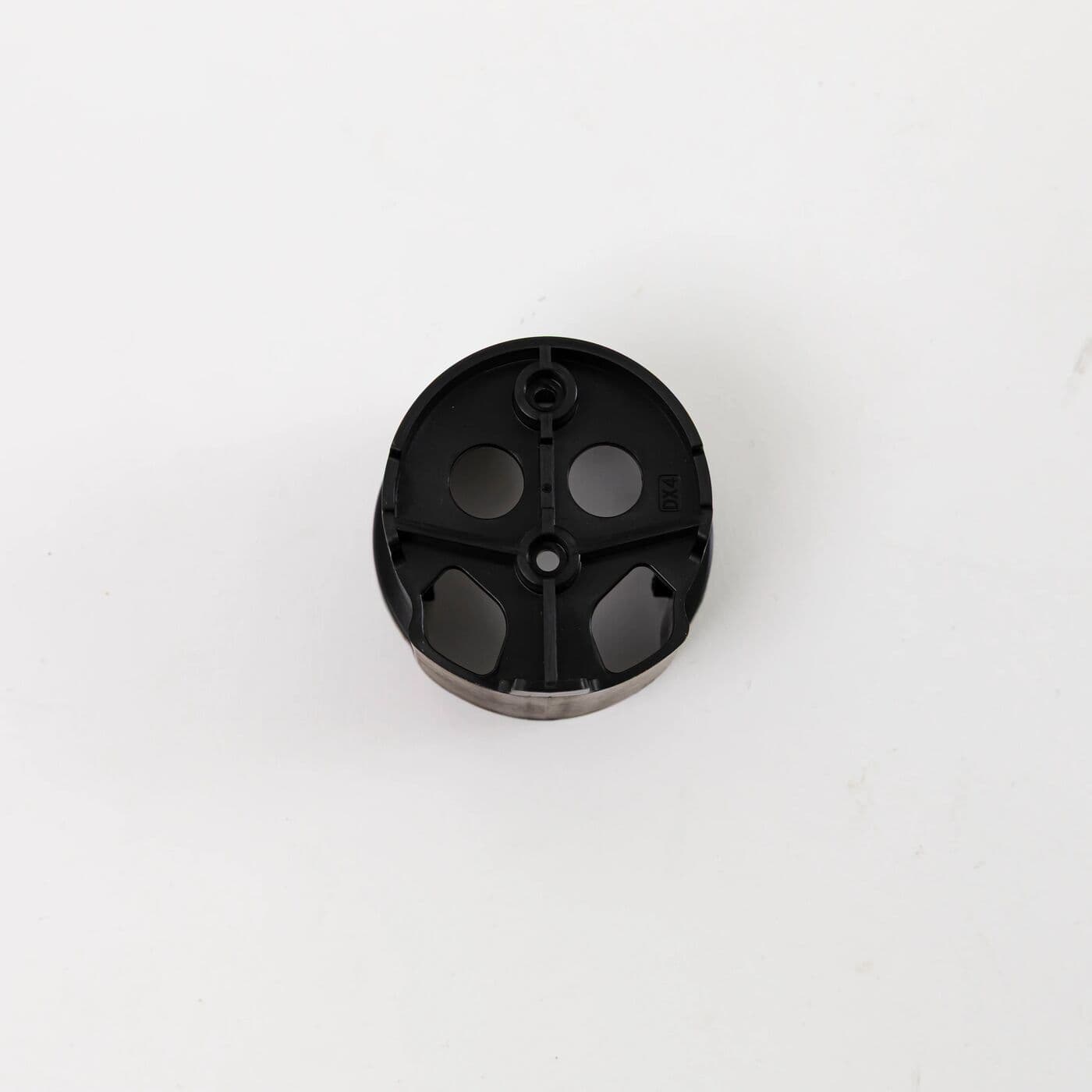

Holding the RTK antenna module in place on the DJI Agras T100's front frame, this bracket is callout 2 on front frame sheet 2, with the screws at callout 1 drawn just above it.
| Part number | YC.JG.ZS006627 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 front frame (sheet 2), callout 2 |
A bracket that has cracked, stripped its screw holes or lets the antenna rock in its seat should be replaced. A loose antenna puts strain on its cable and connector every time the aircraft vibrates.
Refit with undamaged screws (the M30-HC080080-55-85 screws at callout 1 are sold separately), then make sure the RTK rubber ring is seated and the RTK antenna module sits firm with no play.
