DJI

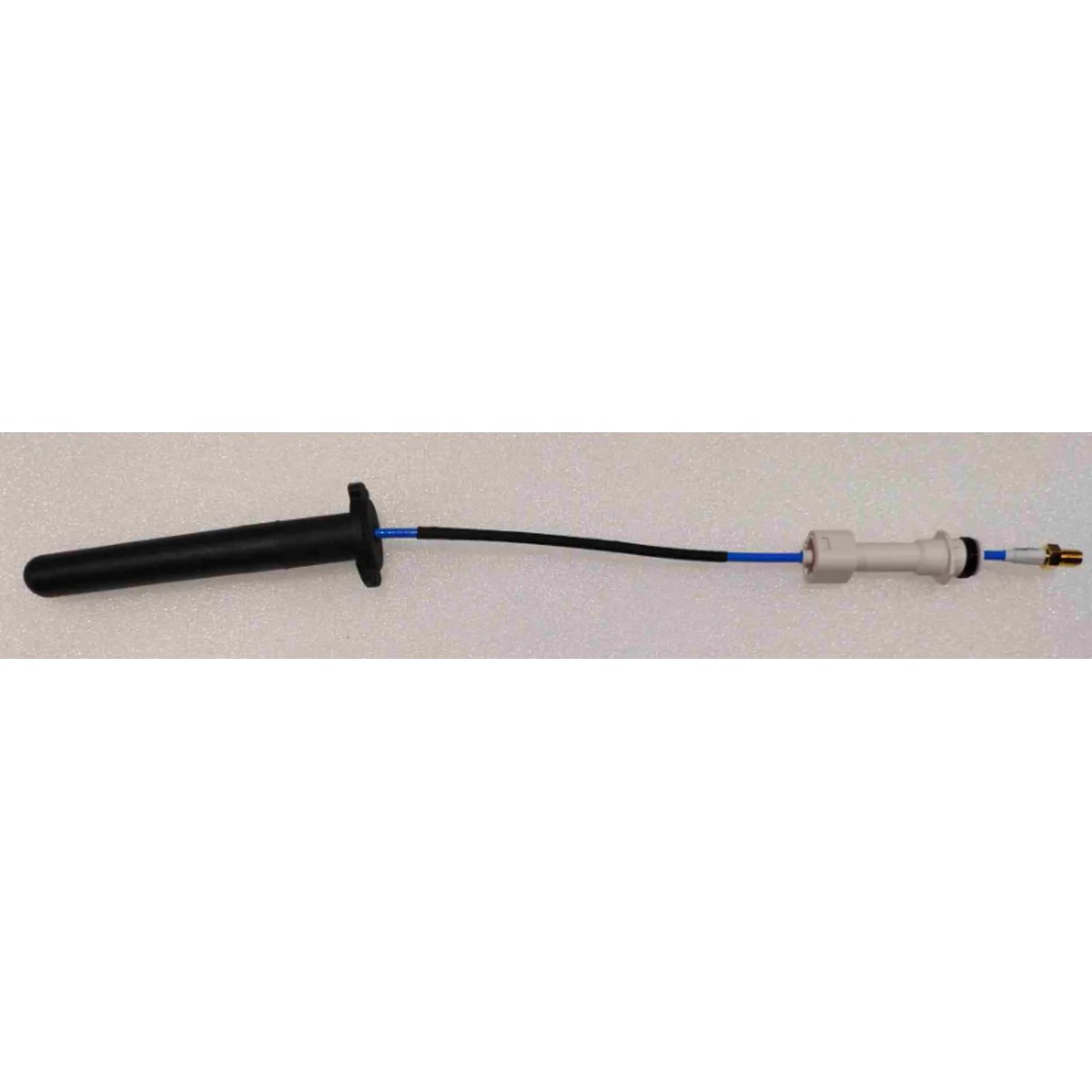

SDR Antenna - Front (T100/T70P) YC.DZ.AA000462
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Mounted in the front frame, this SDR antenna carries part of the radio link between a DJI Agras T100 or T70P and its remote controller.
| Part number | YC.DZ.AA000462 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 front frame (sheet 2), callout 12; T70P front frame (sheet 1), callout 3 |
Suspect it when the link starts dropping out at distances that used to be reliable, or after a knock to the nose of the airframe that damages the antenna or strains its lead. Rule out the remote controller's own antennas first, and remember that both aircraft also carry a rear SDR antenna under a different code, so make sure the front one is the unit at fault.
When fitting, follow the original cable path, keep the lead clear of shell edges where it could be pinched, and check the connection is fully seated before the covers go back on.
