DJI
Front Radar Base Bracket (T100) YC.JG.ZS006690
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

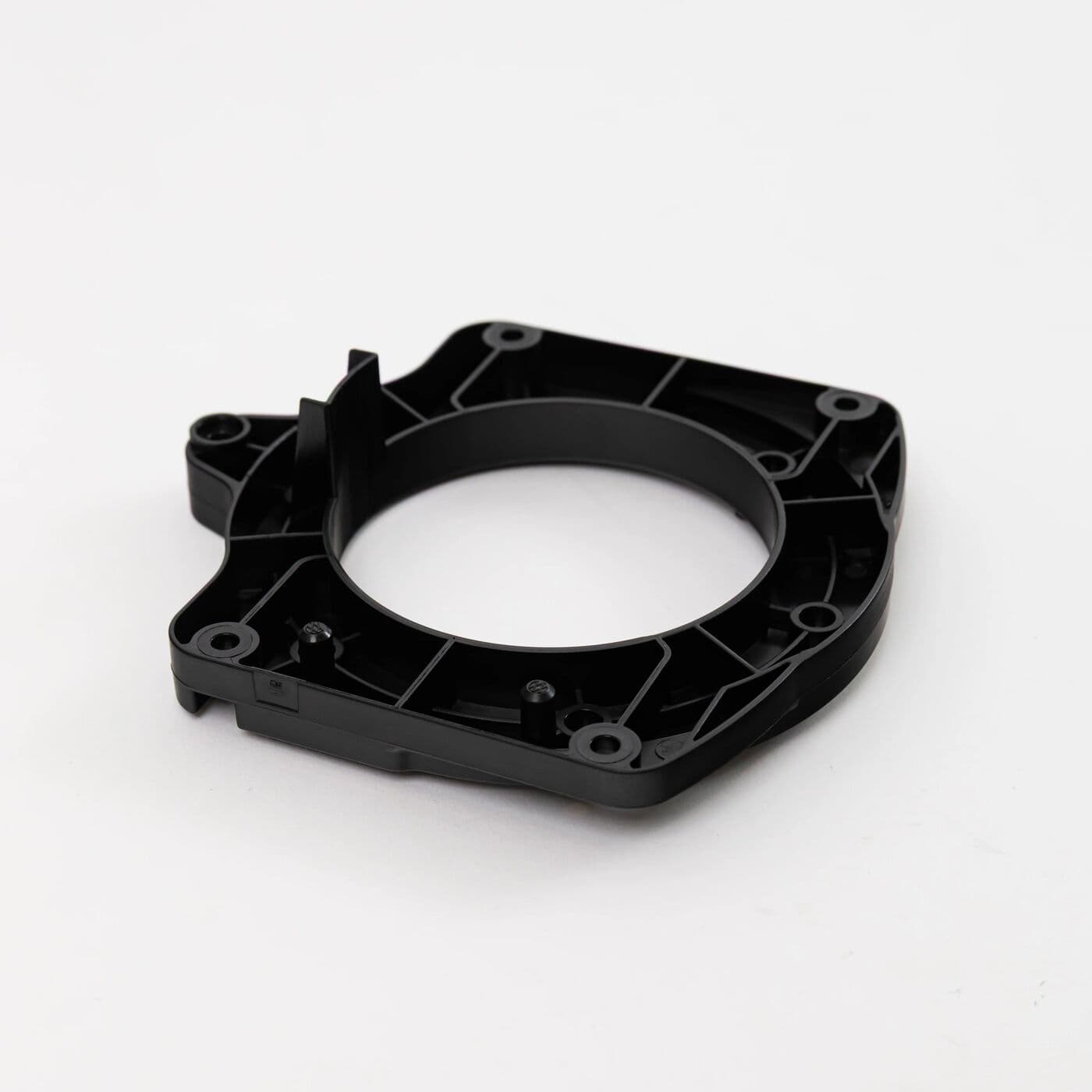

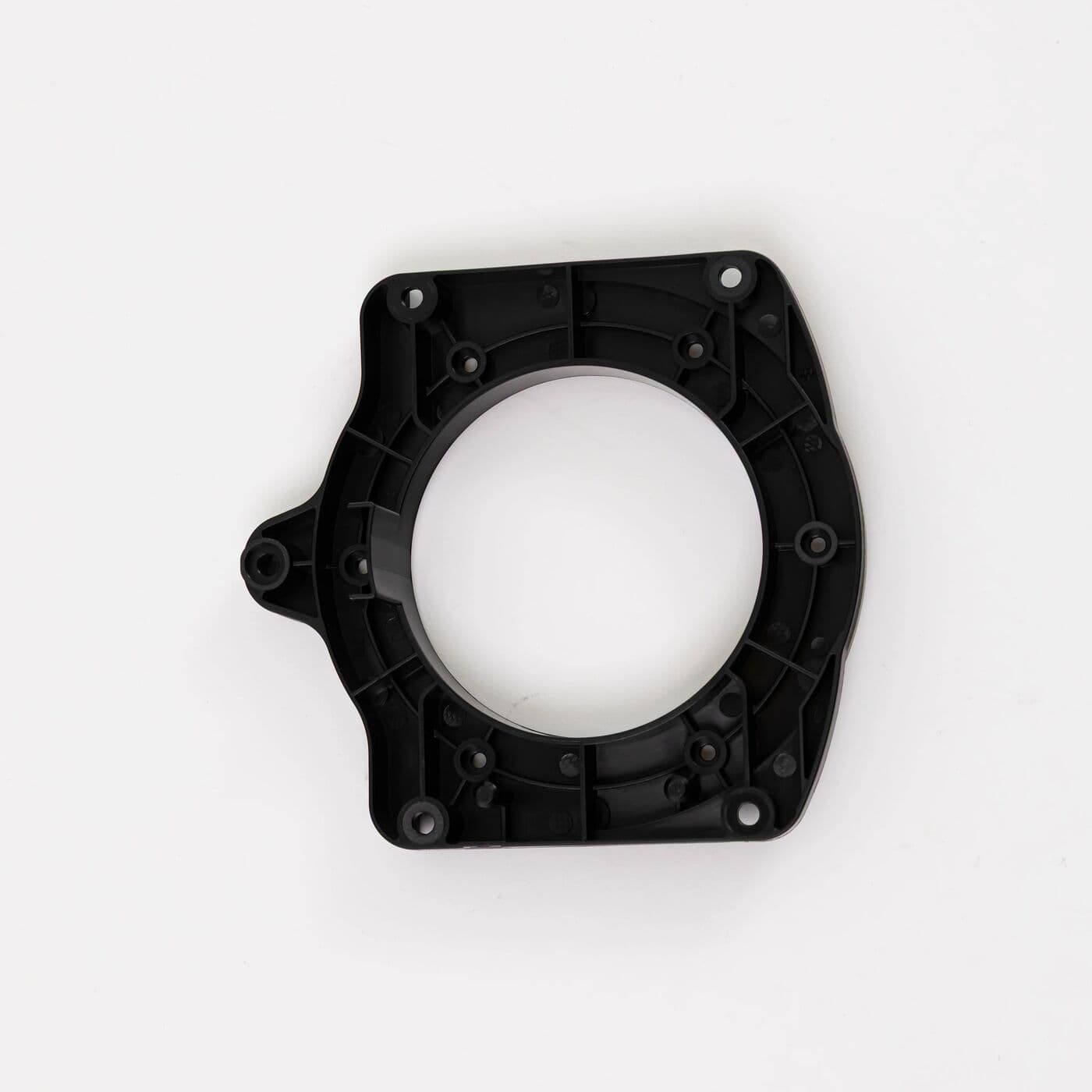

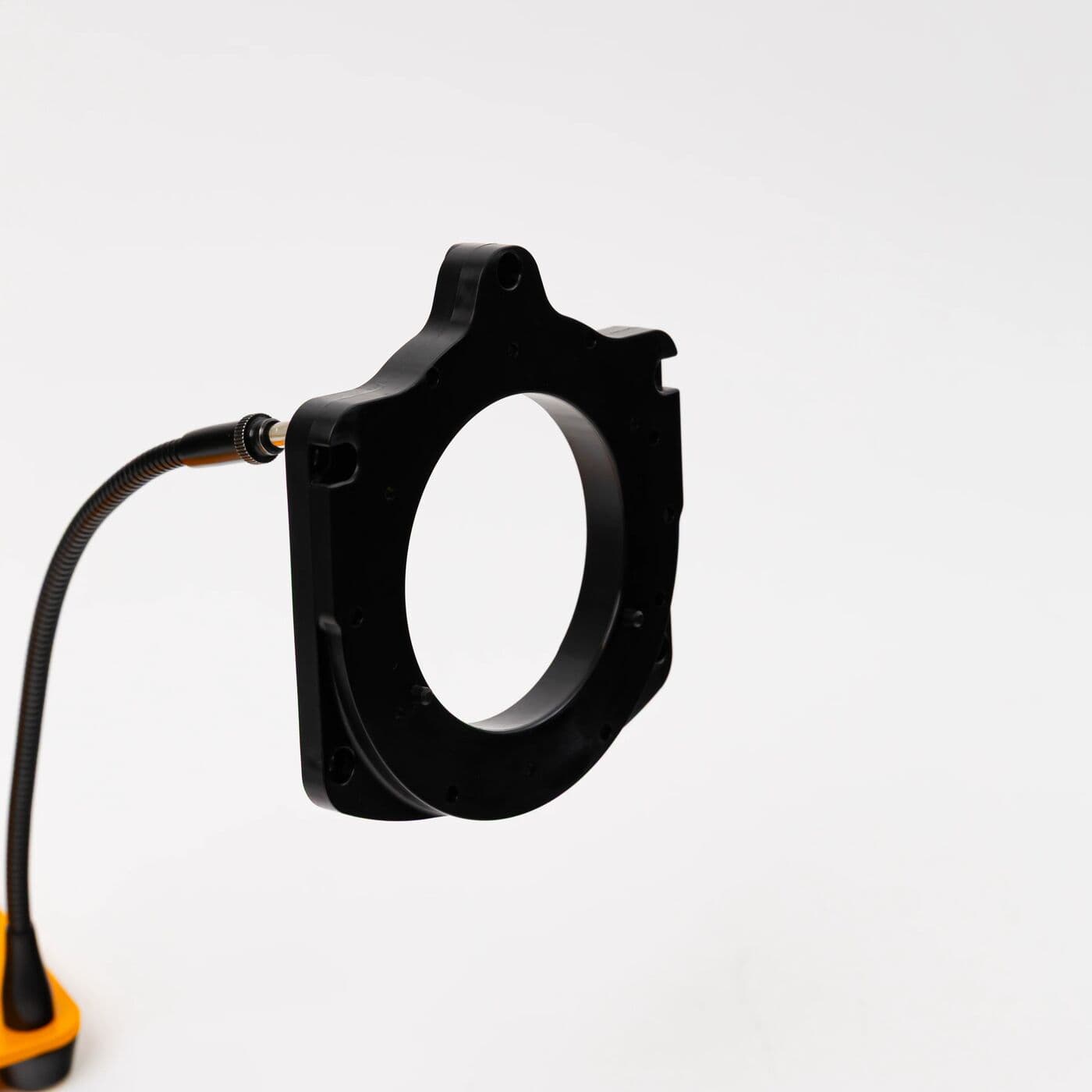

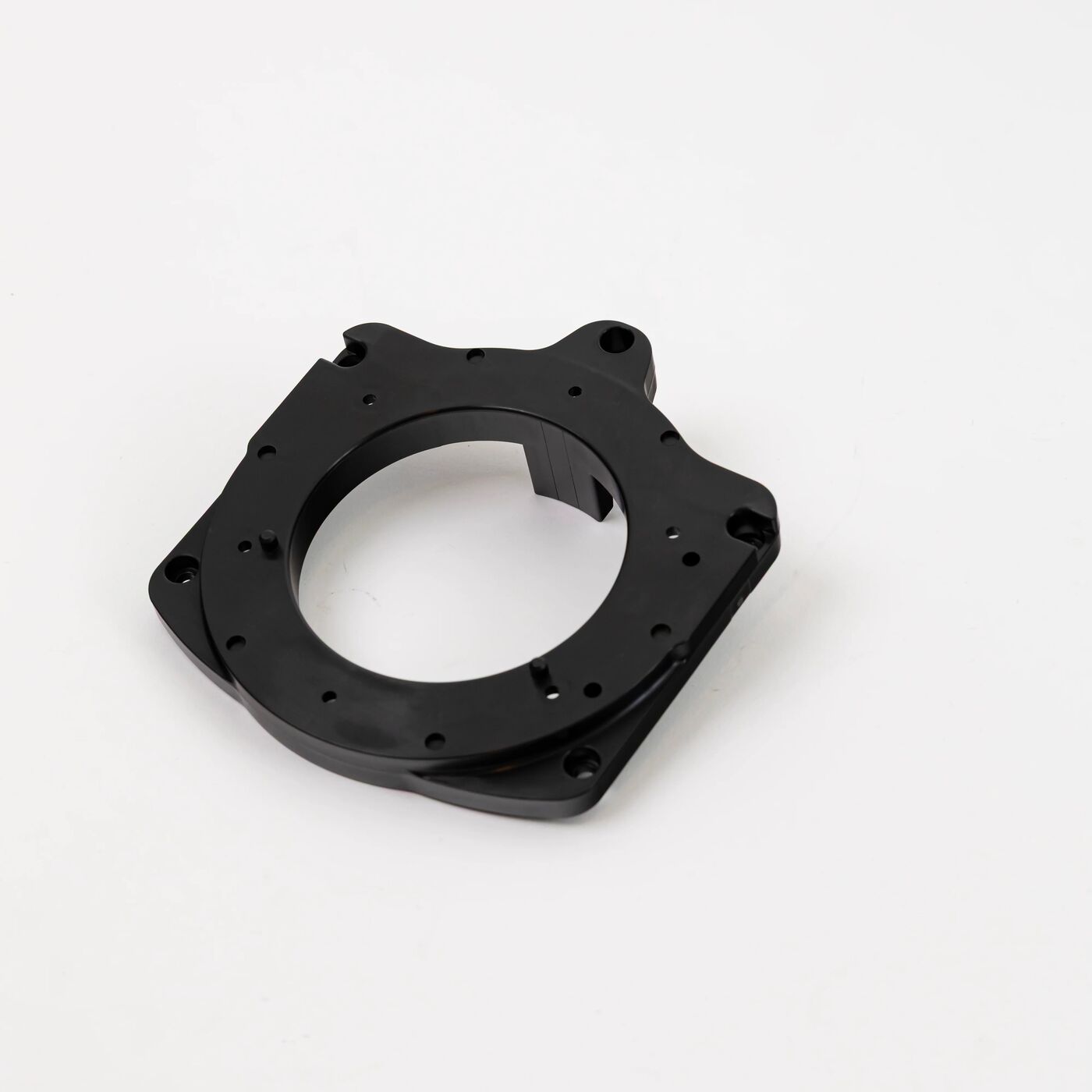

Mounting bracket that forms the base for the front radar module on the DJI Agras T100, located in the front frame and shown on sheet 2 of the parts diagram.
| Part number | YC.JG.ZS006690 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 front frame (sheet 2), callout 22 |
Nose-first contact with a tree or post can bend or crack the base bracket, leaving the radar loose or aimed off line. After any impact, look for cracks around the screw holes and for twist in the bracket. Replace it rather than trying to straighten it.
When refitting, make sure the front radar module sits square on the new bracket, and check the front radar signal cable was not stretched or pinched in the same knock.
