DJI
RTK Sealing Ring (T100) YC.JG.MY001919
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

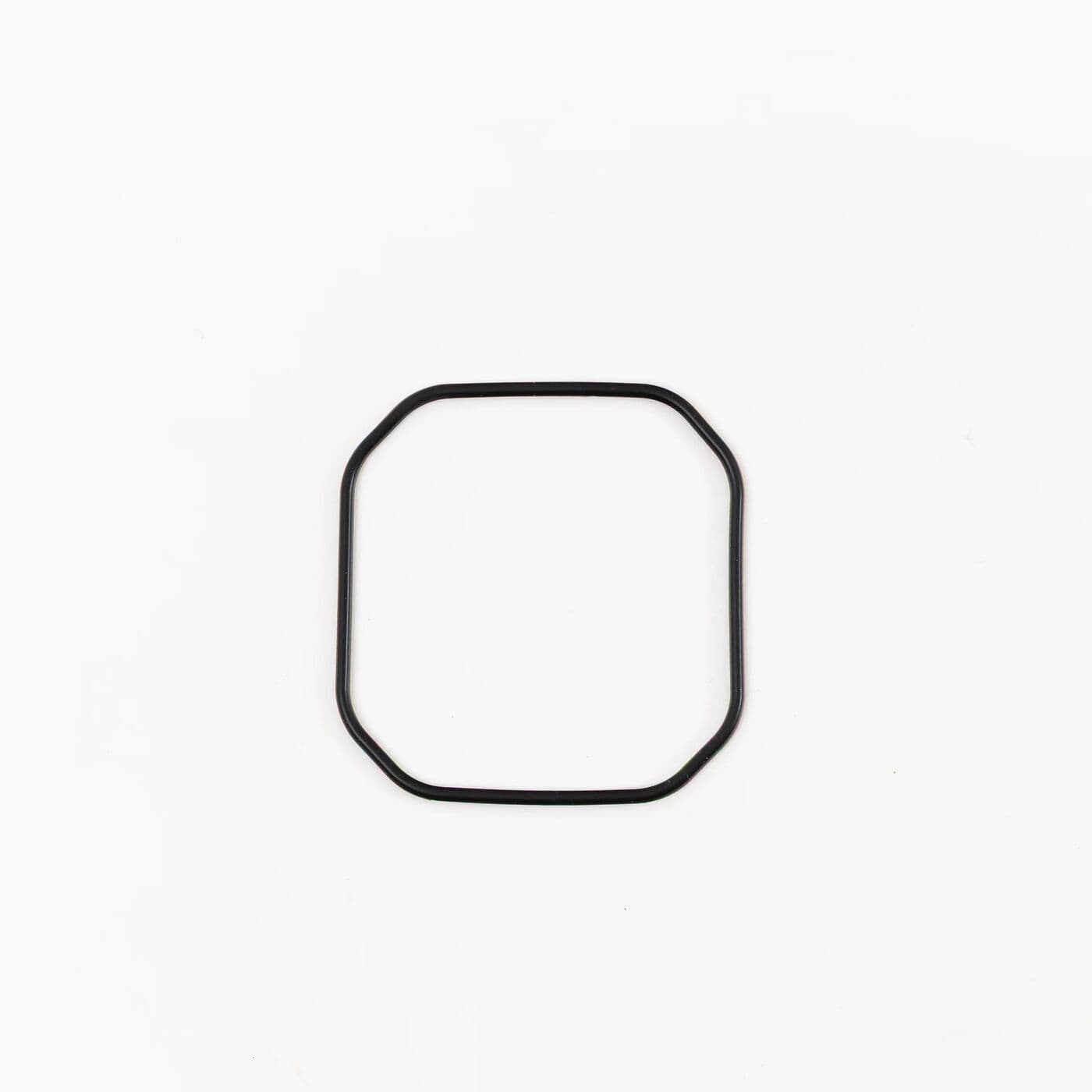

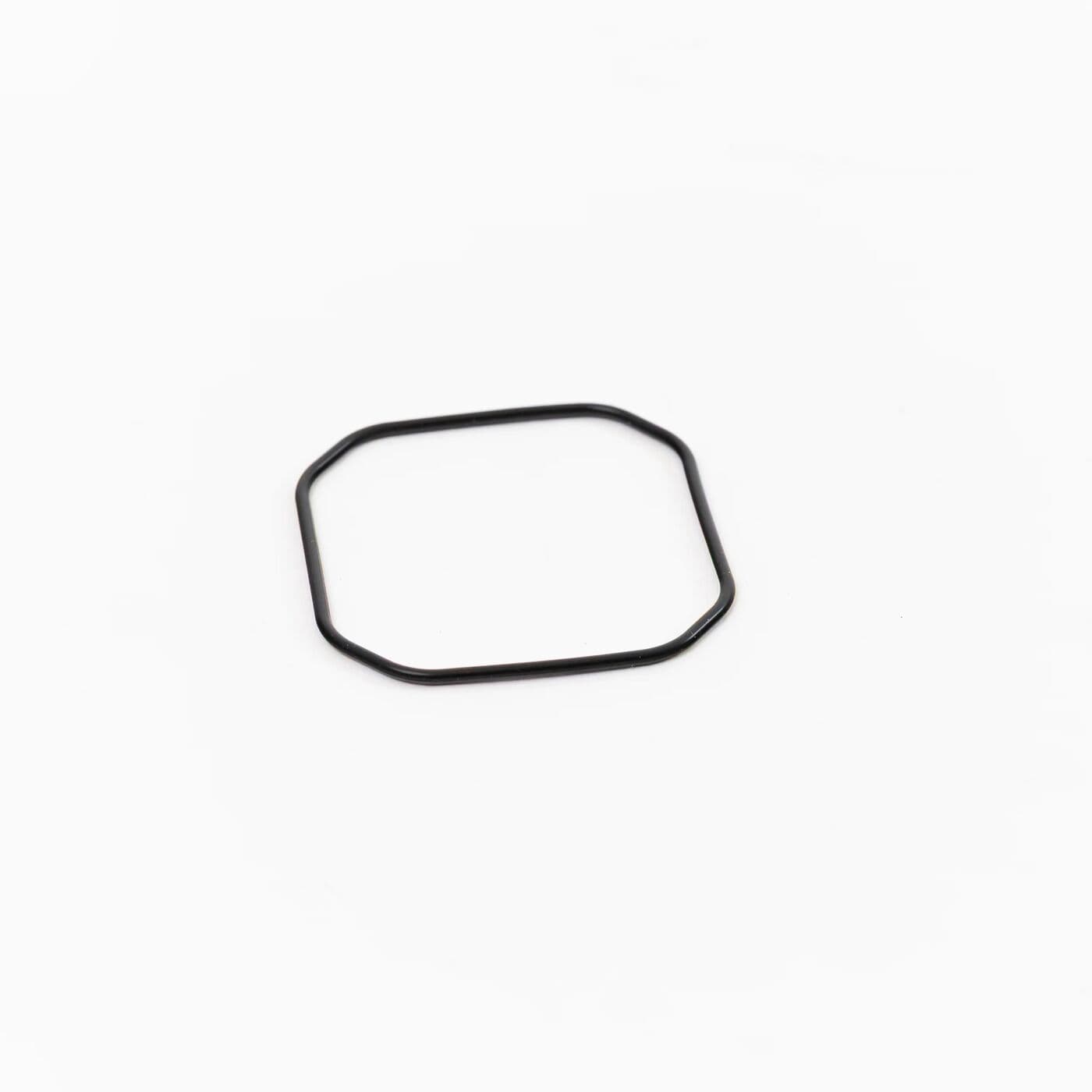

A sealing ring from the RTK antenna module of the DJI Agras T100. EE Group's T100 parts breakdown lists it as item 3-3, a sub-part of the RTK antenna module at callout 3 on front frame sheet 2, next to the RTK lower cover (3-2), so it carries no number of its own on the photo.
| Part number | YC.JG.MY001919 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 front frame (sheet 2), unnumbered (part of callout 3) |
Replace this ring when it is nicked, twisted, flattened or stuck to the old parts, and as a matter of course any time the RTK antenna module is opened. A tired ring lets water and chemical creep into the antenna.
Clean both mating faces before fitting and make sure the ring sits evenly without rolling. It differs from the RTK rubber ring at callout 4, and the RTK lower cover is sold separately. The T70P and T25P use the same RTK antenna module, but their parts lists do not break it down, so this ring is listed for the T100 only.
