DJI

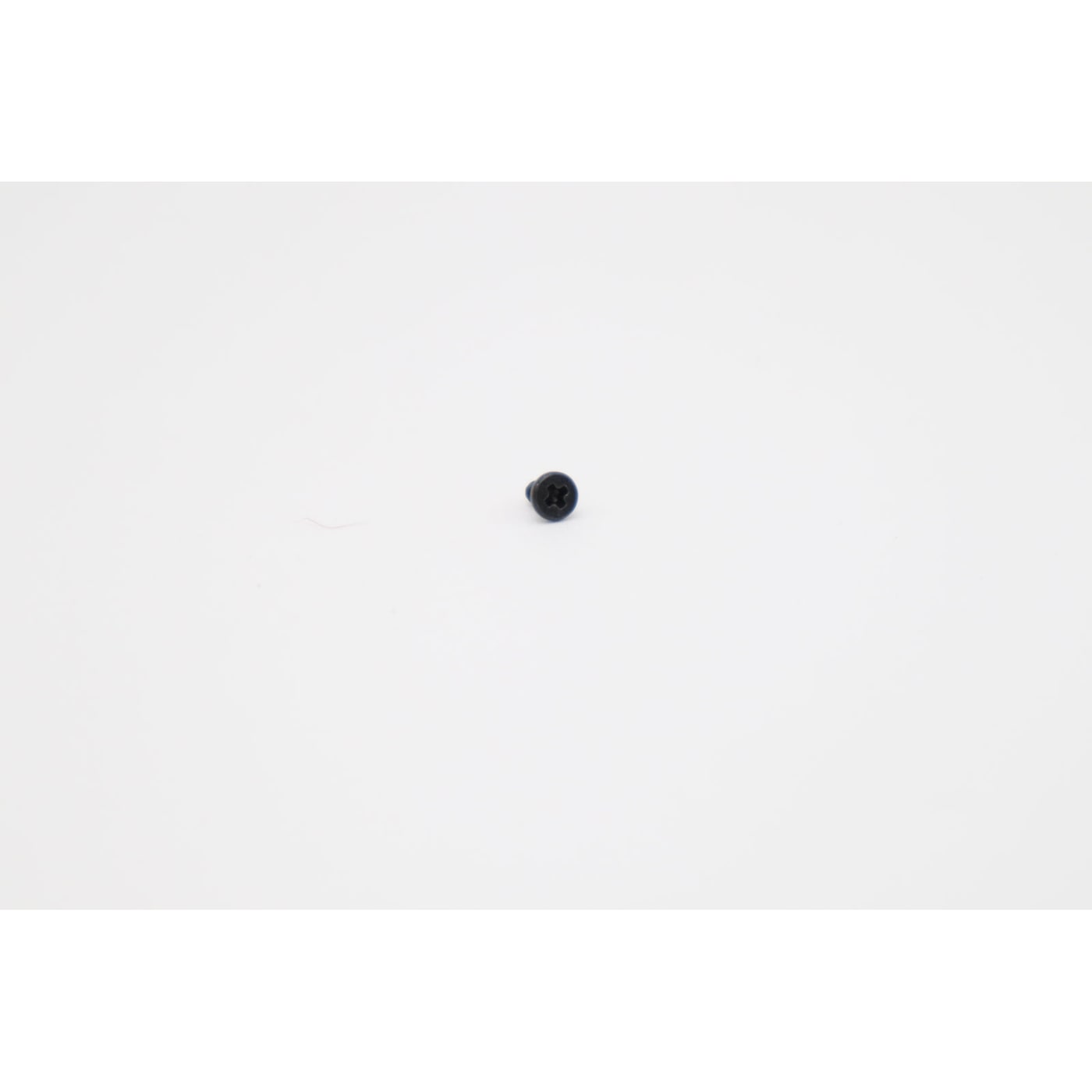

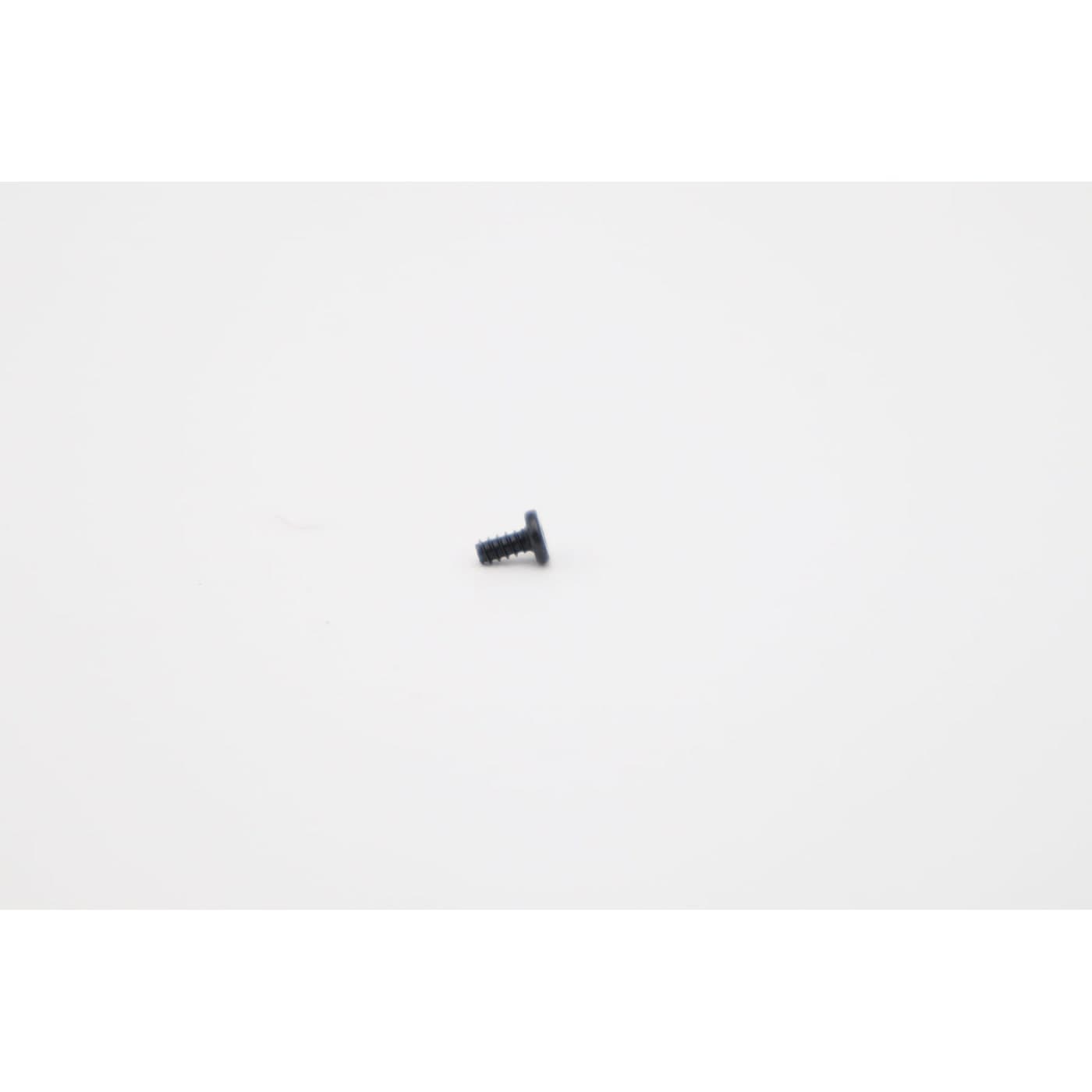

Screw T20-PC00400040-040010-0323-N (T100/T70P/T25P) YC.WJ.LL000396
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Coded T20-PC00400040-040010-0323-N, this small screw is used at the barometer board on the DJI Agras T70P and T25P, and inside the RTK antenna module on the T100.
| Part number | YC.WJ.LL000396 |
| Fits | DJI Agras T100, T70P, T25P |
| Parts diagram | T70P cable distribution board, callout 4; T25P aerial electronics module, callout 12; T100 front frame (sheet 2), unnumbered (part of callout 3) |
On the T70P and T25P sheets it is listed next to the barometer board and its protection foam, so it usually comes out when the barometer is serviced. On the T100, EE Group's parts breakdown lists it as item 3-4 of the RTK antenna module, alongside the RTK lower cover and RTK sealing ring, so it has no number of its own on the photo. It can strip if it goes in crooked, so start it by hand before tightening.
The T20-PC00400040-040010-5103-N screw, YC.ST.LL000236, is a different part despite the similar code: it is item 3-1 in the same T100 module and is also used on the T50 cable distribution board. If the barometer is open, fit fresh barometer protection foam while you are there.
