DJI
RTK Lower Cover (T100) YC.JG.ZS006626
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

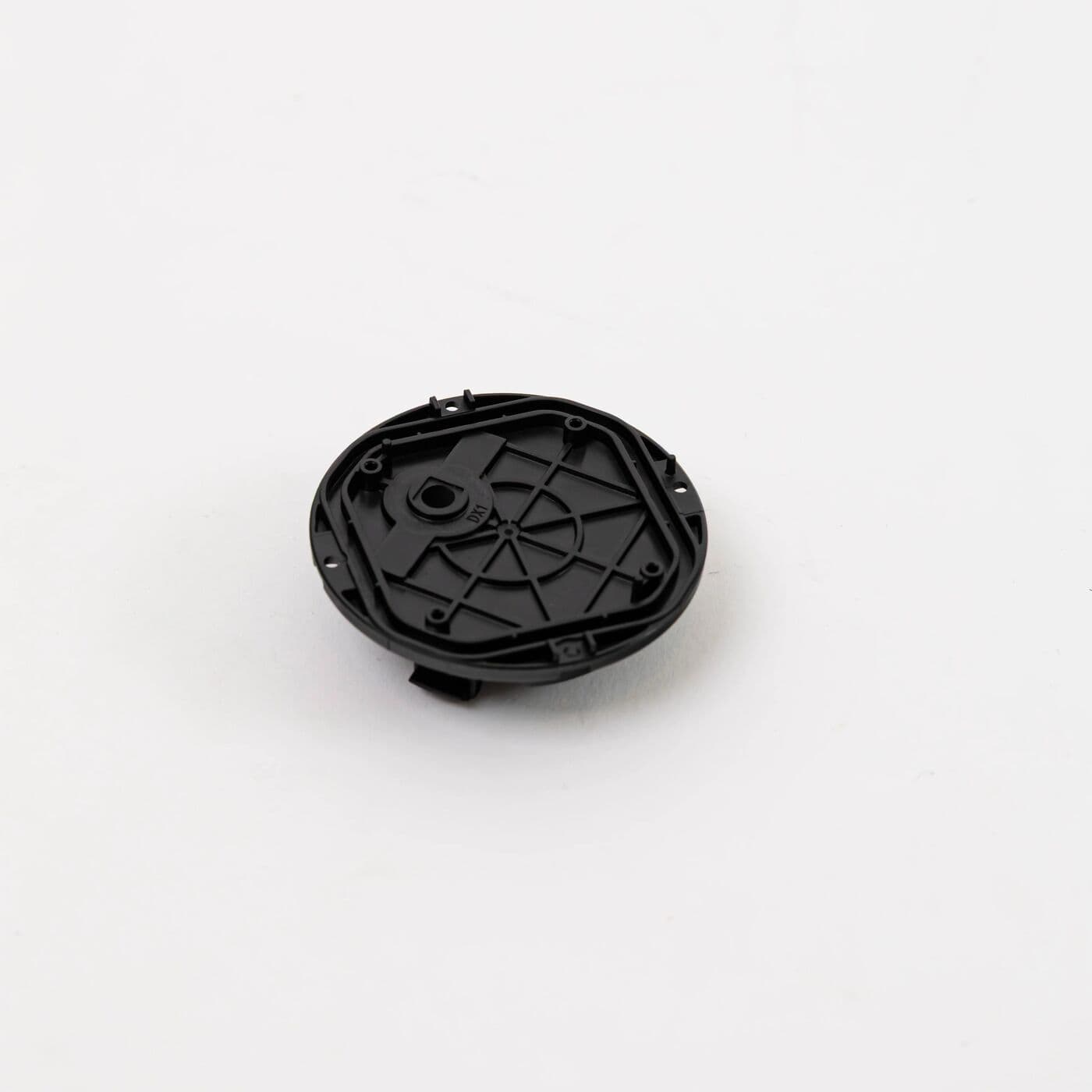

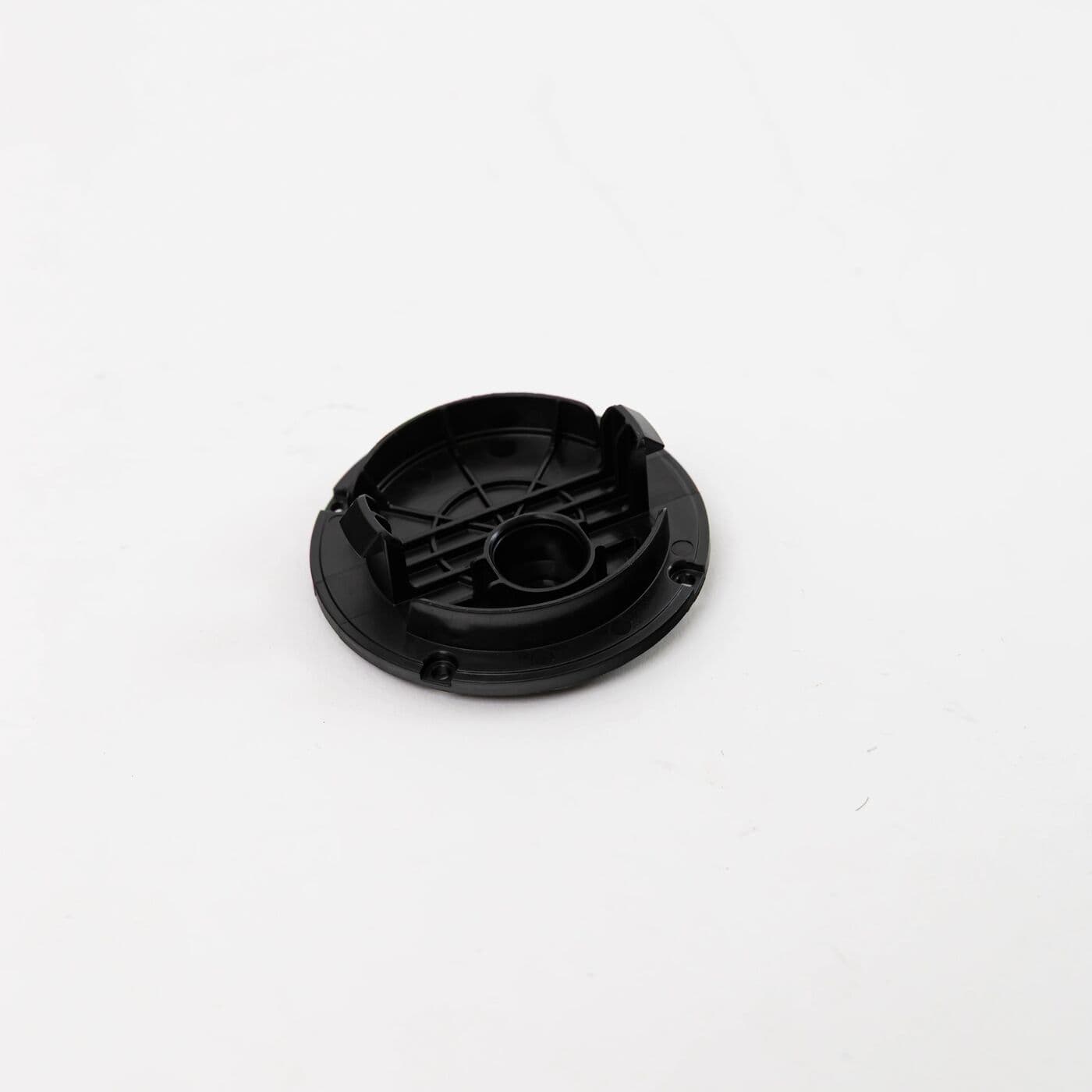

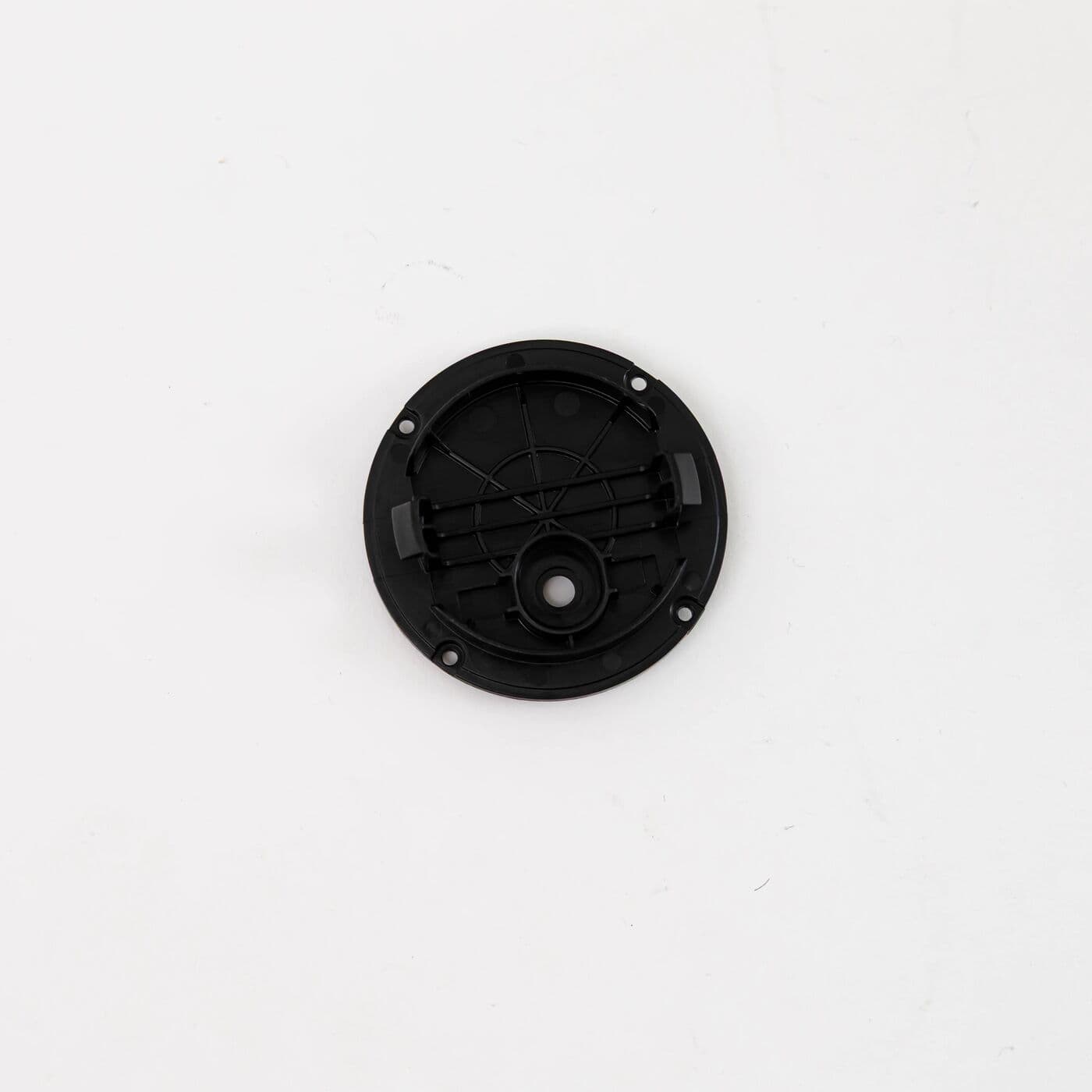

This is the lower cover of the RTK antenna module on the DJI Agras T100. EE Group's T100 parts breakdown lists it as item 3-2, a sub-part of the RTK antenna module at callout 3 on front frame sheet 2, so it carries no number of its own on the photo.
| Part number | YC.JG.ZS006626 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 front frame (sheet 2), unnumbered (part of callout 3) |
Renew the cover if it is cracked, has lost a fixing point or went missing while the antenna was apart. Whenever it comes off, inspect the RTK sealing ring (item 3-3, listed under the same module) for nicks or flattening and renew it if in doubt, since a worn seal lets water into the antenna.
The T70P and T25P use the same RTK antenna module, but their parts lists do not break it down, so this cover is listed for the T100 only. If you need one for either of those aircraft, send us a photo of the old part and we can help identify it.
