DJI

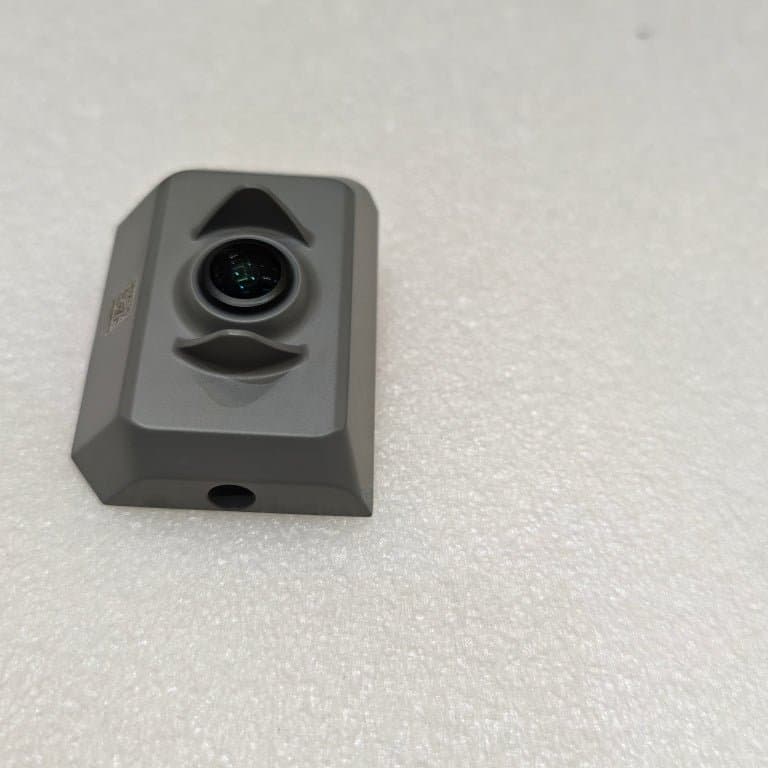

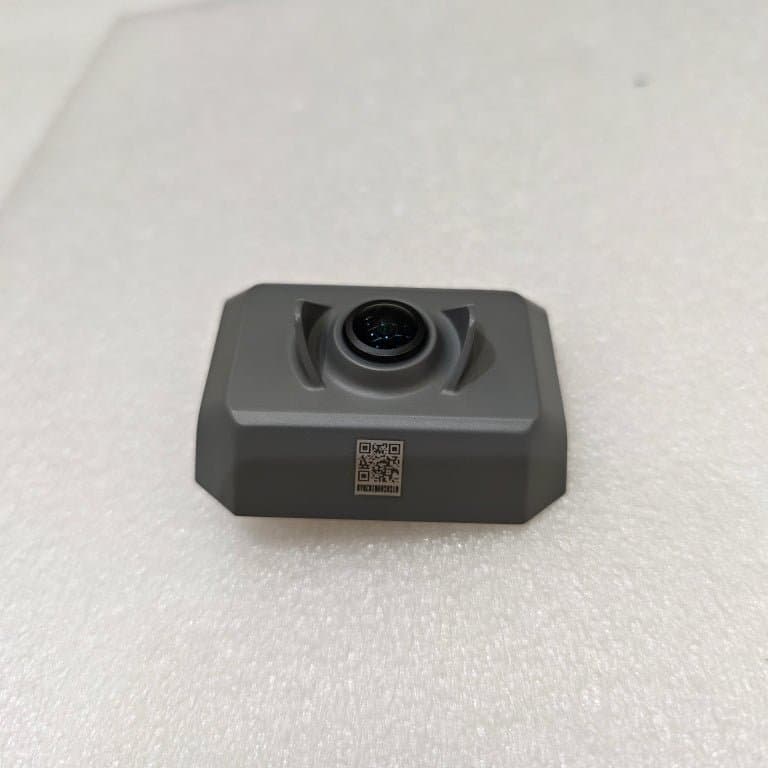

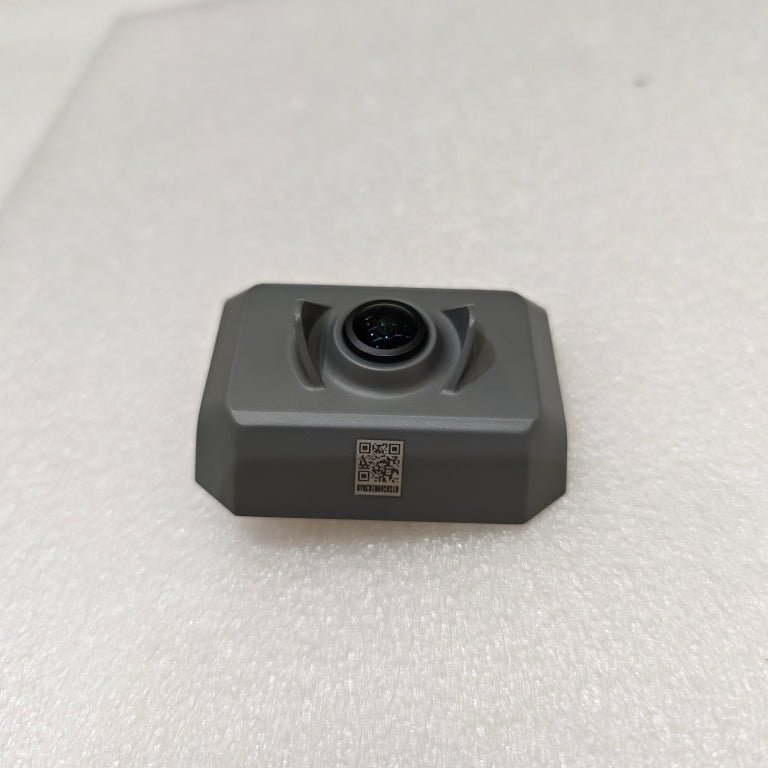

FPV Module (T100/T70P) BC.AG.SS001021
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
The first-person-view camera unit for the DJI Agras T100 and T70P, mounted at the front of the airframe. Both aircraft show this FPV module on sheet 2 of their front frame diagrams.
| Part number | BC.AG.SS001021 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 front frame (sheet 2), callout 18; T70P front frame (sheet 2), callout 26 |
A blank or frozen FPV picture is not always the camera's fault. Inspect the FPV signal cable and its plugs before ordering, or have the fault confirmed at our Horsham or Manjimup workshop. A cracked lens window or a module knocked out of line in a nose strike does call for a new one.
On the T100 sheet it is listed between the FPV signal cable (callout 16) and the front radar signal cable (callout 19). On the T70P sheet the FPV signal cable is callout 28 and the front radar module callout 29. Seat the new module squarely so the picture is not tilted.
