DJI

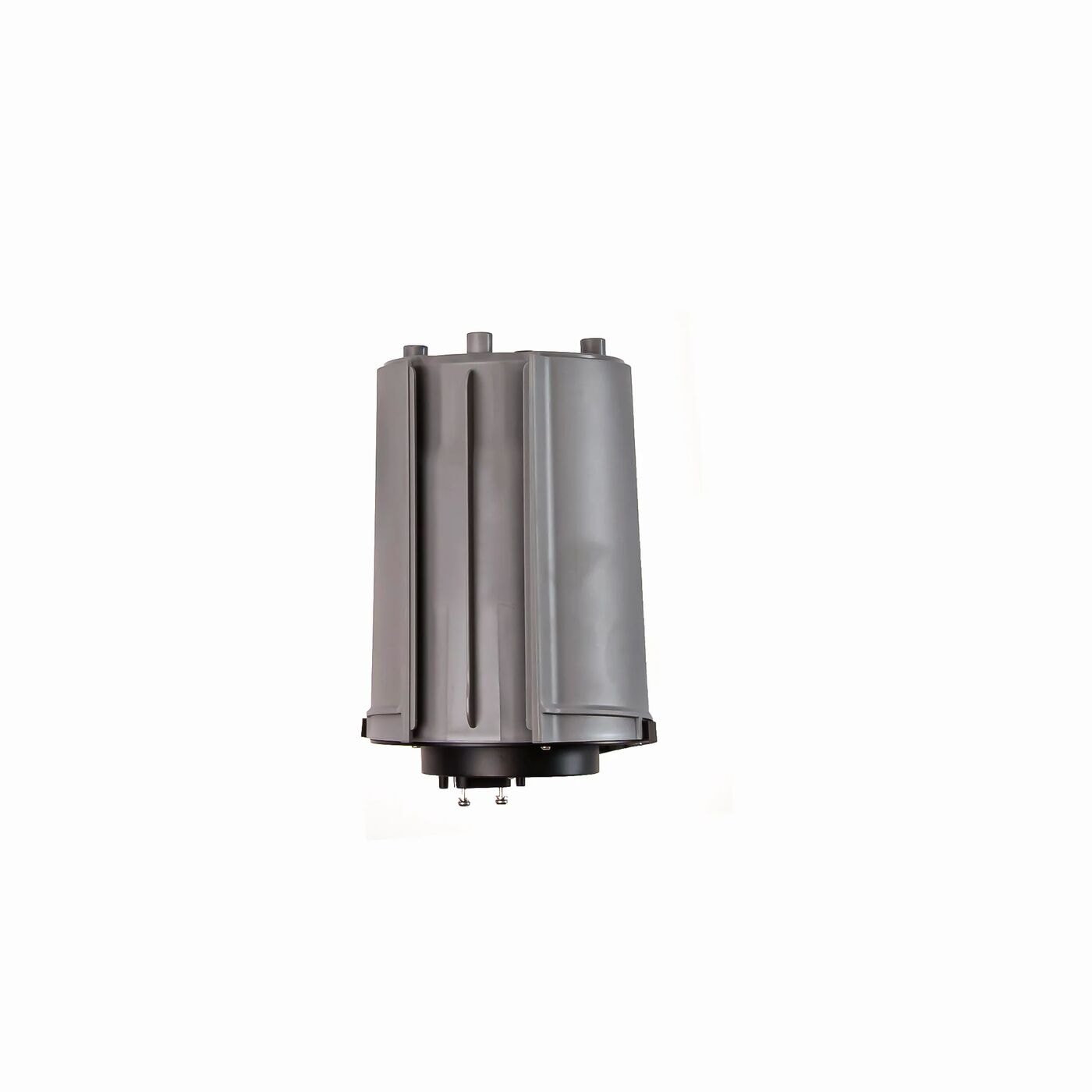

Front Radar Module - Overseas (T100) BC.AG.SS001167
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
The DJI Agras T100 carries this front radar module in its nose, as one of the sensors the aircraft uses to pick up obstacles. DJI rates its coverage at 360° horizontally and ±45° vertically.
| Part number | BC.AG.SS001167 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 front frame (sheet 2), callout 24 |
Sitting at the front of the aircraft, it is one of the parts most exposed in a frontal strike. Before ordering, rule out simpler causes of radar warnings: clean the radar face, then inspect the front radar signal cable and the front radar base bracket the module mounts on. Keep the connector clean and dry while it is apart.
DJI uses the Overseas label for the version built for aircraft sold outside mainland China, and Australian parts lists carry no other T100 front radar module code, so this is the one for T100s sold here. The T70P's front radar module is a separate part with its own code, so make sure you are ordering for a T100.
