DJI
RTK Antenna Module (T100/T70P/T25P) BC.AG.SS001034
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

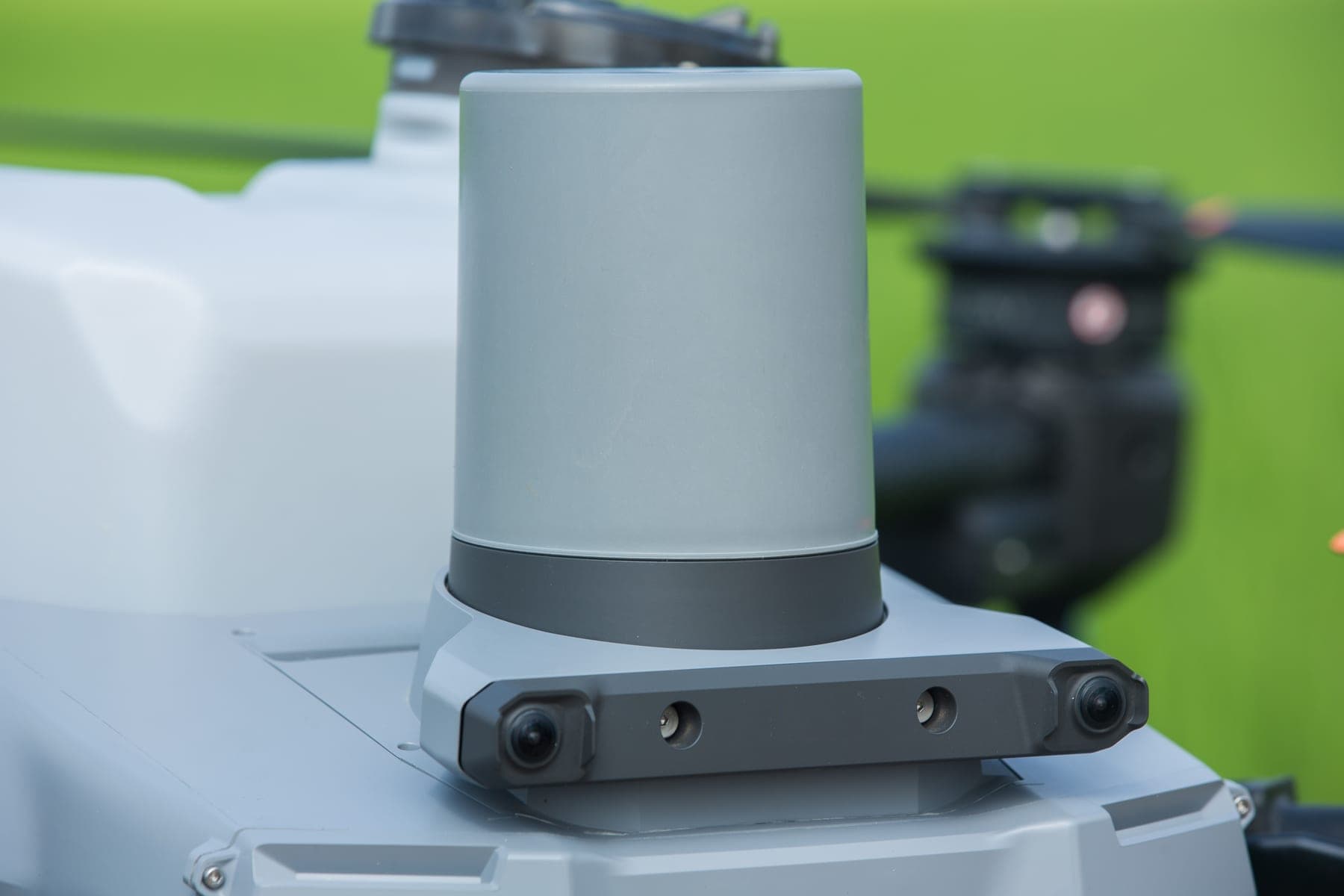

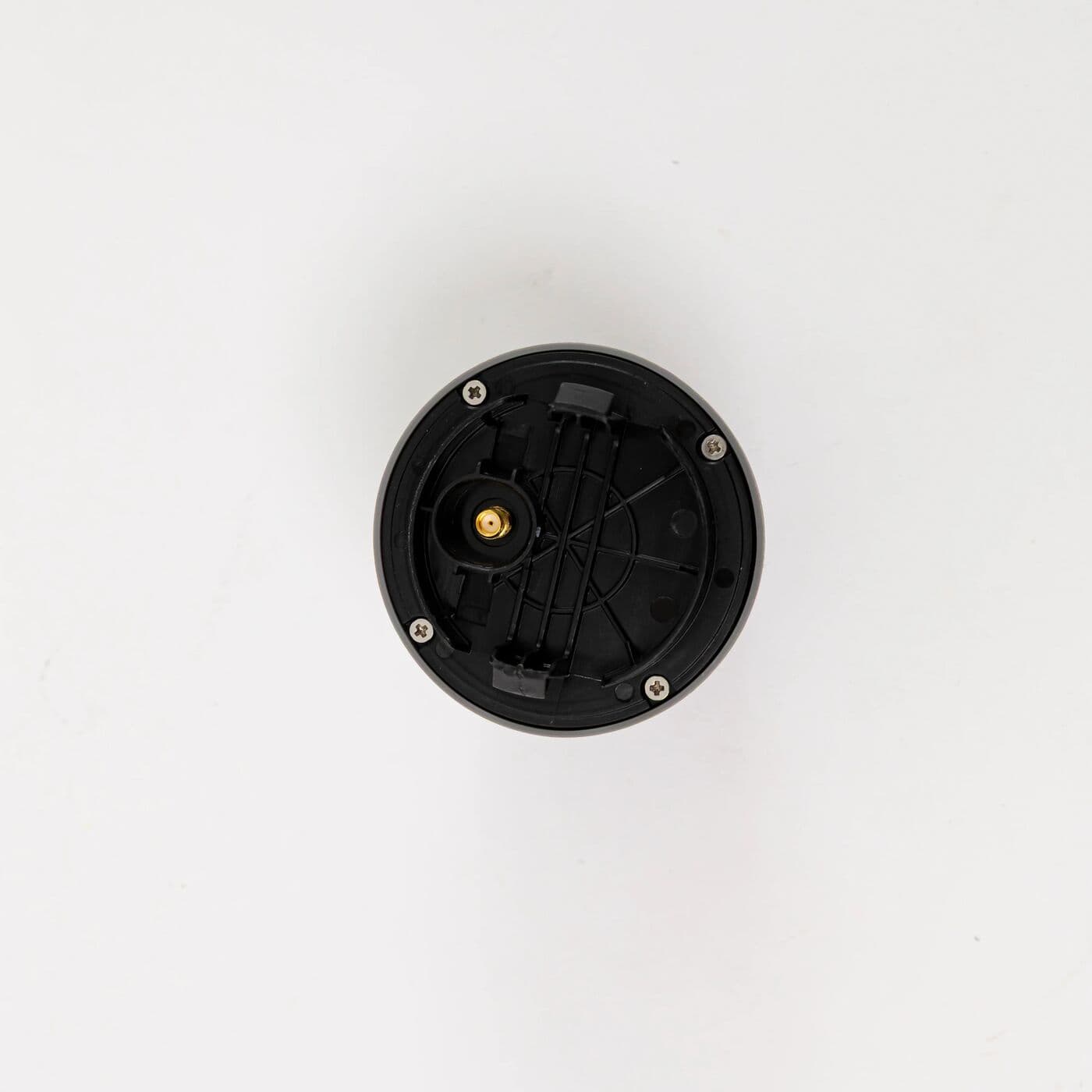

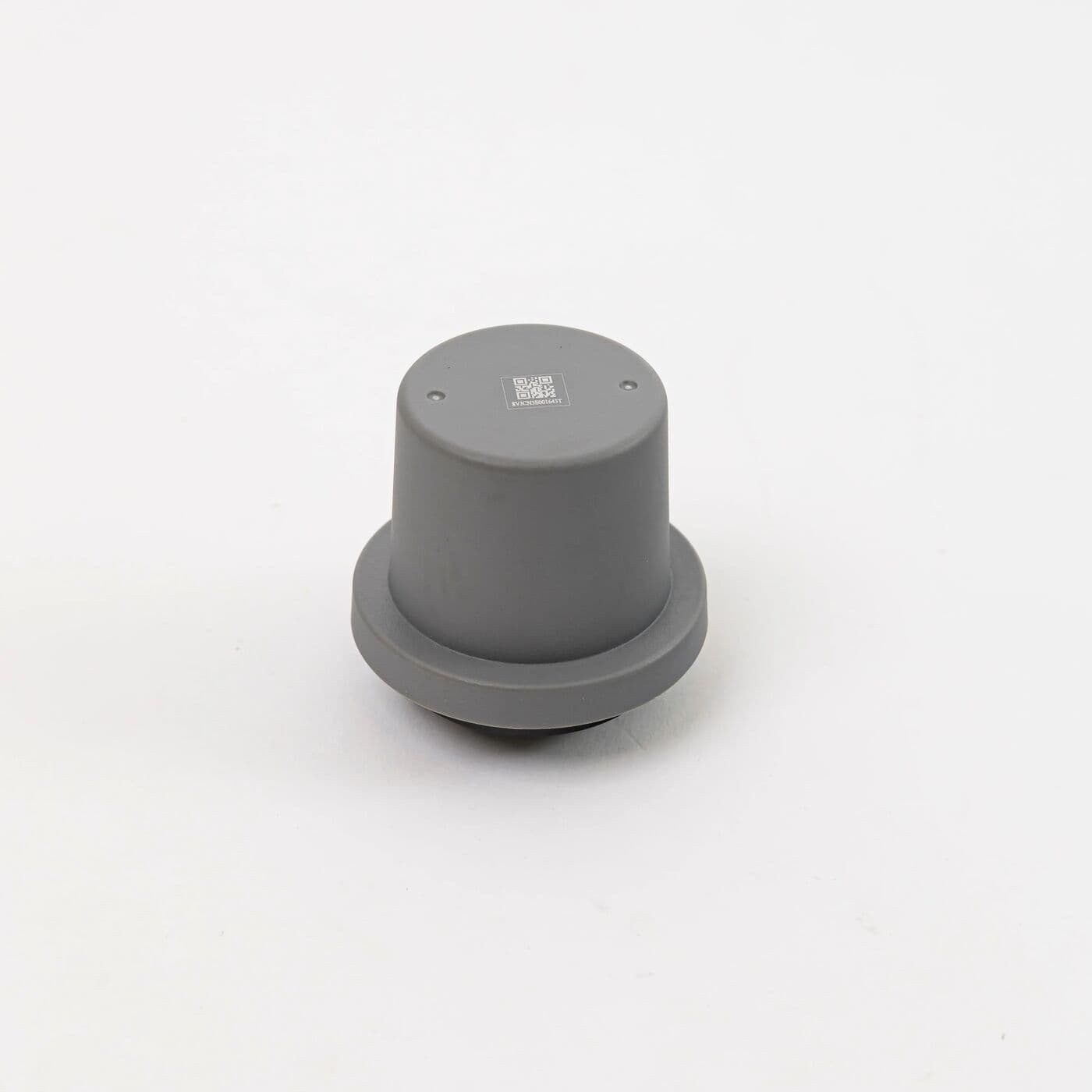

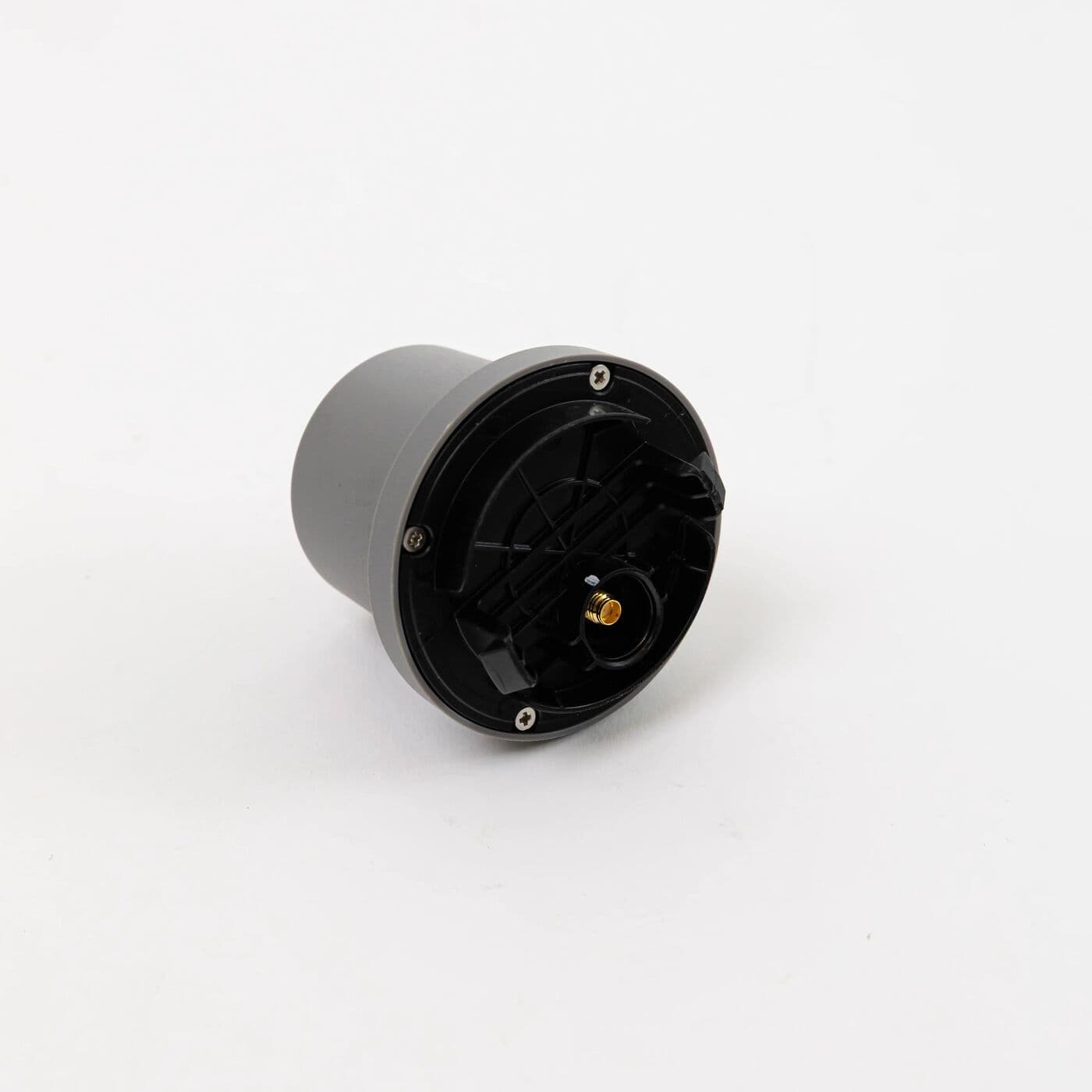

Satellite positioning on the DJI Agras T100, T70P and T25P comes through this RTK antenna module, which receives GNSS signals so the aircraft can hold centimetre-level accuracy when RTK corrections are available from a base station or network.
| Part number | BC.AG.SS001034 |
| Fits | DJI Agras T100, T70P, T25P |
| Parts diagram | T100 front frame (sheet 2), callout 3; T70P front frame (sheet 1), callout 6; T25P rear frame, callout 19 |
Suspect the antenna when the aircraft struggles to reach an RTK fix in open country where it used to lock on, when the app reports an RTK antenna fault, or after the housing has cracked in a strike. Rule out the correction source first by checking the base station or network connection.
On the T100, refit the RTK rubber ring and RTK sealing ring in good condition and check the RTK bracket is sound. On any model, confirm a fixed RTK status in the app before starting a job.
