Quad-Fisheye Vision Sensor Module (T100) BC.AG.SS001093
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

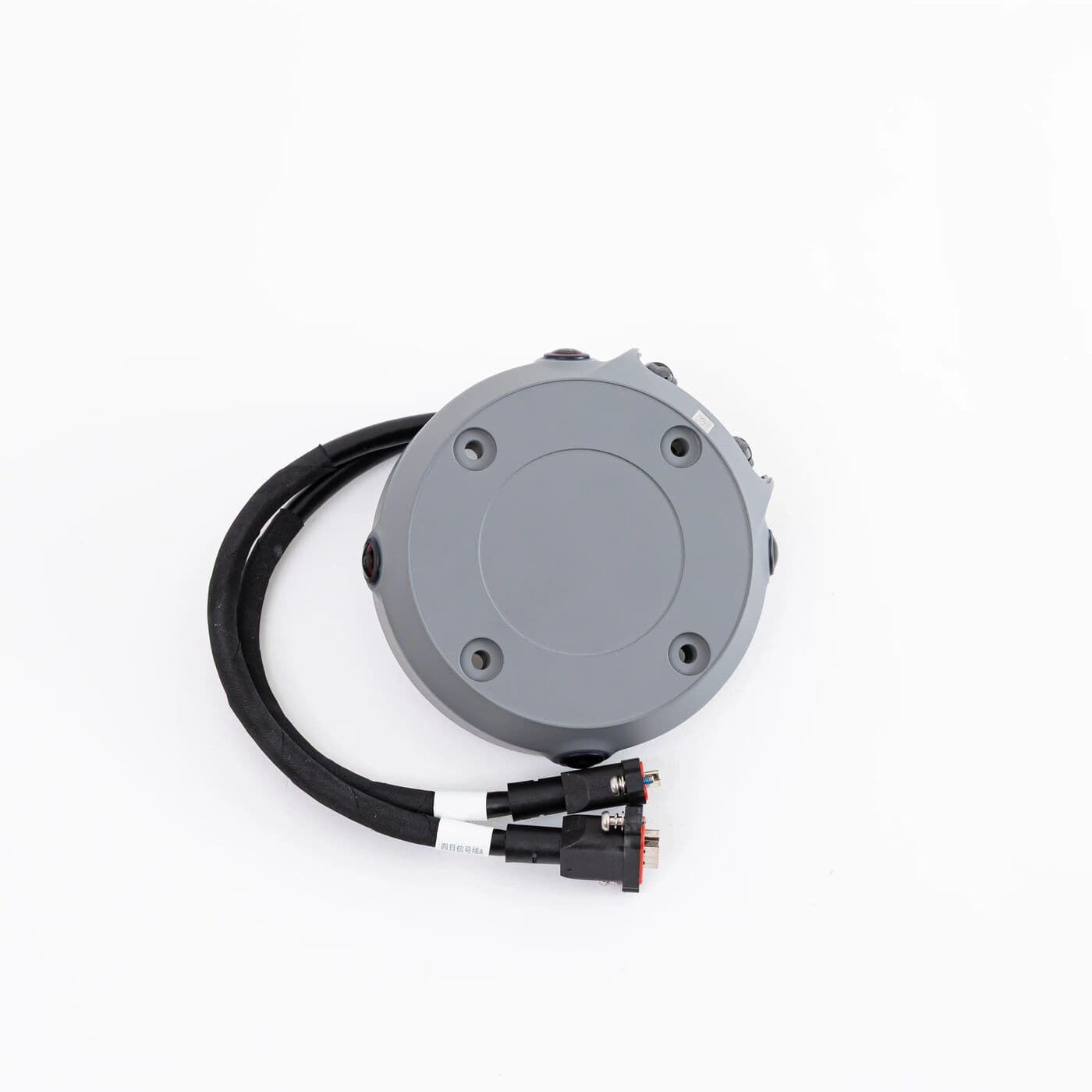

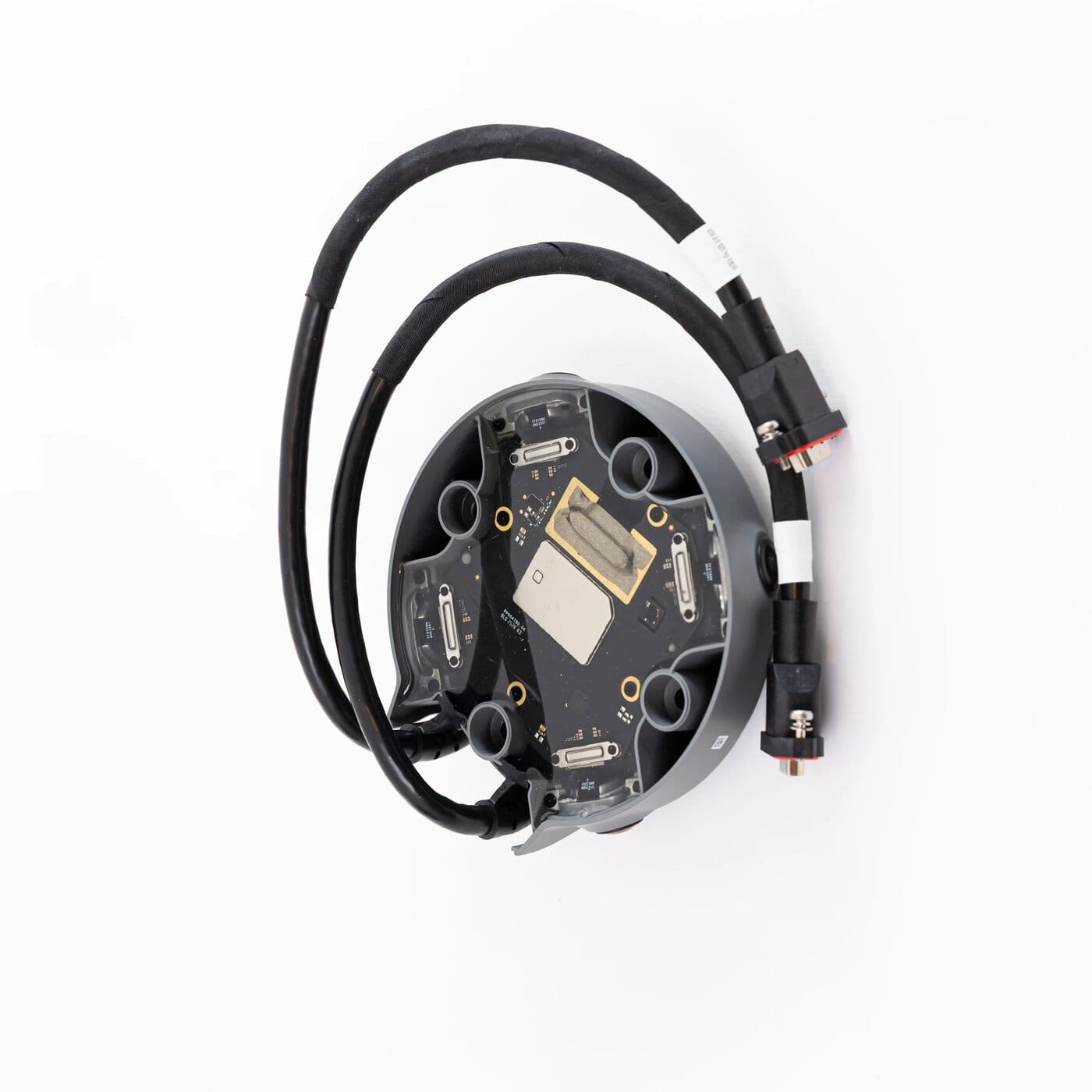

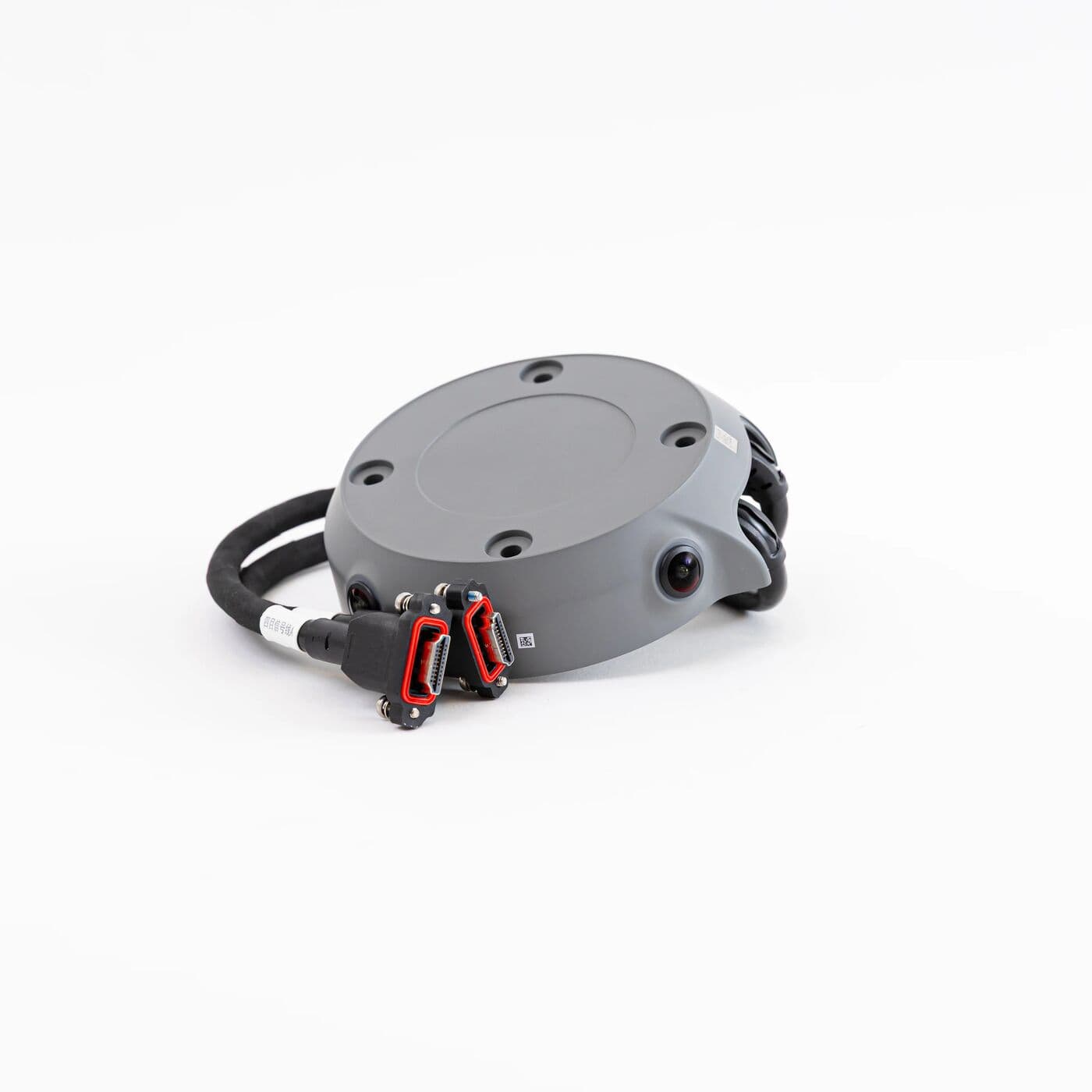

Mounted on the front frame of the DJI Agras T100, this quad-fisheye module provides the cameras for the aircraft's quad vision system, which DJI specifies at 360° horizontal and 180° vertical coverage. It adds a camera view to obstacle sensing alongside the radar modules.
| Part number | BC.AG.SS001093 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 front frame (sheet 2), callout 26 |
Signs it needs attention:
- vision sensor warnings in the DJI Agras app that remain after the lenses have been cleaned
- cracked or deeply scratched lens windows
- a damaged cable or plug after a crash or tree strike
When fitting a replacement, push the connectors fully home, then check the quad vision sensor cover plate (callout 28) and the cable decorative cover (callout 23) are back in place. Complete any calibration the app asks for before the next job, and wipe the lenses between loads, since dried chemical on the windows limits what the cameras can see.
