DJI

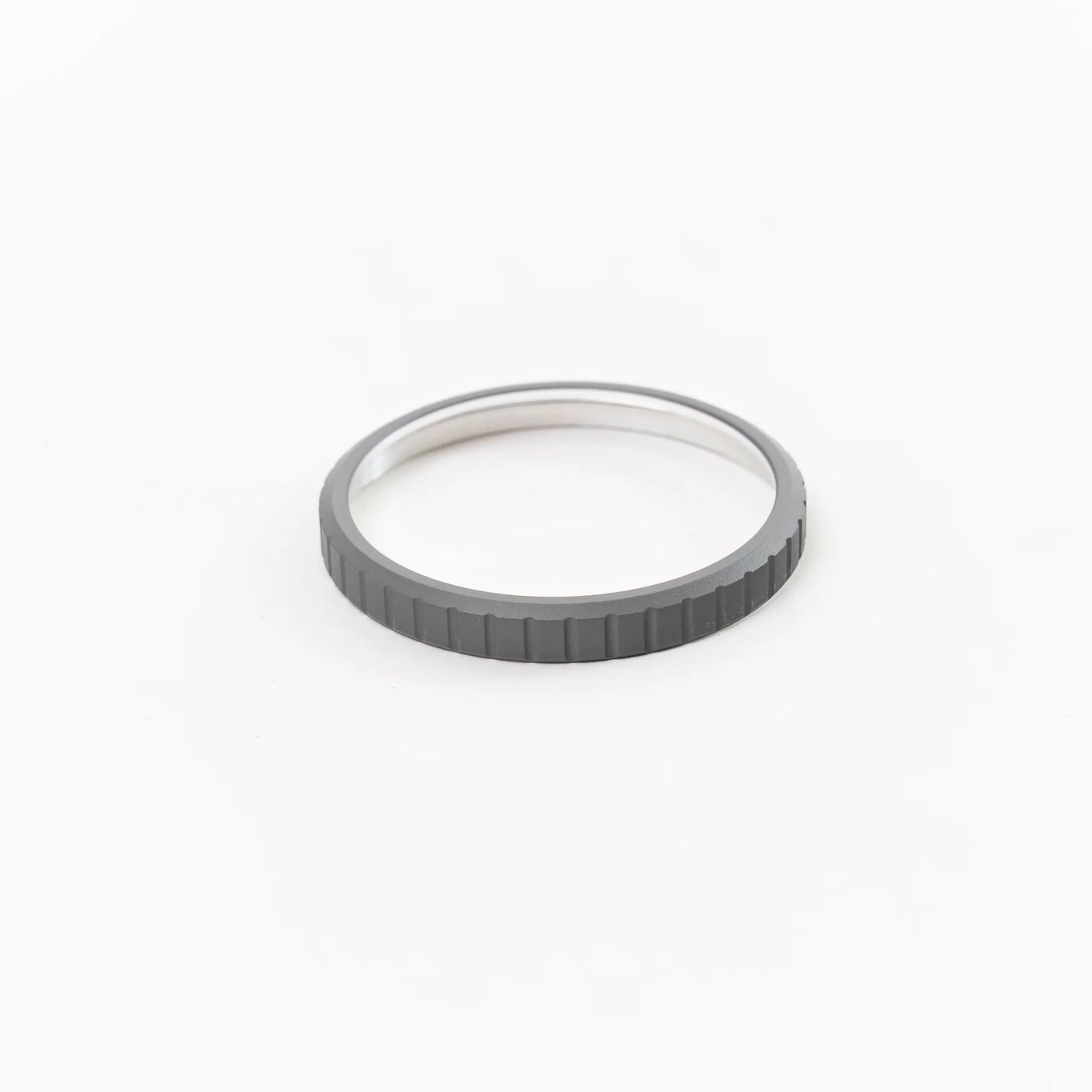

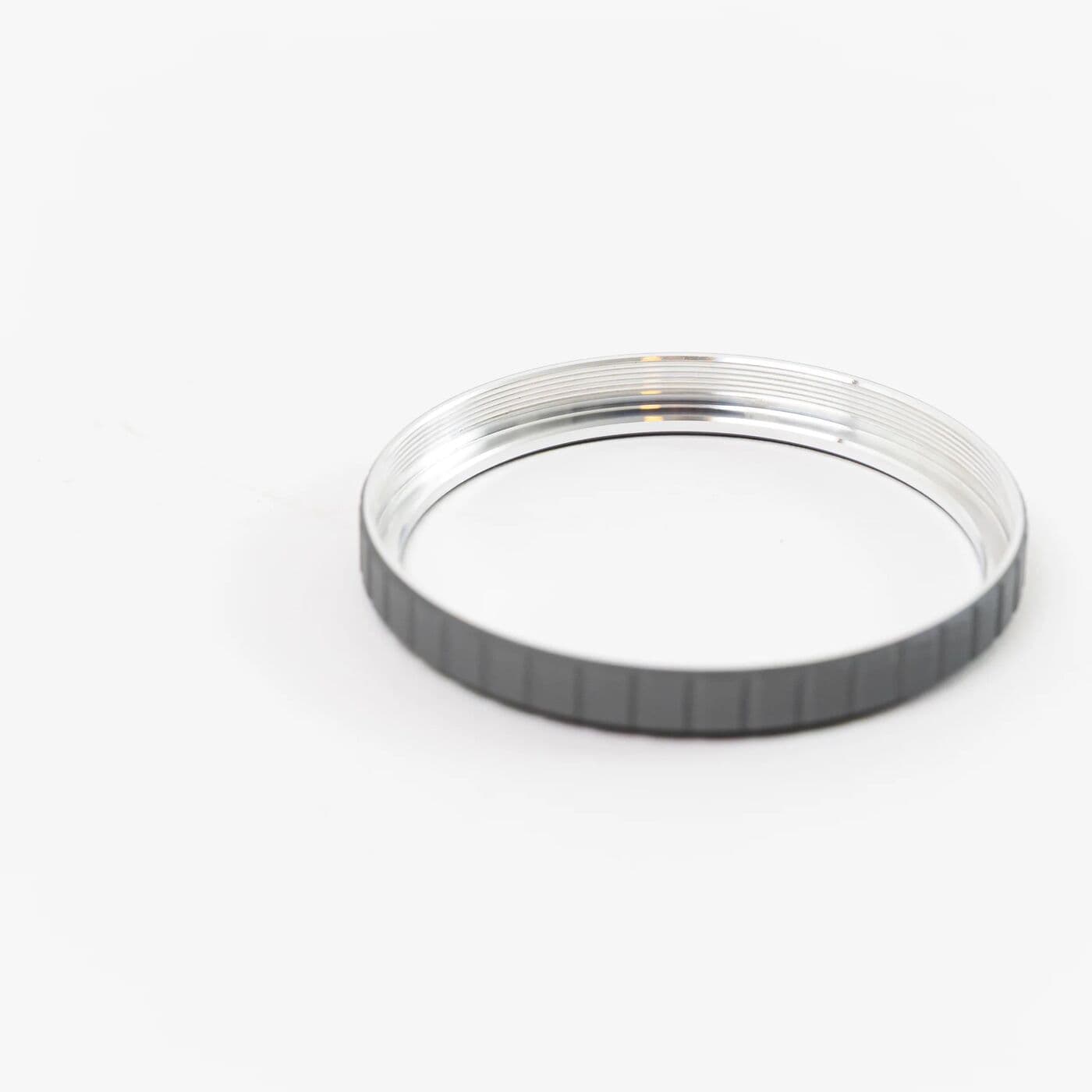

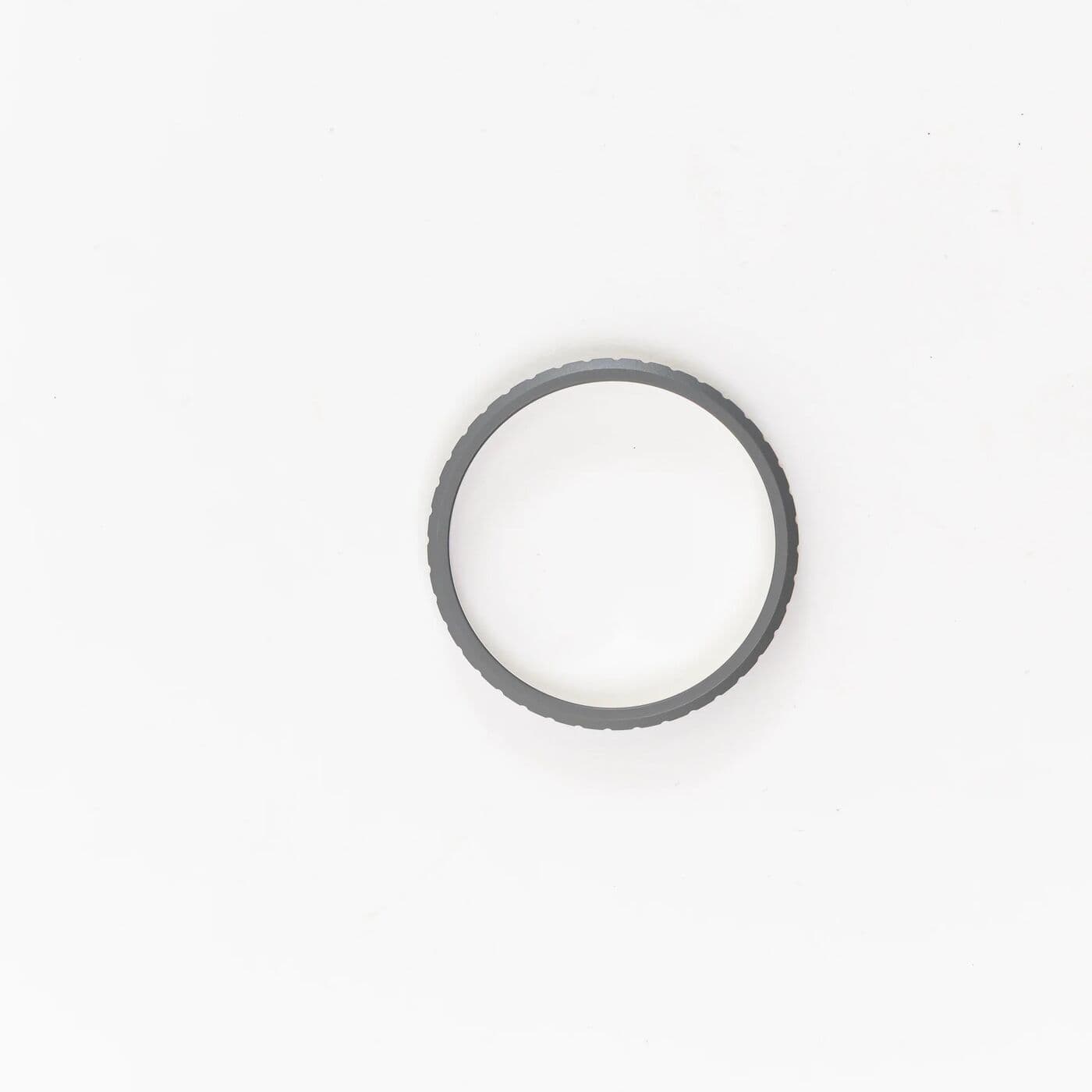

Lock Ring (T100) YC.JG.QX004623
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
This lock ring belongs to the DJI Agras T100 LiDAR module. The front frame (sheet 1) breakdown lists it as part 24-4, one of the sub-parts of the module at callout 24.
| Part number | YC.JG.QX004623 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 front frame (sheet 1), part of the LiDAR module at callout 24 |
The breakdown lists it with the module's LiDAR dome cover (24-1), optical window sealing ring (24-2) and pressing ring (24-3), but the drawing does not show the ring itself, so compare it with the one you are replacing before ordering. A ring that is cracked, distorted or no longer holds firmly should be replaced rather than refitted.
DJI's manual warns against opening the LiDAR's protective dome yourself, because dust can get into the sensor, and our Horsham and Manjimup workshops can do the job instead. If you are unsure it is the right ring, contact us with a photo of the old one and where it came from, and we can help match it.
