DJI
Laser Radar Module - Overseas (T100) BC.AG.SS001166
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

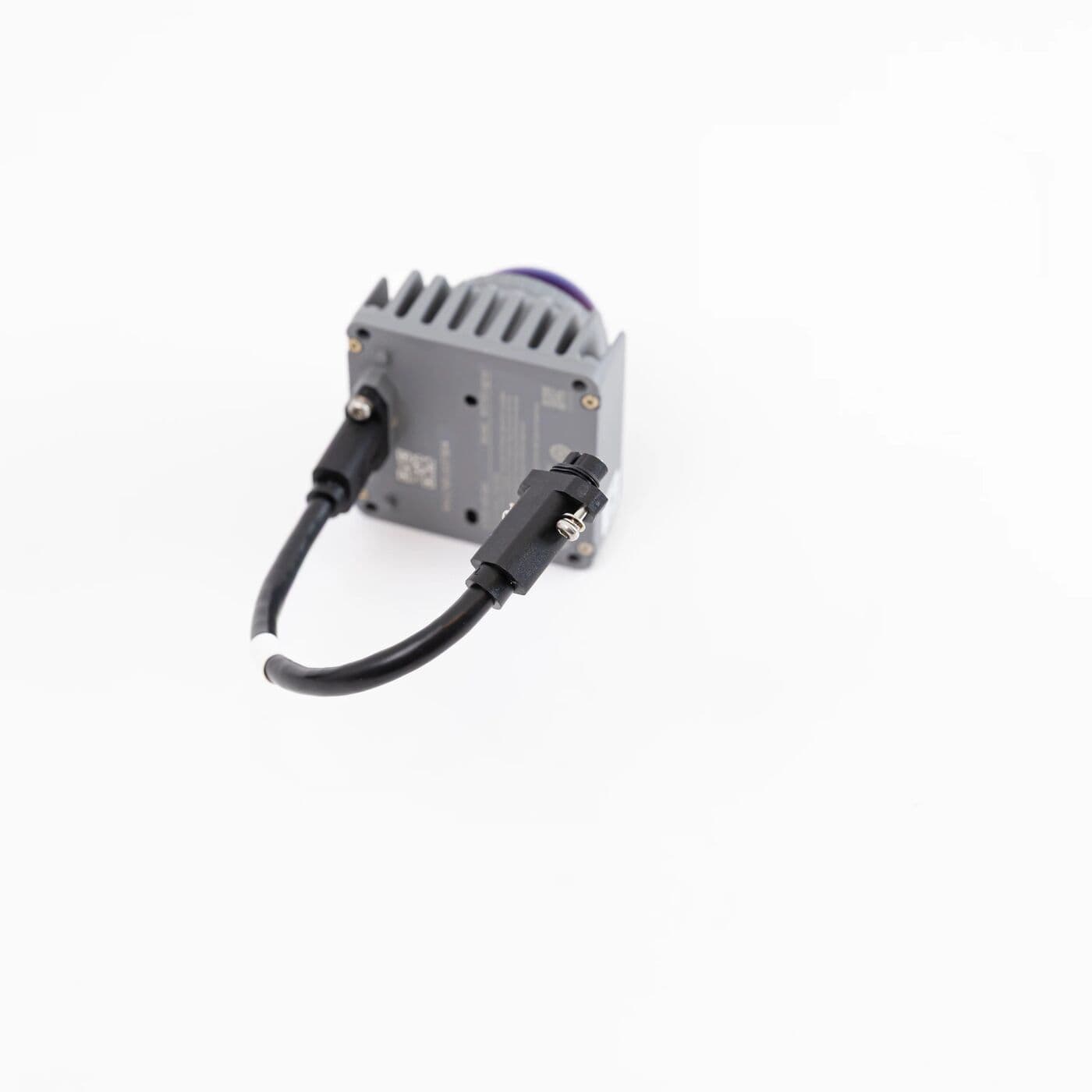

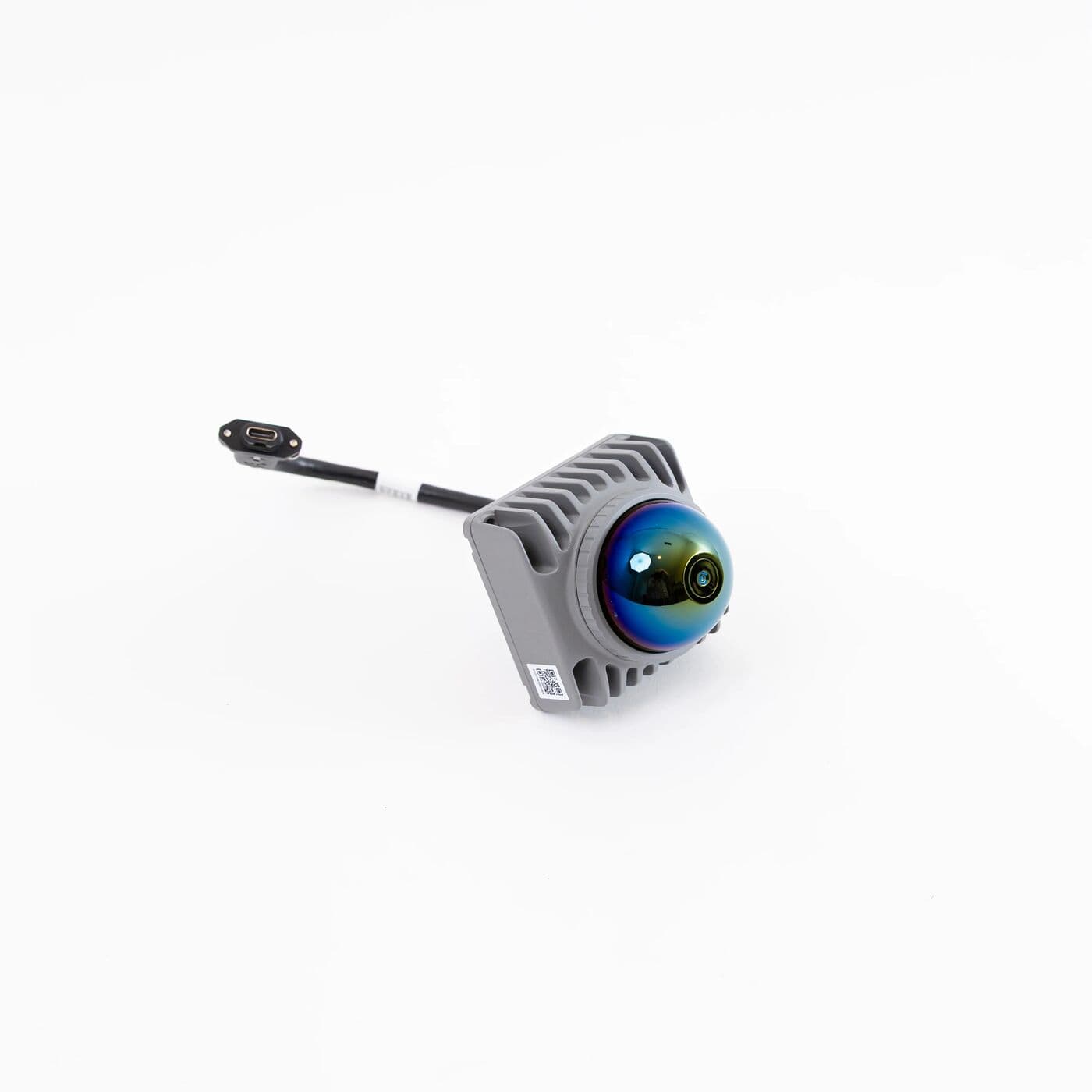

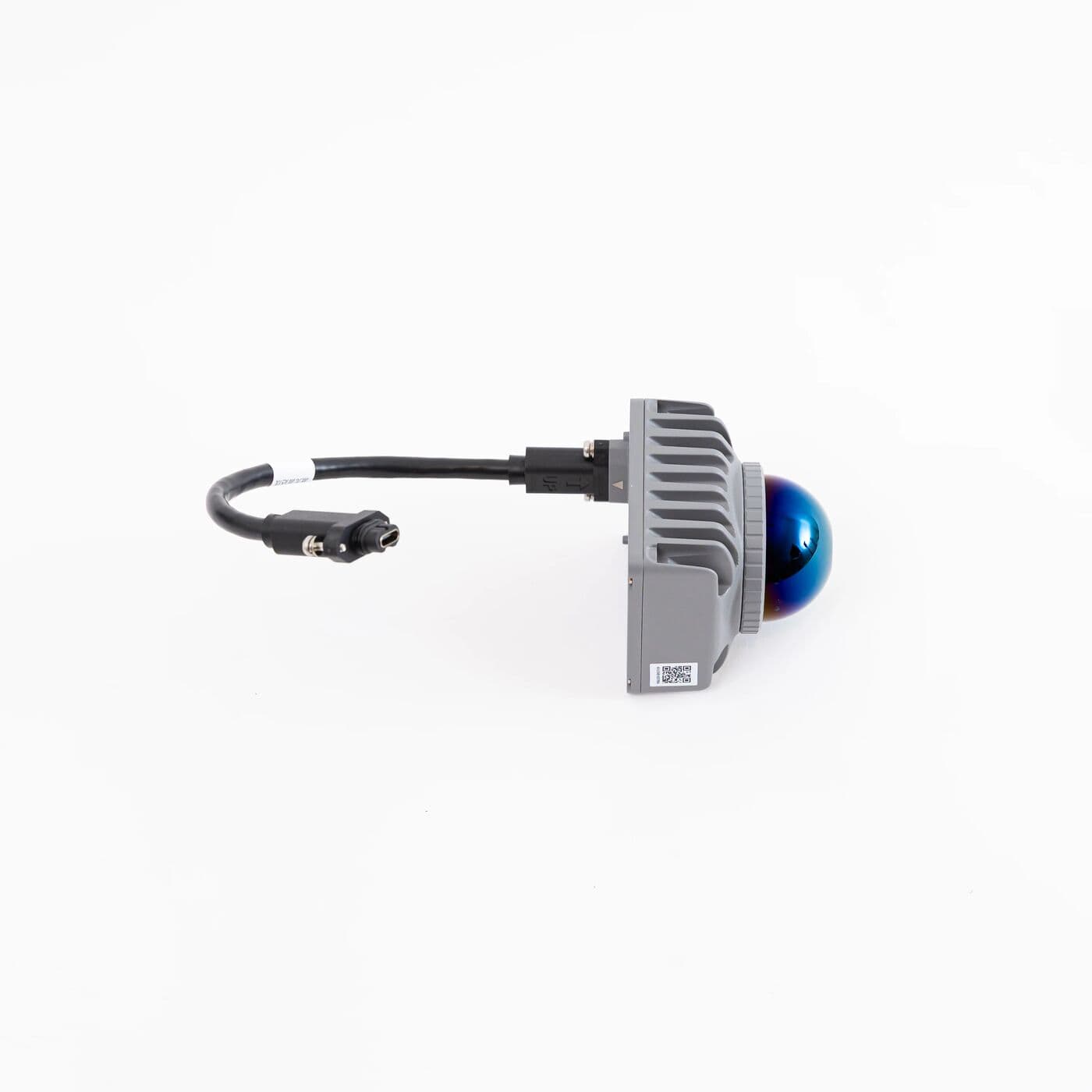

This is the Overseas version of the DJI Agras T100 laser radar module (the LiDAR), the forward sensor at callout 24 of the front frame diagram and part of the aircraft's obstacle sensing.
| Part number | BC.AG.SS001166 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 front frame (sheet 1), callout 24 |
DJI uses the Overseas label for the version built for aircraft sold outside mainland China, so this is the module for T100s sold in Australia. Australian parts lists carry no other T100 LiDAR module code.
It may need replacing after a frontal strike, or when a LiDAR fault in the app persists after the laser radar signal cable and its plugs have been checked. Handle it by the housing and keep the sensing face clean and unmarked. Fit it to an undamaged laser radar bracket with its insulation spacer in place, then confirm the app shows the LiDAR working without warnings before flying.
