DJI
LiDAR Dome Cover (T100) YC.OC.PA000059
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

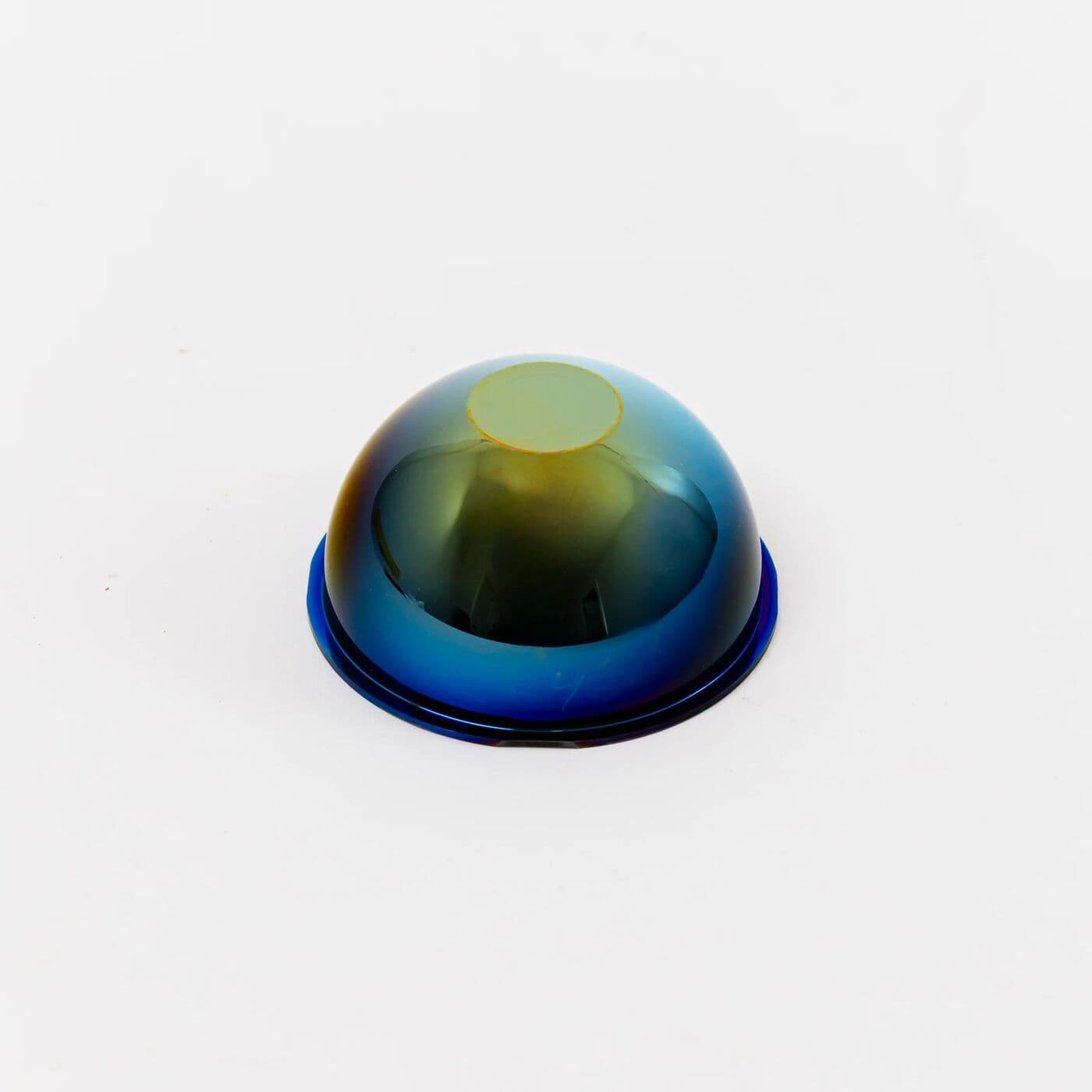

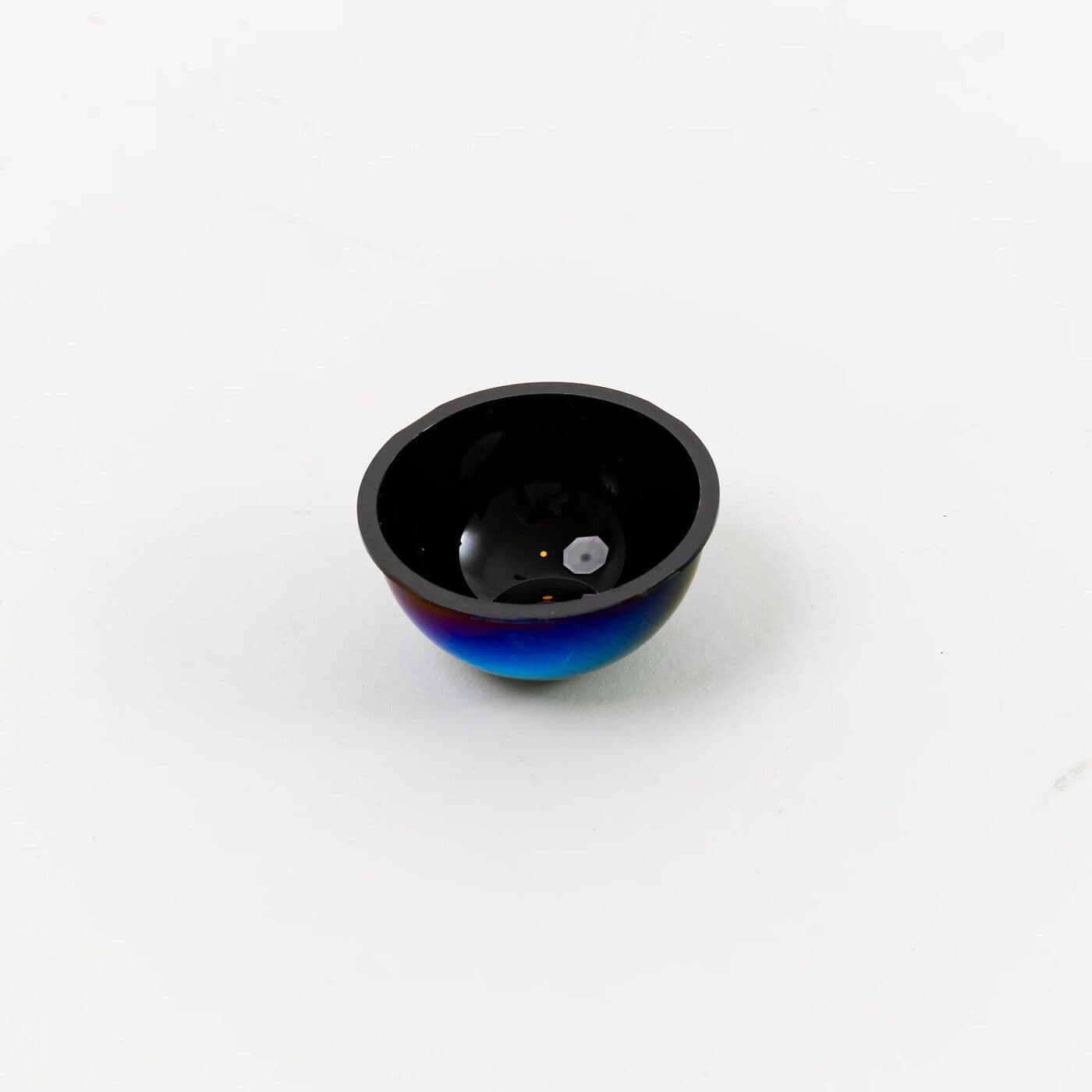

The dome cover is the protective shell the DJI Agras T100's LiDAR looks out through. The front frame (sheet 1) breakdown lists it as part 24-1 of the LiDAR module at callout 24, and it shields the sensor from knocks, dust and spray.
| Part number | YC.OC.PA000059 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 front frame (sheet 1), part of the LiDAR module at callout 24 |
Because the sensor works through this dome, deep scratches, cracks, chemical crazing or dried residue can affect what it detects. DJI's manual suggests cleaning it after each spraying day once the aircraft has cooled: rinse with clean water, blow loose grit off with compressed air instead of wiping it across, then wipe with a soft cloth, with a little alcohol for stubborn marks. Never use tank mix or other chemical cleaners on it.
DJI also warns against taking the dome off yourself, as dust can get into the sensor, so fitting a new one is a job for our Horsham or Manjimup workshop. A hit hard enough to break the dome may also have damaged the laser radar module, or the optical window sealing ring and lock ring listed with it.
