DJI

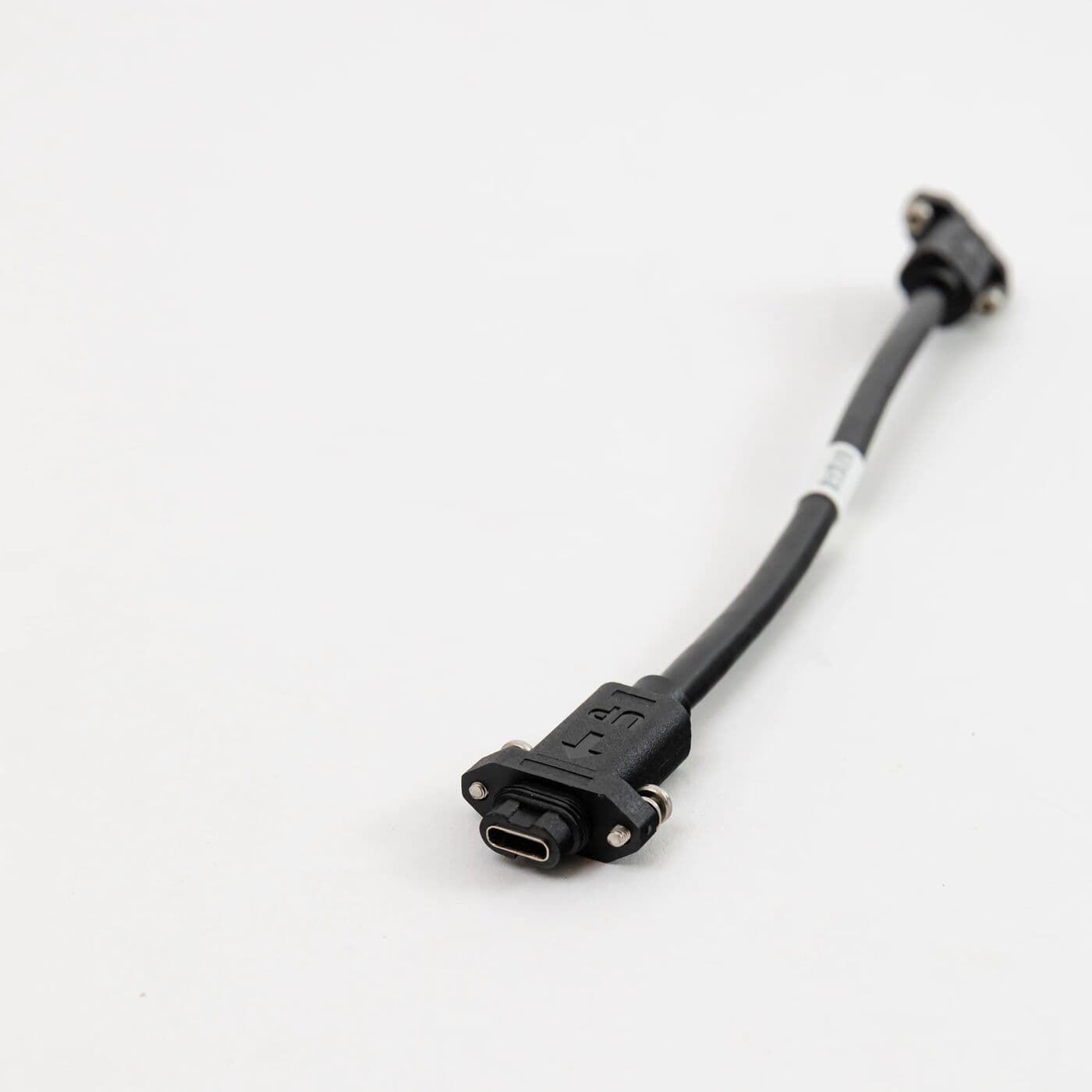

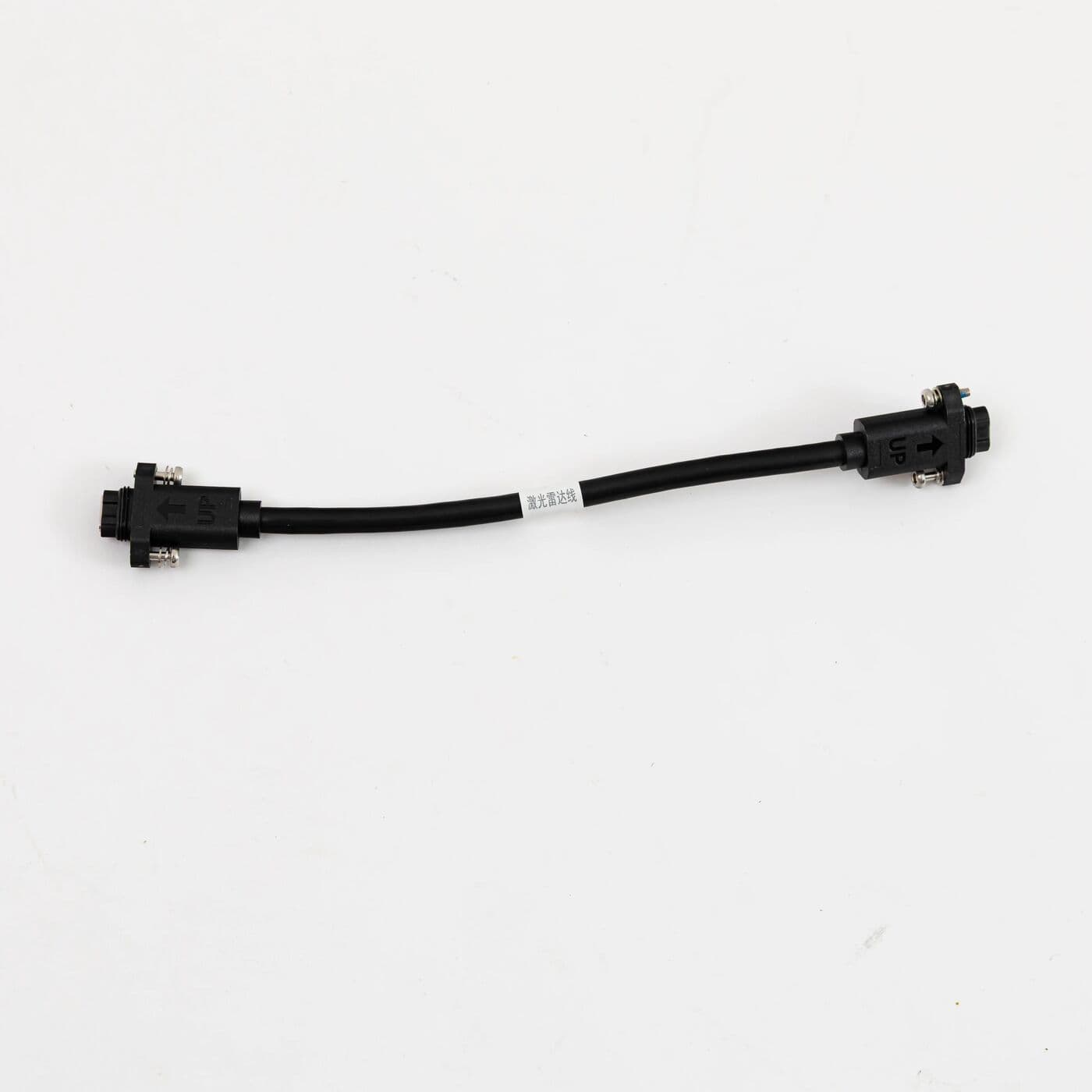

Laser Radar Signal Cable (T100) YC.XC.XX001498
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Wiring for the DJI Agras T100 LiDAR: this signal cable connects the laser radar module to the rest of the aircraft at the front frame, callout 23 on sheet 1.
| Part number | YC.XC.XX001498 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 front frame (sheet 1), callout 23 |
A damaged cable can show up as LiDAR warnings in the app or a sensor that cuts in and out. Look for a chafed or split sheath, pinched sections near clamps and fixings, and bent or corroded pins in the plugs.
Rule this cable out before replacing the LiDAR module itself. When fitting, follow the original route, push each plug fully home and secure the cable the way the old one was held so it cannot rub on the frame.
