DJI

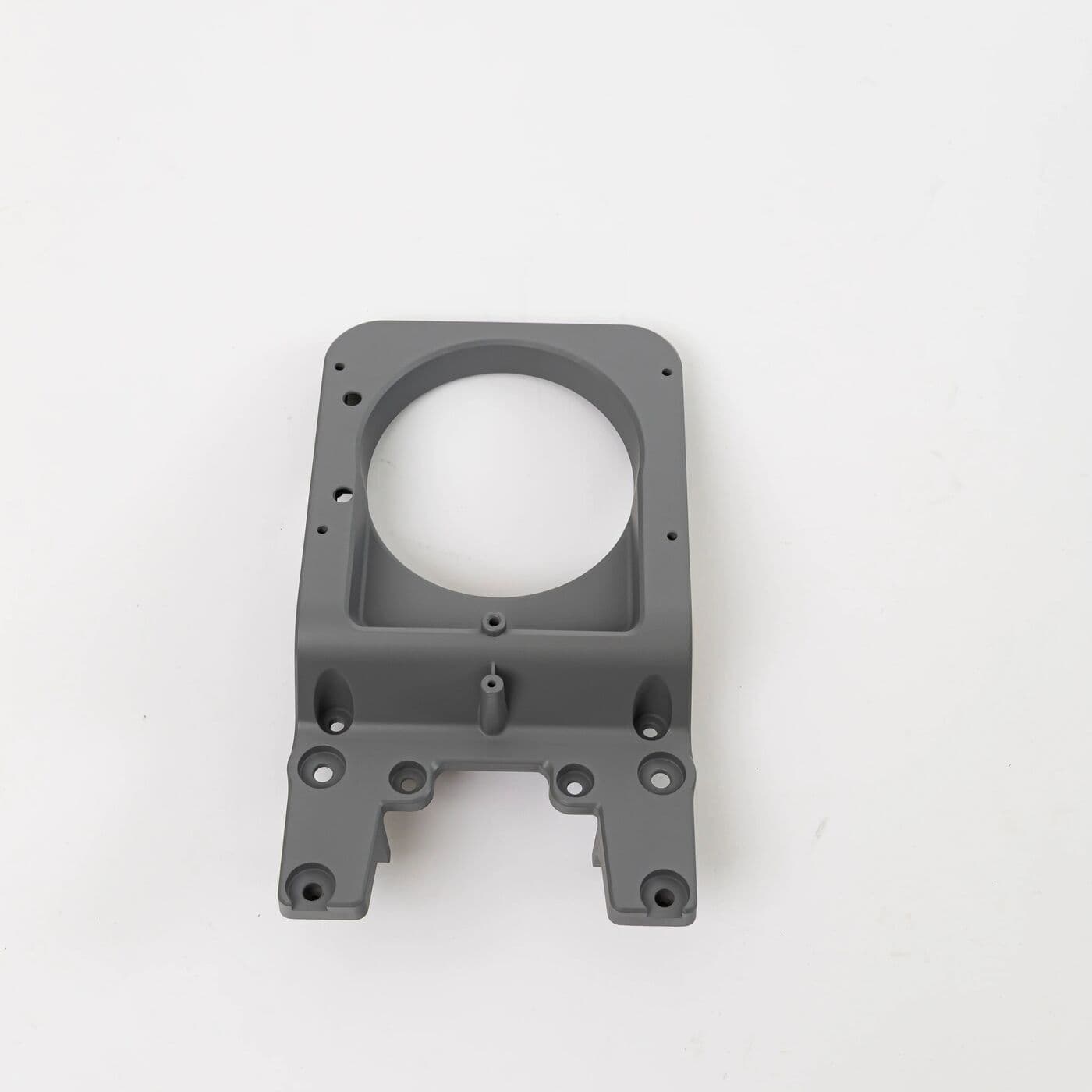

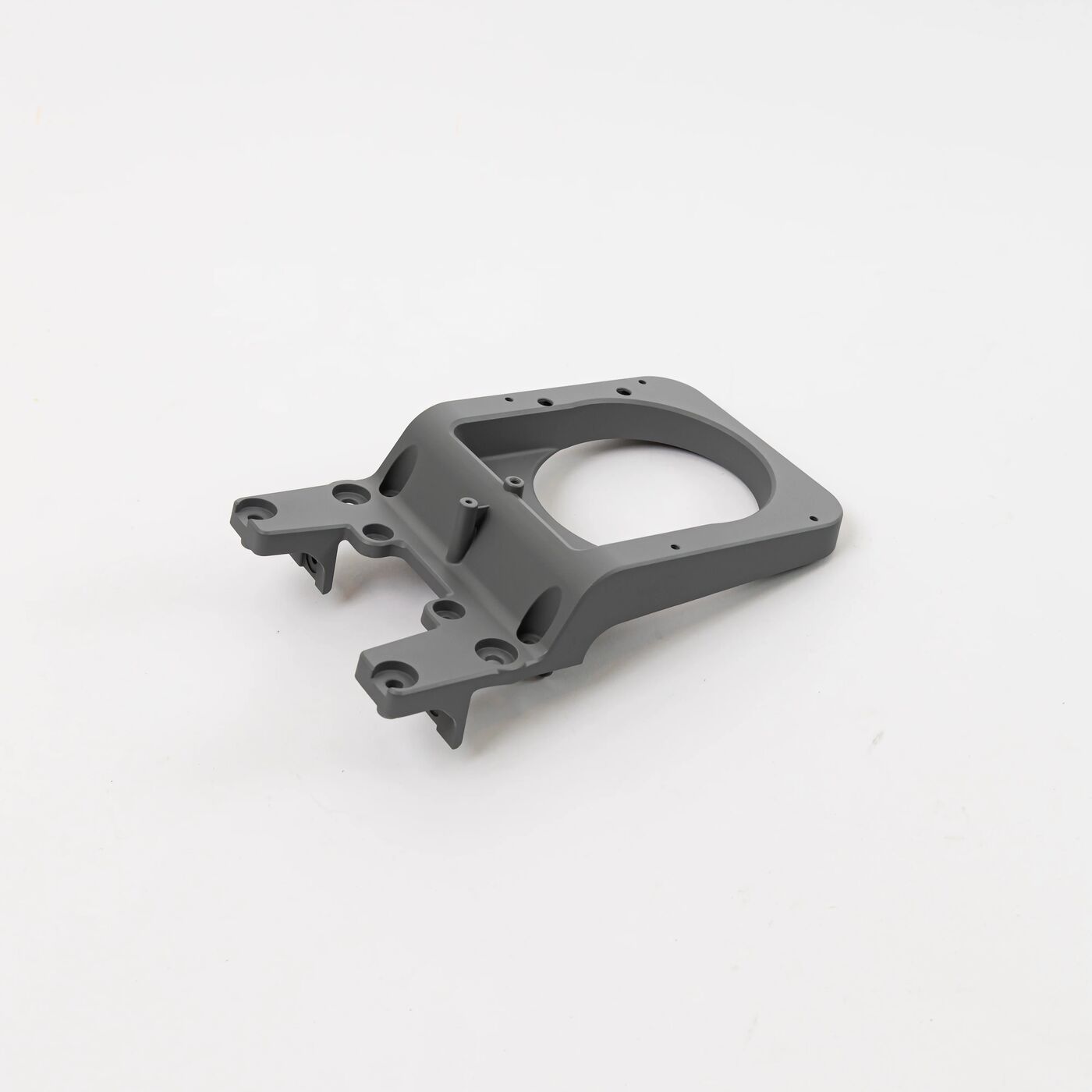

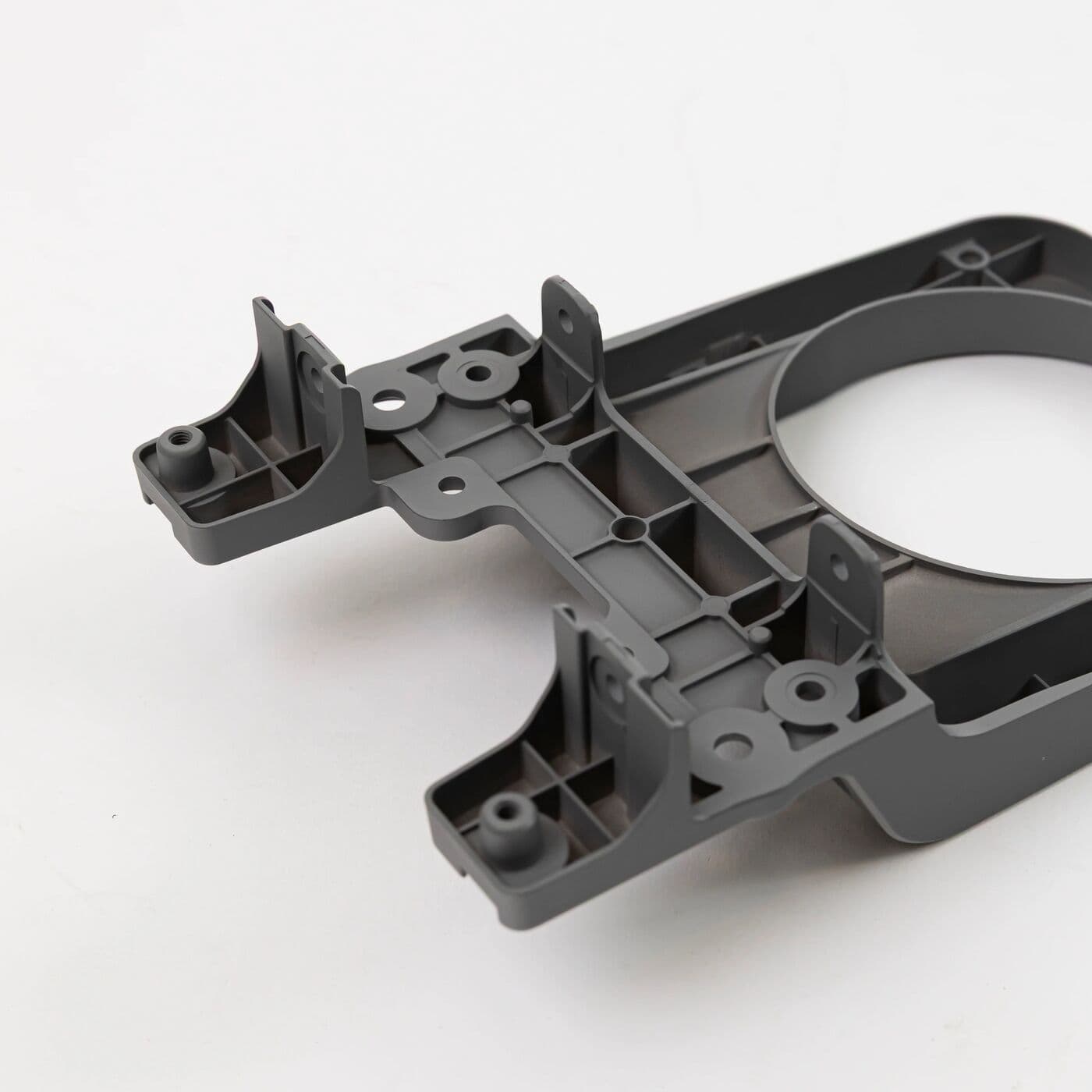

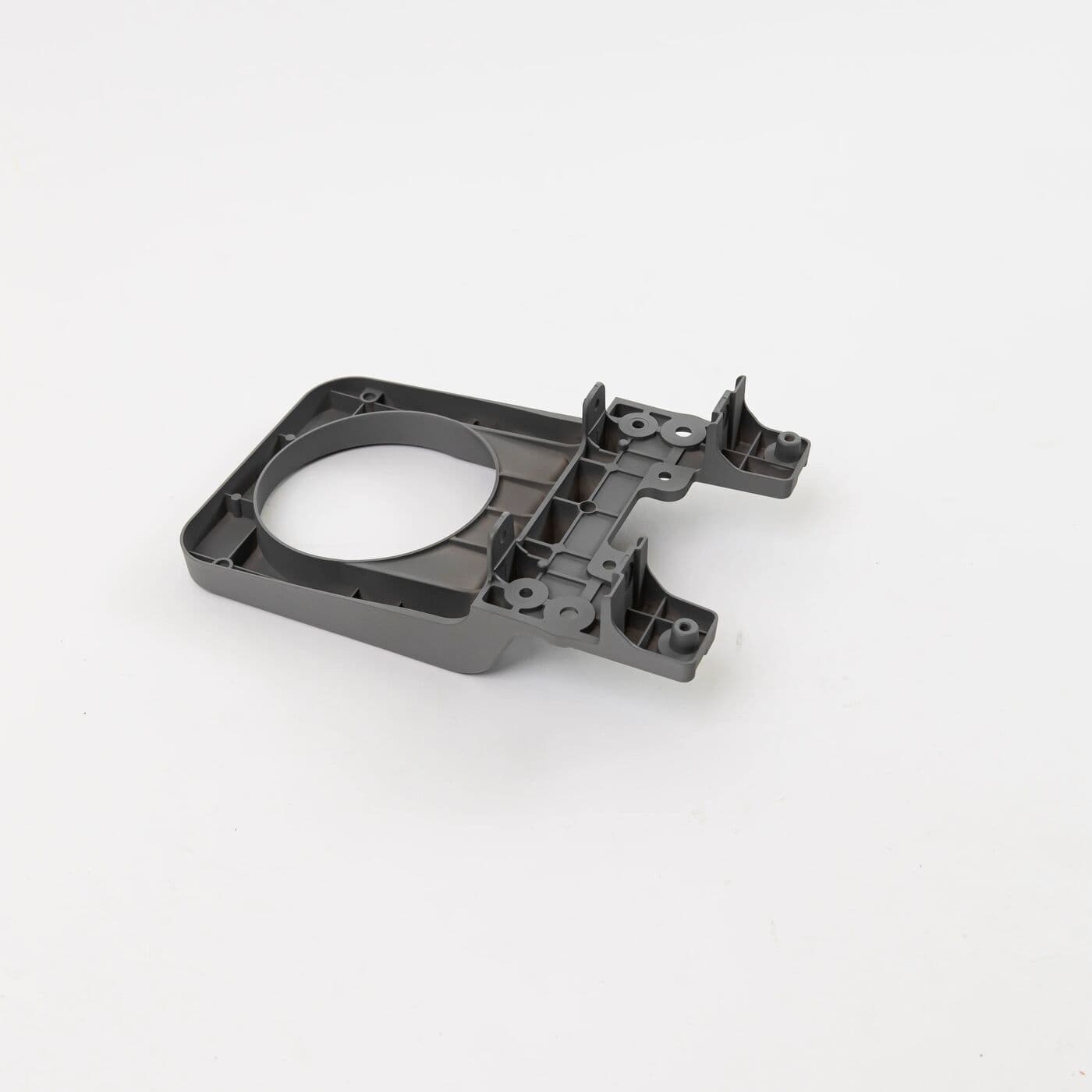

Front Radar Bracket (T100) YC.JG.YZ001069
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
The front millimetre-wave radar on the DJI Agras T100 sits on this bracket, which mounts on the front frame and is drawn at callout 26 on sheet 1 of the front frame diagram.
| Part number | YC.JG.YZ001069 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 front frame (sheet 1), callout 26 |
Radar readings depend on the sensor being held at its designed angle, so a bracket that is bent, cracked or loose on its screws matters more than its size suggests. Check it after any frontal impact, including ones where the radar itself looks undamaged.
Fit the new bracket with undamaged screws, make sure the radar sits square and firm, then look for radar warnings in the app before the aircraft goes back to work.
