DJI

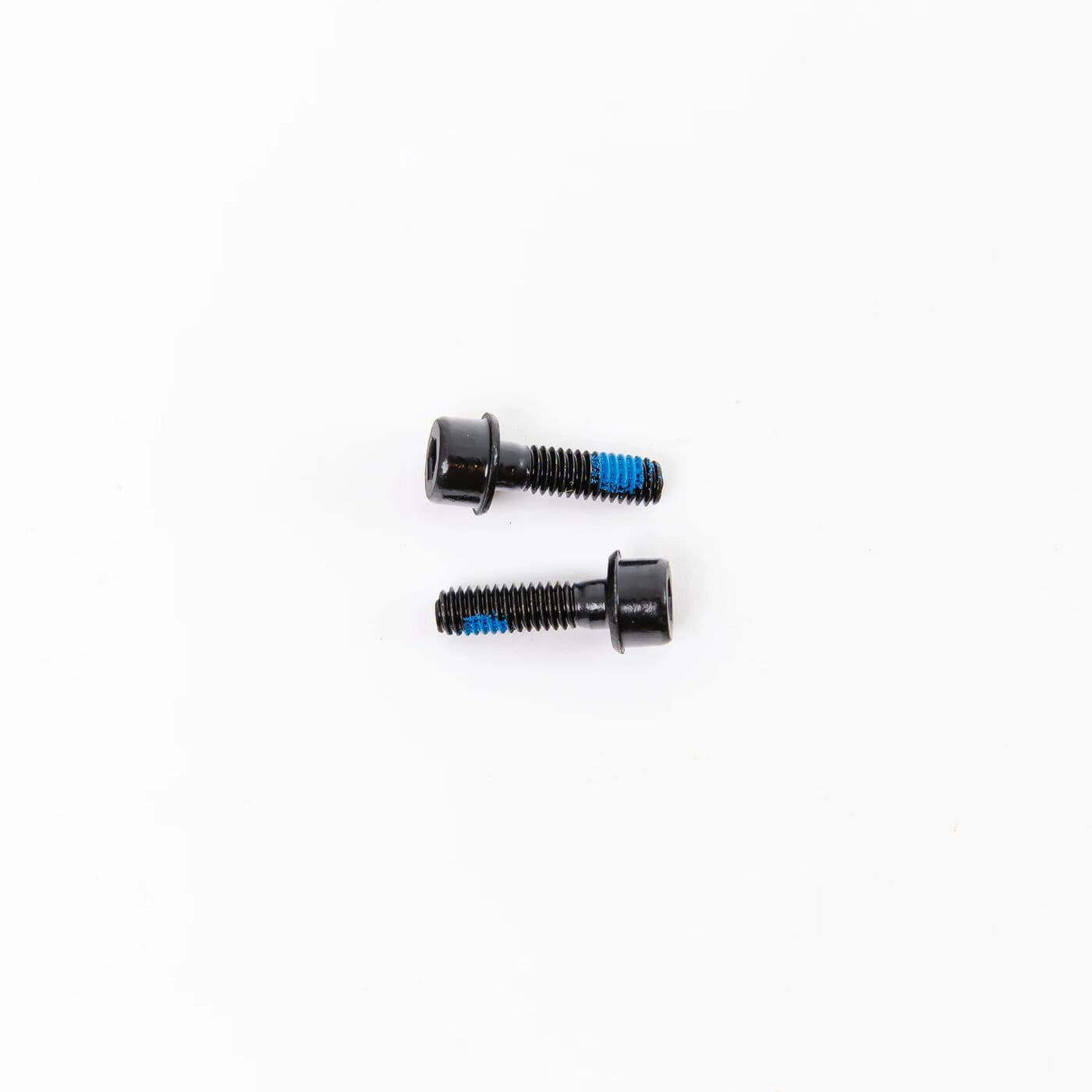

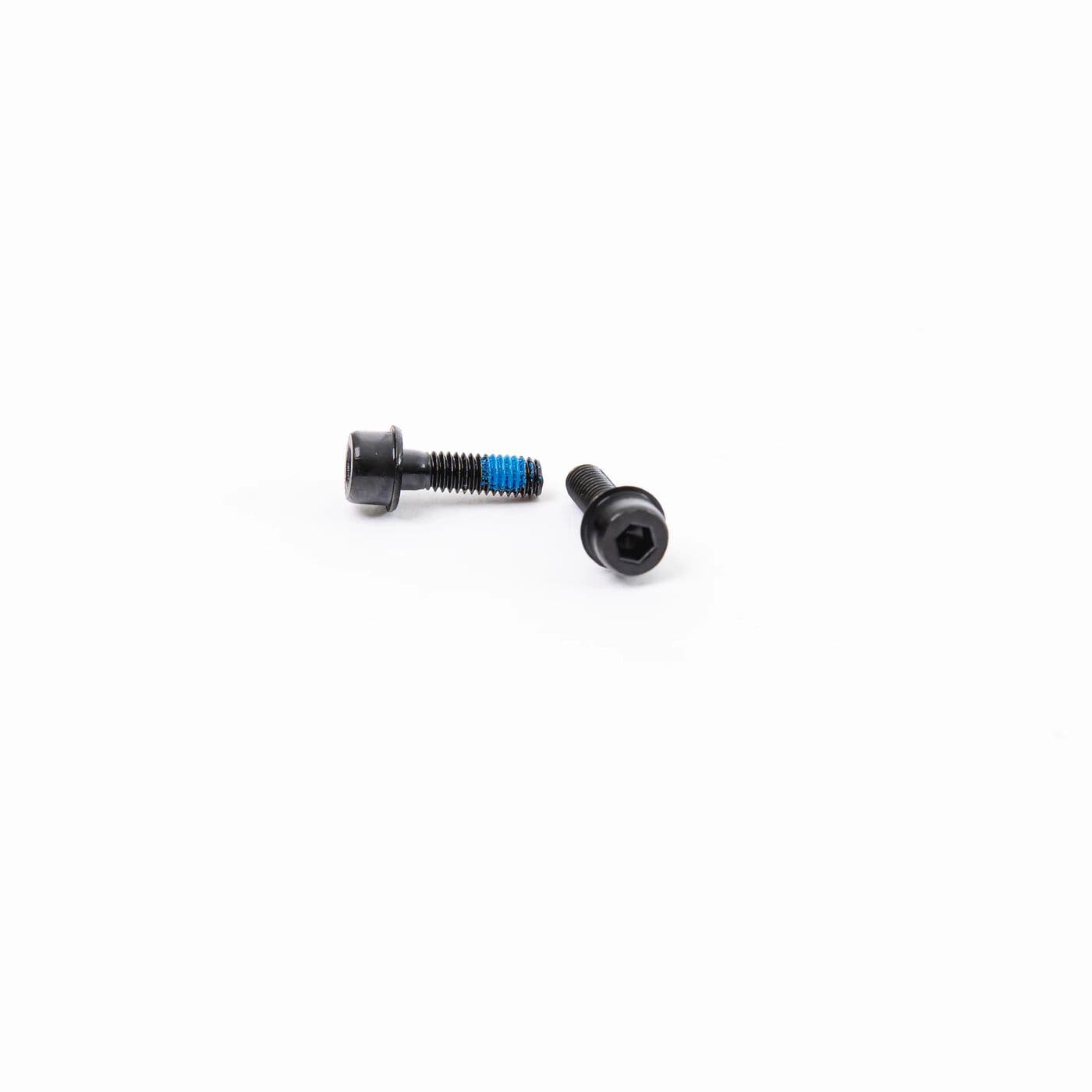

Screw - M40-HC01400115-085047-4203-Y (T100) YC.ST.LL000730
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Twelve DJI Agras T100 diagram sheets call for this screw, which fixes parts of the landing gear, frame connectors, spreading frame, front frame, middle and rear frame, and the lift system winch.
| Part number | YC.ST.LL000730 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 landing gear (sheet 1), callout 7; T100 landing gear (sheet 2), callouts 3, 8 and 12; T100 aircraft frame connector, callouts 3 and 14; T100 front frame (sheet 1), callouts 6, 9 and 25; T100 middle and rear frame (sheet 1), callout 19; T100 spreading landing gear, callout 5; T100 spreading landing gear (sheet 2), callouts 3 and 11; T100 spreading frame, callouts 4 and 6; T100 lift system winch, callout 9; T100 lift system frame connector, callout 3; T100 lift system landing gear (sheet 1), callout 4; T100 lift system landing gear (sheet 2), callout 7 |
Replace any with a rounded drive, damaged thread or corrosion under the head. Screws that look alike can differ in length, so match the full code, and count the callouts on your sheet before ordering, as several sheets use it more than once.
