DJI Agras T70P Arm 3
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T70P assemblies (18)
- Spray Tank 1 (38)
- Spray Tank 1 (2) (1)
- Impeller Pump (11)
- Flow Meter (20)
- Omnidirectional Radar Module (1)
- Spray Lance (18)
- Cable Distribution Board (21)
- Front Frame 1 (19)
- Front Frame 2 (31)
- Middle Frame (31)
- Arm 3 (51)
- Landing Gear (43)
- Propellers (12)
- Lifting System Winch (23)
- Misting Spray Lance (18)
- Spreading Spray Tank (25)
- Spreading Spinner Disk (20)
- Spreading Auger (38)

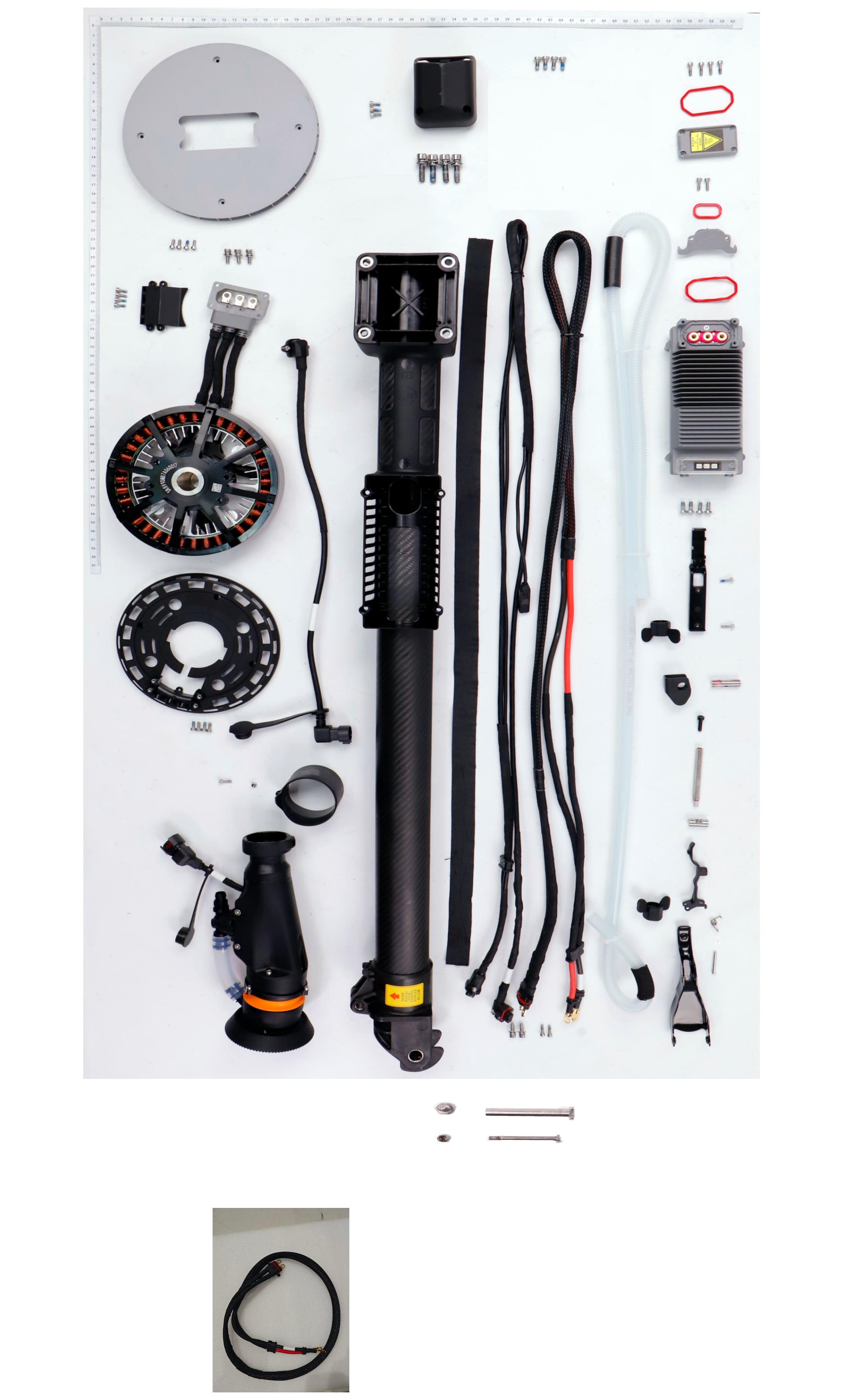

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Motor protection cover YC.JG.ZS006718 $8.00 | $8.00 | |
| 2 | Screw M30-HC080080-55-85 YC.WJ.L00868 $3.05 | $3.05 | |
| 3 | Motor Upper Cover YC.JG.ZS006183 $24.00 | $24.00 | |
| 4 | Screw (M60-NCW02300200-120060-5103-N) YC.ST.LL000750 $3.00 | $3.00 | |
| 5 | Aircraft Arm Signal Cable (Rear) YC.XC.XX001392 $111.00 | $111.00 | |
| 6 | Duct Tape YC.JG.MQ002156 $29.00 | $29.00 | |
| 7 | Screw (M30-HC00800080-055030-5103-Y) YC.ST.LL000612 $0.65 | $0.65 | |
| 8 | Screw (M40-HCW01150115-070040-5103-N) YC.ST.LL000667 $0.65 | $0.65 | |
| 9 | M3 Aircraft Arm (Rear Left) BC.AG.SS001134 $381.00 | $381.00 | |
| 10 | Screw (M30-HC00800080-055030-5103-Y) YC.ST.LL000612 $0.65 | $0.65 | |
| 11 | Motor Cable Protective Cover YC.JG.ZS006181 $8.00 | $8.00 | |
| 12 | 15522 Motor BC.AG.SS001048 $1,143.00 | $1,143.00 | |
| 13 | ESC Sprinkler Adapter Cable YC.XC.XX001463 $30.00 | $30.00 | |
| 14 | Motor Lower Cover YC.JG.ZS006180 $24.00 | $24.00 | |
| 15 | Screw (M30-HC00800080-055030-5103-Y) YC.ST.LL000612 $0.65 | $0.65 | |
| 16 | M3 Nut YC.WJ.L00877 $2.05 | $2.05 | |
| 17 | Screw M30-HC100100-55-85 YC.WJ.L00871 $2.05 | $2.05 | |
| 18 | Anti-Wear Sleeve YC.JG.ZS003557 $13.00 | $13.00 | |
| 19 | M60-HX100060-5103_01 YC.WJ.LM000044 $3.60 | $3.60 | |
| 20 | Locking Piece Fixing Screw Bolt YC.JG.LD000041 $9.00 | $9.00 | |
| 21 | Aircraft Arm Fixing Screw YC.JG.LD000039 $4.40 | $4.40 | |
| 22 | Aircraft Arm Fixing Screw Bolt YC.JG.QX002314 $32.00 | $32.00 | |
| 23 | Screw (M40-HCW01150115-070040-5103-N) YC.ST.LL000667 $0.65 | $0.65 | |
| 24 | Screw M30-HC100100-55-85 YC.WJ.L00871 $2.05 | $2.05 | |
| 25 | Locking Piece Handle YC.JG.BJ003468 $35.00 | $35.00 | |
| 26 | Buckle Rotation Shaft YC.JG.QX003014 $56.80 | $56.80 | |
| 27 | E-Shaped Circlip (6 mm) YC.JG.BJ002409 $2.50 | $2.50 | |
| 28 | Buckle Torsion Spring YC.JG.TT000165 $2.50 | $2.50 | |
| 29 | Thumb Nut YC.JG.ZS006171 $2.30 | $2.30 | |
| 30 | Buckle Module BC.AG.SS000701 $2.50 | $2.50 | |
| 31 | Locking Piece_Handle Connecting Rod Shaft YC.JG.QX004662 $16.00 | $16.00 | |
| 32 | Locking Piece Connection Rod YC.JG.QX003942 $6.05 | $6.05 | |
| 33 | Screw (M40-HC01400140-070039-4105-Y) YC.ST.LL000148 $11.95 | $11.95 | |
| 34 | Locking Piece Handle Rubber Sleeve YC.JG.ZS006831 $3.00 | $3.00 | |
| 35 | Locking Piece Aircraft Arm Shaft YC.JG.QX002089 $13.00 | $13.00 | |
| 36 | Thumb Nut YC.JG.ZS006171 $2.30 | $2.30 | |
| 37 | Screw M30-HC100100-55-85 YC.WJ.L00871 $2.05 | $2.05 | |
| 38 | In-Position Detector Bracket YC.JG.ZS002278 $11.00 | $11.00 | |
| 39 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05 | $2.05 | |
| 40 | ESC Module BC.AG.SS001022 $600.00 | $600.00 | |
| 41 | Aircraft Arm Power Cable (Rear) YC.XC.DD000797 $143.00 | $143.00 | |
| 42 | ESC Three-Phase Waterproof Cover Rubber Seal YC.JG.MY001804 $5.00 | $5.00 | |
| 43 | Aircraft Arm Hose YC.JG.JS000073 $30.00 | $30.00 | |
| 44 | ESC Bus Waterproof Cover YC.JG.ZS006196 $5.00 | $5.00 | |
| 45 | ESC Bus Waterproof Cover Rubber Seal YC.JG.MY001805 $2.00 | $2.00 | |
| 46 | Screw M30-HC100100-55-85 YC.WJ.L00871 $2.05 | $2.05 | |
| 47 | ESC Three-Phase Cable Waterproof Cover YC.JG.ZS006195 $16.00 | $16.00 | |
| 48 | ESC Three-Phase Waterproof Cover Rubber Seal YC.JG.MY001804 $5.00 | $5.00 | |
| 49 | Screw M30-HC100100-55-85 YC.WJ.L00871 $2.05 | $2.05 | |
| 50 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05 | $2.05 | |
| Aircraft Arm Power Cable (Front) YC.XC.DD000796 $104.00 | $104.00 |
