DJI

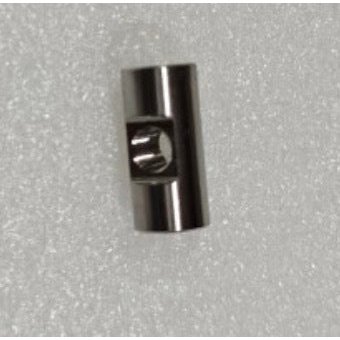

Locking Piece_Handle Connecting Rod Shaft (T70P/T50/T25P) YC.JG.QX004662
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Part of the arm lock on the DJI Agras T70P, T50 and T25P, this is the connecting rod shaft for the locking piece handle. Find it on the T70P arm 3 sheet, the T50 M1 and M3 aircraft arm sheets and the T25P M3 aircraft arm sheet.
| Part number | YC.JG.QX004662 |
| Fits | DJI Agras T70P, T50, T25P |
| Parts diagram | T70P arm 3, callout 31; T50 M1 aircraft arm, callout 30, and T50 M3 aircraft arm, callout 35 (sheet code YC.JG.QX001243); T25P M3 aircraft arm, callout 22 |
As a small pivot in a linkage that moves every time the arms fold, it can wear oval or bend if an arm is forced. Play in the handle, a lock that will not close cleanly, or a shaft starting to walk out are signs to replace it.
On the T70P sheet it is numbered just before the locking piece connection rod, and on the T25P sheet just after the locking piece handle. The T50 sheets number it YC.JG.QX001243, and EE Group supplies this code for the T50 as well.
