DJI

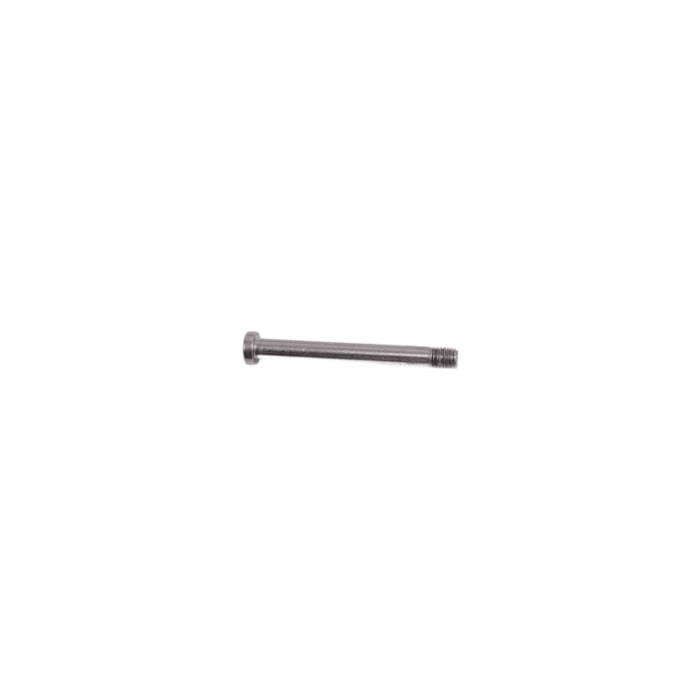

Locking Piece Fixing Screw Bolt (T70P/T50/T25P) YC.JG.LD000041
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Each folding arm on the DJI Agras T70P, T50 and T25P is held unfolded by a locking piece, and this is the bolt that fixes that locking piece in place.
| Part number | YC.JG.LD000041 |
| Fits | DJI Agras T70P, T50, T25P |
| Parts diagram | T70P M3 arm, callout 20; T50 M1 arm, callout 36; T50 M3 arm, callout 41; T25P M3 arm, callout 9 |
If this bolt works loose, the locking piece can shift and the arm can develop play even with the handle shut. Replace it when the thread is damaged, the head is chewed, or the arm has taken a knock hard enough to bend it. Every arm sheet lists a nut, YC.WJ.LM000044, right beside it, so check that nut's thread at the same time. After tightening, open and close the handle a few times and confirm the arm locks without movement.
The locking piece arm shaft and buckle module sit in the same mechanism and are worth inspecting while it is apart.
