DJI Agras T70P Spray Lance
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T70P assemblies (18)
- Spray Tank 1 (38)
- Spray Tank 1 (2) (1)
- Impeller Pump (11)
- Flow Meter (20)
- Omnidirectional Radar Module (1)
- Spray Lance (18)
- Cable Distribution Board (21)
- Front Frame 1 (19)
- Front Frame 2 (31)
- Middle Frame (31)
- Arm 3 (51)
- Landing Gear (43)
- Propellers (12)
- Lifting System Winch (23)
- Misting Spray Lance (18)
- Spreading Spray Tank (25)
- Spreading Spinner Disk (20)
- Spreading Auger (38)

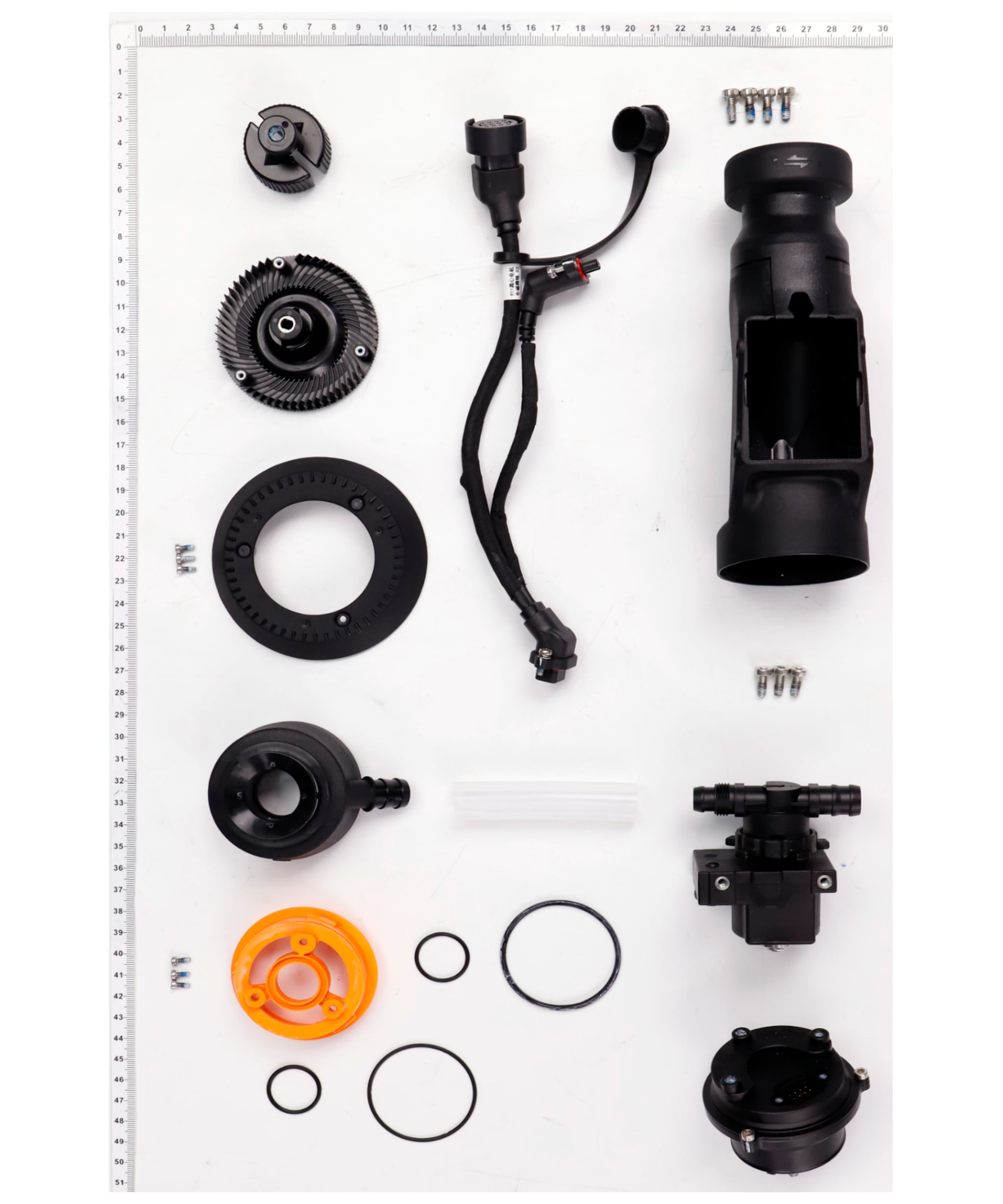

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Sprinkler Thumb Nut YC.JG.ZS006218 $3.10 | $3.10 | |
| 2 | Centrifugal Sprinkler Lower Disk YC.JG.ZS006219 $34.60 | $34.60 | |
| 3 | Centrifugal Sprinkler Adapter Cable YC.XC.XX001394 $36.00 | $36.00 | |
| 4 | M25-HC060060-45-85 YC.WJ.L01549 $4.80 | $4.80 | |
| 5 | Centrifugal Sprinkler Upper Disk YC.JG.ZS007737 $7.55 | $7.55 | |
| 6 | Sprinkler Soft Hose YC.JG.JS000067 $1.55 | $1.55 | |
| 7 | Sprinkler Funnel YC.JG.ZS006216 $43.00 | $43.00 | |
| 8 | Sprinkler Inner Sealing Ring (OD=23.6 mm) YC.JG.MY001829 $4.55 | $4.55 | |
| 9 | Sprinkler Funnel Bracket YC.JG.ZS006215 $28.60 | $28.60 | |
| 10 | M25-HC060060-45-85 YC.WJ.L01549 $4.80 | $4.80 | |
| 11 | Sprinkler Inner Sealing Ring (OD=23.6 mm) YC.JG.MY001829 $4.55 | $4.55 | |
| 12 | Pump Sealing Ring YC.JG.MY001052 $11.95 | $11.95 | |
| 13 | Centrifugal Motor BC.AG.SS001028 $453.00 | $453.00 | |
| 14 | Motor Sealing Ring (OD= 46.8 mm) YC.JG.MY001828 $10.60 | $10.60 | |
| 15 | Solenoid Valve Module BC.AG.SS001073 $61.00 | $61.00 | |
| 16 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05 | $2.05 | |
| 17 | Mist Spray Lance Shell YC.JG.ZS007536 $30.00 | $30.00 | |
| 18 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05 | $2.05 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
