DJI Agras T70P Landing Gear
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T70P assemblies (18)
- Spray Tank 1 (38)
- Spray Tank 1 (2) (1)
- Impeller Pump (11)
- Flow Meter (20)
- Omnidirectional Radar Module (1)
- Spray Lance (18)
- Cable Distribution Board (21)
- Front Frame 1 (19)
- Front Frame 2 (31)
- Middle Frame (31)
- Arm 3 (51)
- Landing Gear (43)
- Propellers (12)
- Lifting System Winch (23)
- Misting Spray Lance (18)
- Spreading Spray Tank (25)
- Spreading Spinner Disk (20)
- Spreading Auger (38)

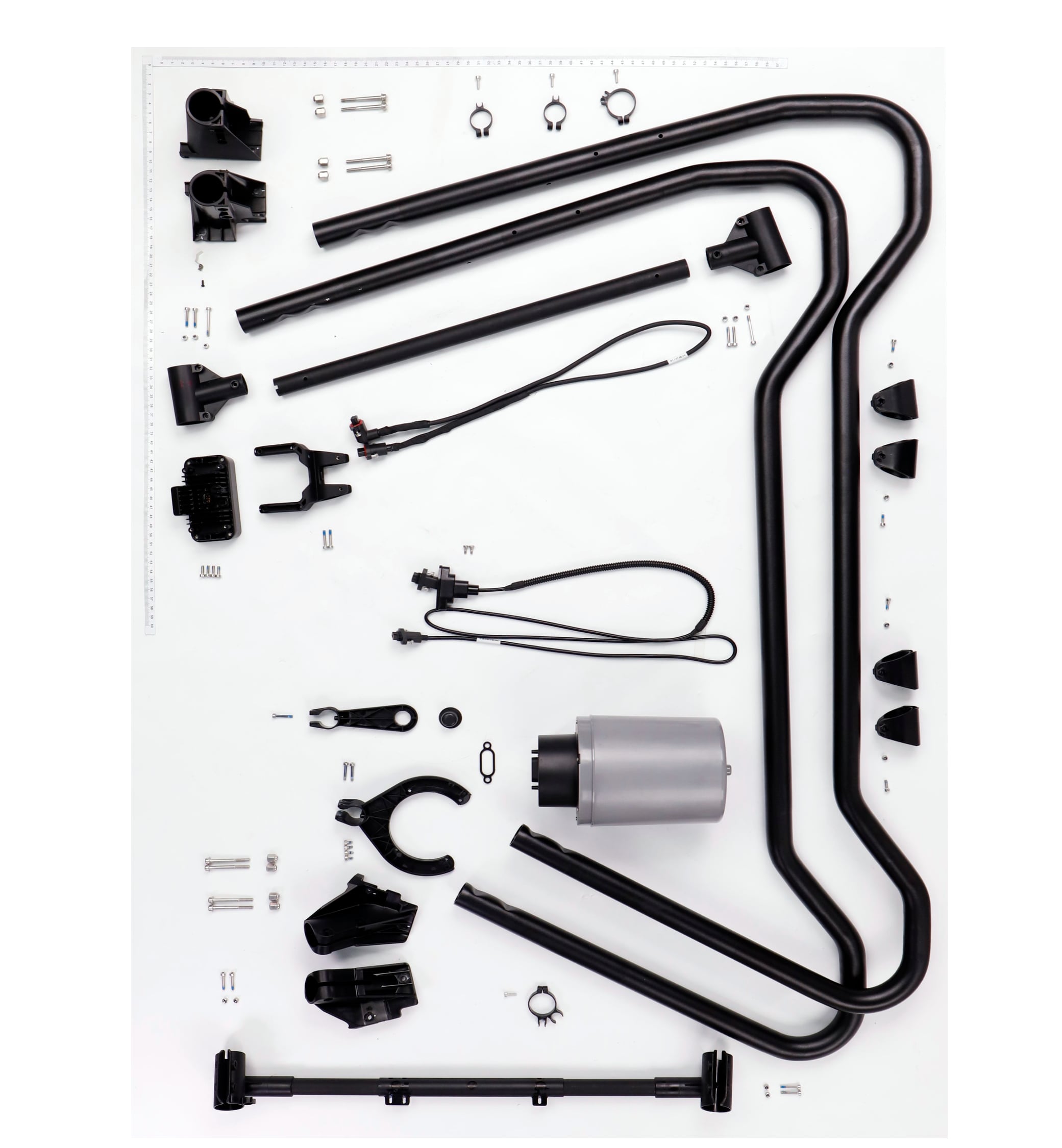

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Screw T30-HC01000100-057030-5103-N YC.ST.LL000543 $0.65 | $0.65 | |
| 2 | Landing Gear Cable Clamp A YC.JG.ZS006380 $8.00 | $8.00 | |
| 3 | Screw (M40-HC04000140-070040-5103-Y) YC.ST.LL000607 $1.00 | $1.00 | |
| 4 | Nut (M40-HX055030-5103) YC.ST.LM000096 $1.00 | $1.00 | |
| 5 | Landing Gear Fixing Piece (Front Right) YC.JG.ZS006641 $30.00 | $30.00 | |
| 6 | Landing Gear Fixing Piece (Front Left) YC.JG.ZS006642 $30.00 | $30.00 | |
| 7 | Landing Gear Conductive Gasket YC.JG.BJ003094 $2.00 | $2.00 | |
| 8 | Screw (T25-HC00600050-040010-3123-N) YC.ST.LL000142 $1.00 | $1.00 | |
| 9 | Screw M30-HC1880-55-85 YC.WJ.L00873 $3.05 | $3.05 | |
| 10 | Screw M30-HC02800070-055030-0003-Y YC.ST.LL000017 $2.05 | $2.05 | |
| 11 | M3 Nut YC.WJ.L00877 $2.05 | $2.05 | |
| 12 | Landing Gear Y-tee Part YC.JG.ZS006560 $16.00 | $16.00 | |
| 13 | Spotlight Signal Cable (Long) YC.XC.XX001393 $47.00 | $47.00 | |
| 14 | Spotlight Bracket YC.JG.ZS006301 $14.00 | $14.00 | |
| 15 | Spotlight BC.AG.SS001020 $207.90 | $207.90 | |
| 16 | Screw M30-HC1880-55-85 YC.WJ.L00873 $3.05 | $3.05 | |
| 17 | Screw M30-HC100100-55-85 YC.WJ.L00871 $2.05 | $2.05 | |
| 18 | Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 $2.05 | $2.05 | |
| 19 | Rear Radar Signal Cable YC.XC.XX001424 $77.00 | $77.00 | |
| 20 | Anti-Wear Rubber Stopper YC.JG.MY001575 $2.00 | $2.00 | |
| 21 | Radar Supporting Piece (Right) YC.JG.ZS003492 $2.50 | $2.50 | |
| 22 | Screw M30-HC1880-55-85 YC.WJ.L00873 $3.05 | $3.05 | |
| 23 | Rubber Pad YC.JG.MY001131 $4.00 | $4.00 | |
| 24 | Screw M30-HC1880-55-85 YC.WJ.L00873 $3.05 | $3.05 | |
| 25 | Radar Supporting Piece (Left) YC.JG.ZS004711 $8.00 | $8.00 | |
| 26 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 27 | Landing Gear Fixing Piece (Rear Left) YC.JG.ZS006126 $30.00 | $30.00 | |
| 28 | Landing Gear Fixing Piece (Rear Right) YC.JG.ZS006127 $30.00 | $30.00 | |
| 29 | Screw M30-HC1880-55-85 YC.WJ.L00873 $3.05 | $3.05 | |
| 30 | M3 Nut YC.WJ.L00877 $2.05 | $2.05 | |
| 31 | Screw T30-HC01000100-057030-5103-N YC.ST.LL000543 $0.65 | $0.65 | |
| 32 | Landing Gear Cable Clamp B YC.JG.ZS006379 $8.00 | $8.00 | |
| 33 | Landing Gear Crossbeam (Rear) YC.JG.ZS006813 $45.00 | $45.00 | |
| 34 | M3 Nut YC.WJ.L00877 $2.05 | $2.05 | |
| 35 | Screw M30-HC1880-55-85 YC.WJ.L00873 $3.05 | $3.05 | |
| 36 | Rear Radar Module BC.AG.SS001136 $2,001.00 | $2,001.00 | |
| 37 | Bottom Rubber Pad YC.JG.ZS003558 $11.95 | $11.95 | |
| 38 | M3 Nut YC.WJ.L00877 $2.05 | $2.05 | |
| 39 | Screw M30-HC100100-55-85 YC.WJ.L00871 $2.05 | $2.05 | |
| 41 | Landing Gear Crossbeam (Front) YC.JG.XW000200 $45.00 | $45.00 | |
| 42 | Landing Gear Aluminum Tube YC.JG.BJ003078 $114.00 | $114.00 | |
| 43 | Landing Gear Cable Clip YC.JG.ZS003725 $3.10 | $3.10 | |
| 44 | Screw T30-HC01000100-057030-5103-N YC.ST.LL000543 $0.65 | $0.65 |
