DJI
Buckle Module (T70P/T50/T25P) BC.AG.SS000701
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

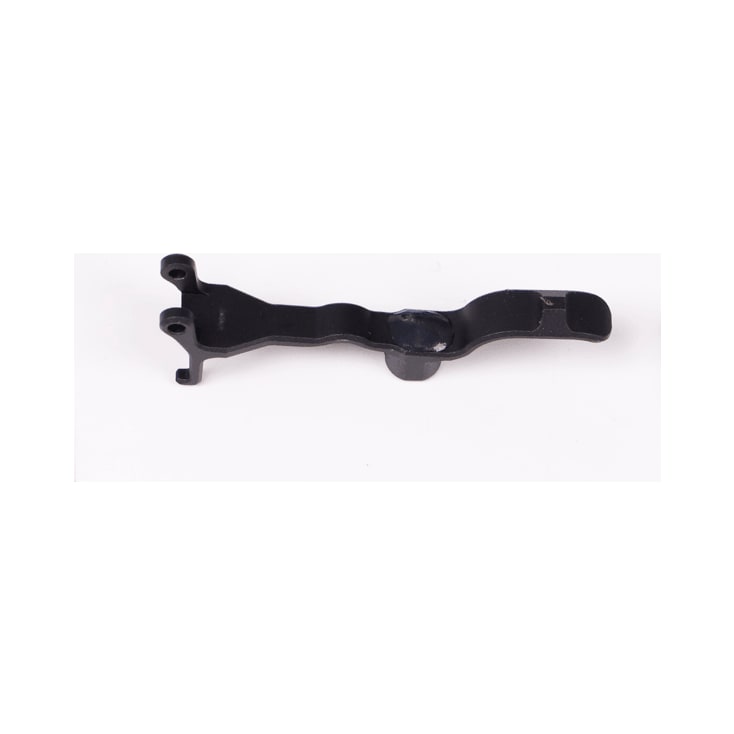

A single buckle module code covers the DJI Agras T70P, T50 and T25P: this is the spring-loaded catch in the folding-arm lock that helps hold each arm out in its flight position.
| Part number | BC.AG.SS000701 |
| Fits | DJI Agras T70P, T50, T25P |
| Parts diagram | T70P arm (sheet 3), callout 30; T50 M1 arm, callout 31; T50 M3 arm, callout 36; T25P M3 arm, callout 20 |
Every one of these arm diagrams draws it with a buckle torsion spring, buckle rotation shaft and E-circlip. Arms folded every day and bounced around on a ute tray or trailer wear the lock steadily, and a buckle that is cracked, bent or slow to return leaves it feeling loose. Treat play at a locked arm joint as a reason not to fly until it is fixed. Because the code is shared, one spare suits a mixed fleet of these three aircraft.
Worth inspecting in the same job are the locking piece arm shaft, the locking piece fixing screw bolt and, on the T50, the connection rod.
