DJI

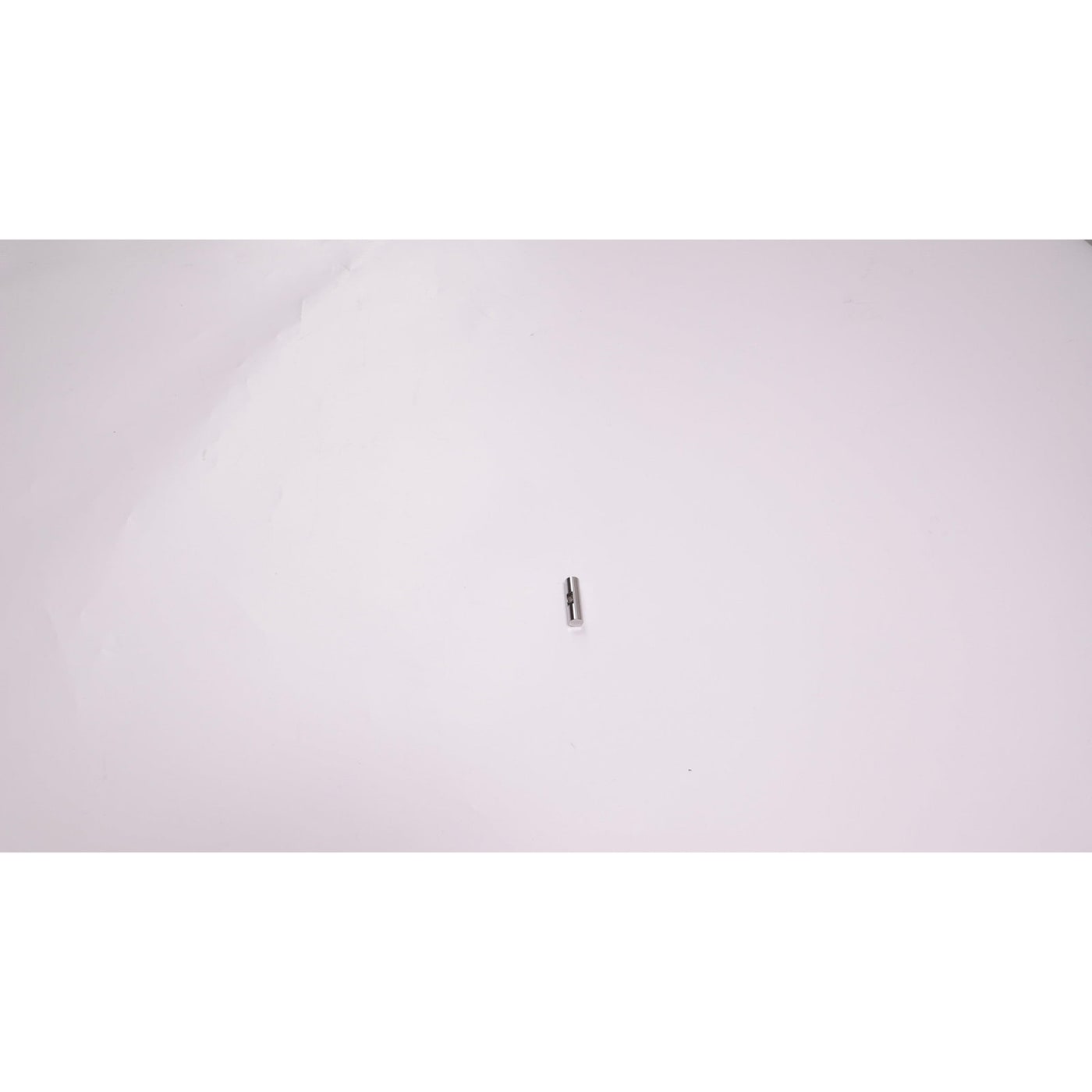

Locking Piece Aircraft Arm Shaft (T70P/T50/T25P) YC.JG.QX002089
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Arm lock shaft for the DJI Agras T70P, T50 and T25P. It is one of the pieces inside the locking mechanism at each arm fold, the latch that keeps a folding arm straight and rigid in flight once its handle is closed.
| Part number | YC.JG.QX002089 |
| Fits | DJI Agras T70P, T50, T25P |
| Parts diagram | T70P M3 arm, callout 35; T50 M1 arm, callout 35; T50 M3 arm, callout 32; T25P M3 arm, callout 17 |
The T50 uses a different locking handle and connection rod from the T70P and T25P, but all three aircraft share this shaft code. Replace a shaft that is bent, scored or worn. A locked arm that still rocks at the hinge, or a handle that binds partway through its travel, is a reason to strip the lock and inspect it. Clean out dried chemical and grit from around the lock before fitting the new shaft.
With the lock apart, look over the buckle module and the locking piece fixing screw bolt as well.
Why AGX?
We know you have a lot of options, but here's why you should shop with us.
Freight included
Kit orders are delivered to your farm anywhere in Australia at no extra cost.
Training available
Add onsite setup and training and fly the aircraft with one of our pilots before it goes to work.
Licensing help
We stay with you through the RePL, type rating, ReOC, and chemical licence rather than waving you off at the gate.

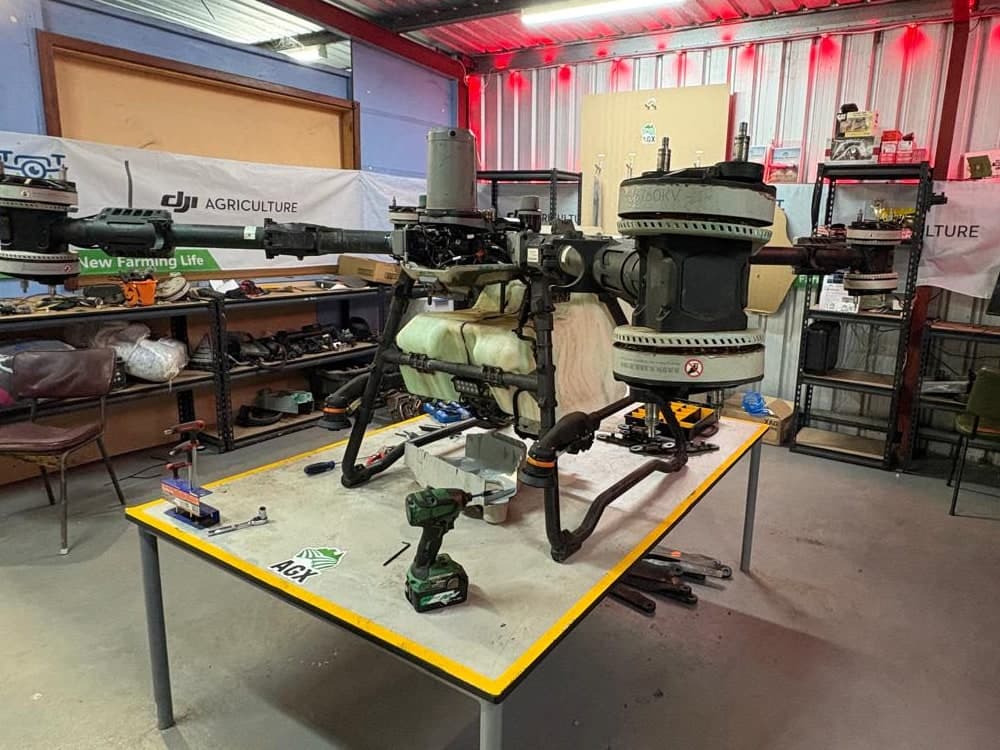

Parts on the shelf
