DJI Agras T70P Impeller Pump
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T70P assemblies (18)
- Spray Tank 1 (38)
- Spray Tank 1 (2) (1)
- Impeller Pump (11)
- Flow Meter (20)
- Omnidirectional Radar Module (1)
- Spray Lance (18)
- Cable Distribution Board (21)
- Front Frame 1 (19)
- Front Frame 2 (31)
- Middle Frame (31)
- Arm 3 (51)
- Landing Gear (43)
- Propellers (12)
- Lifting System Winch (23)
- Misting Spray Lance (18)
- Spreading Spray Tank (25)
- Spreading Spinner Disk (20)
- Spreading Auger (38)

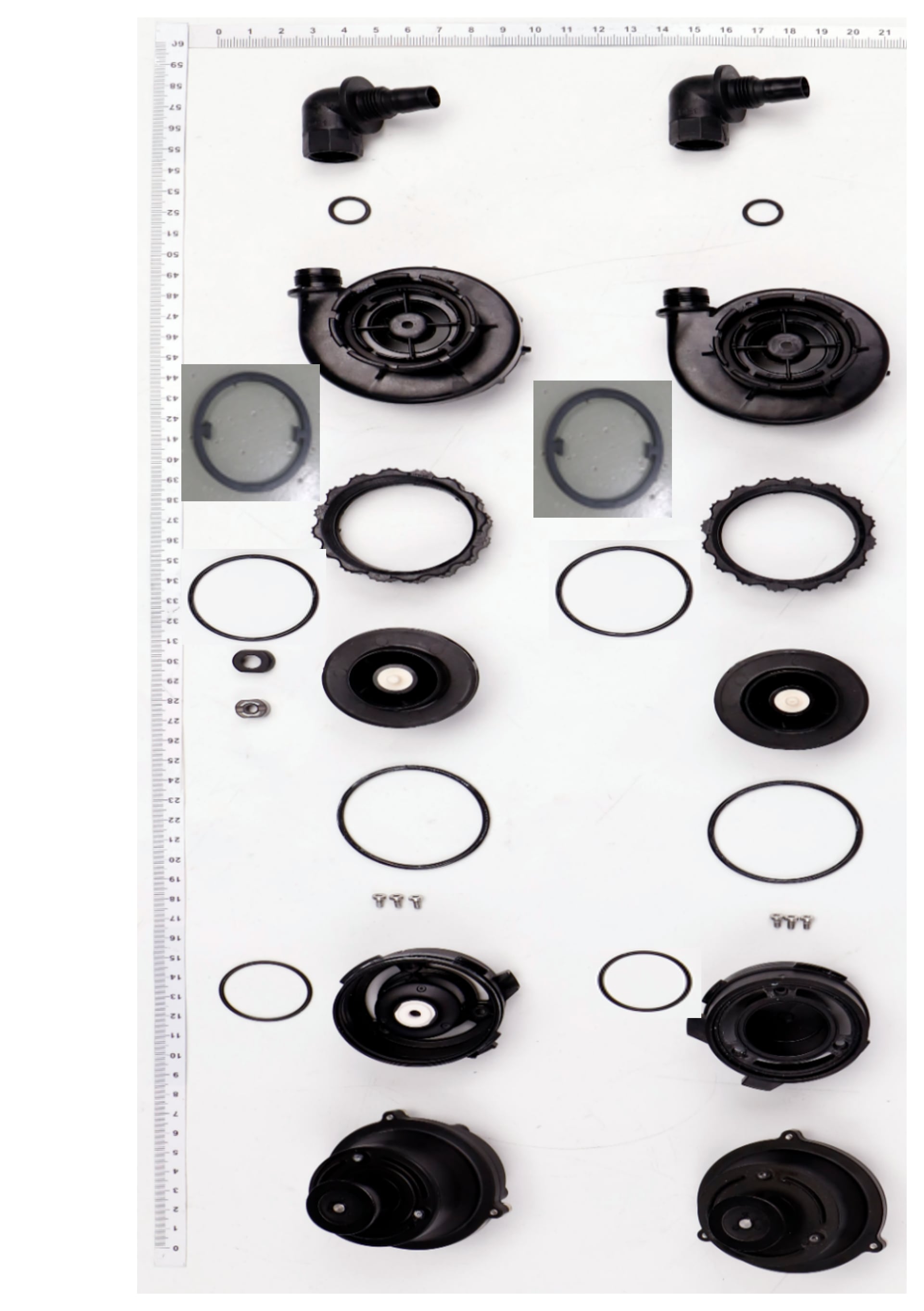

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Impeller Pump Curving Connector YC.JG.ZS006175 $7.55 | $7.55 | |
| 2 | Curving Connector Sealing Ring YC.JG.MY001830 $9.00 | $9.00 | |
| 3 | Pump Shell YC.JG.ZS006166 $22.55 | $22.55 | |
| 4 | Y-tee Part Sealing Pad YC.JG.MY001053 $6.00 | $6.00 | |
| 5 | Water Outlet Rotation Cover YC.JG.ZS002233 $9.50 | $9.50 | |
| 6 | Motor Sealing Ring (OD= 46.8 mm) YC.JG.MY001828 $10.60 | $10.60 | |
| 9 | Pump Sealing Ring YC.JG.MY001052 $11.95 | $11.95 | |
| 10 | Screw (M25-HC00500050-050020-5104-N) YC.ST.LL000717 $0.65 | $0.65 | |
| 11 | Sealing Ring (OD=31.4 mm) YC.JG.MY001315 $3.15 | $3.15 | |
| 12 | Spacing Sleeve YC.JG.ZS006167 $22.55 | $22.55 | |
| 13 | Impeller Pump Motor BC.AG.SS001033 $453.00 | $453.00 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
