DJI

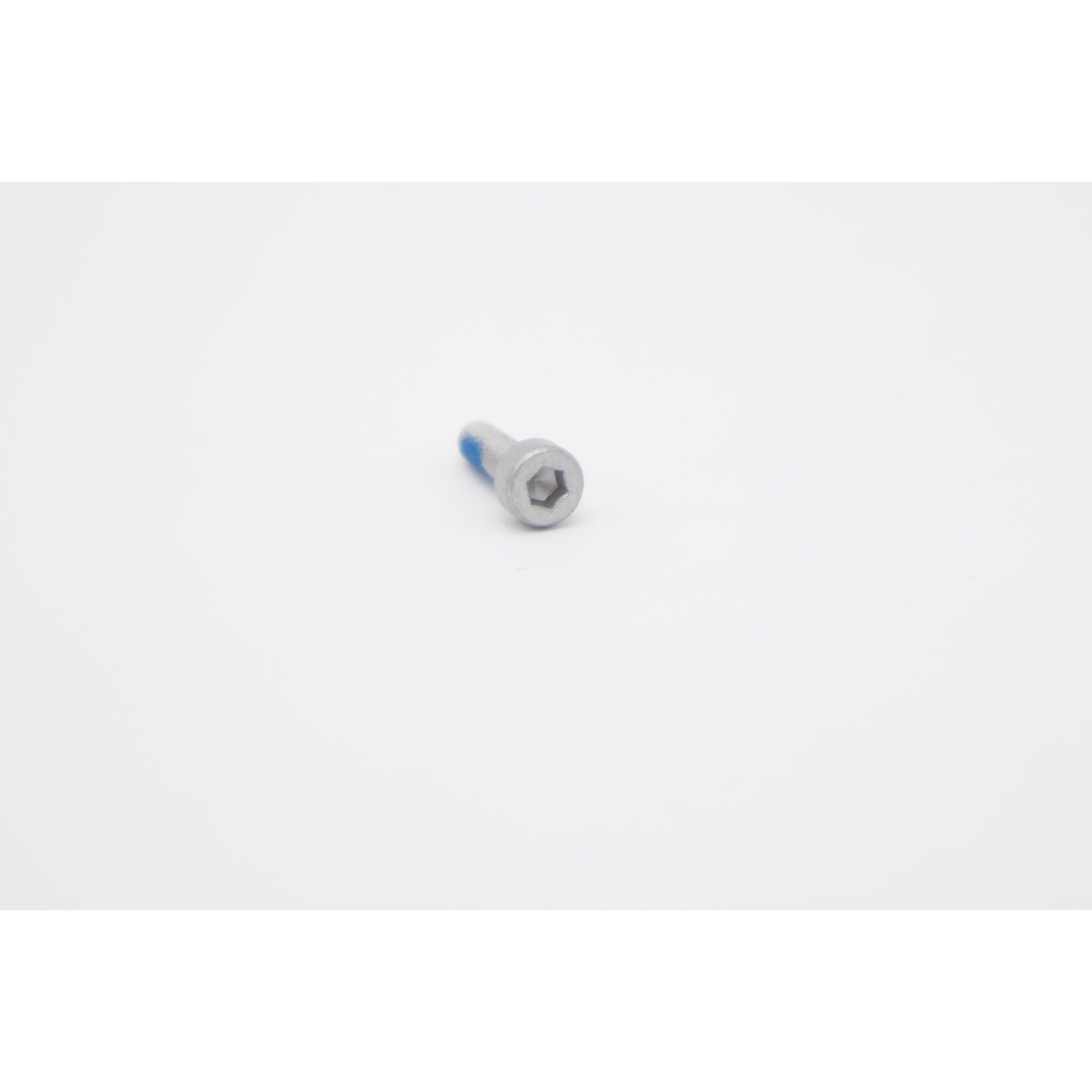

Screw M40-HC01400140-070039-4105-Y (T70P/T50/T25P) YC.ST.LL000148
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
This screw, DJI spec M40-HC01400140-070039-4105-Y, is used across the DJI Agras T70P, T50 and T25P: on the arm sheets, the T50 front and middle frame, and the T25P front and rear frame.
| Part number | YC.ST.LL000148 |
| Fits | DJI Agras T70P, T50, T25P |
| Parts diagram | T70P arm 3, callout 33; T50 front frame, callout 23; T50 middle frame, callout 26; T50 M1 aircraft arm, callout 27; T50 M3 aircraft arm, callout 40; T25P front frame (sheet 2), callout 34; T25P rear frame, callout 2; T25P M3 aircraft arm, callout 15 |
With eight placements over three aircraft it is a useful screw to keep a few of. Discard any with a rounded head, a damaged thread or rust, and start each one by hand before tightening.
On the T50 front frame it is drawn beside the front shell sealing stopper, and on the T70P arm sheet next to the locking piece connection rod. Matching a loose screw? Contact us with a photo and where it came from.
