DJI Agras T70P Flow Meter

Official DJI parts diagram and material list.

Pricing is per single item unless the part description says otherwise.

All T70P assemblies (18)

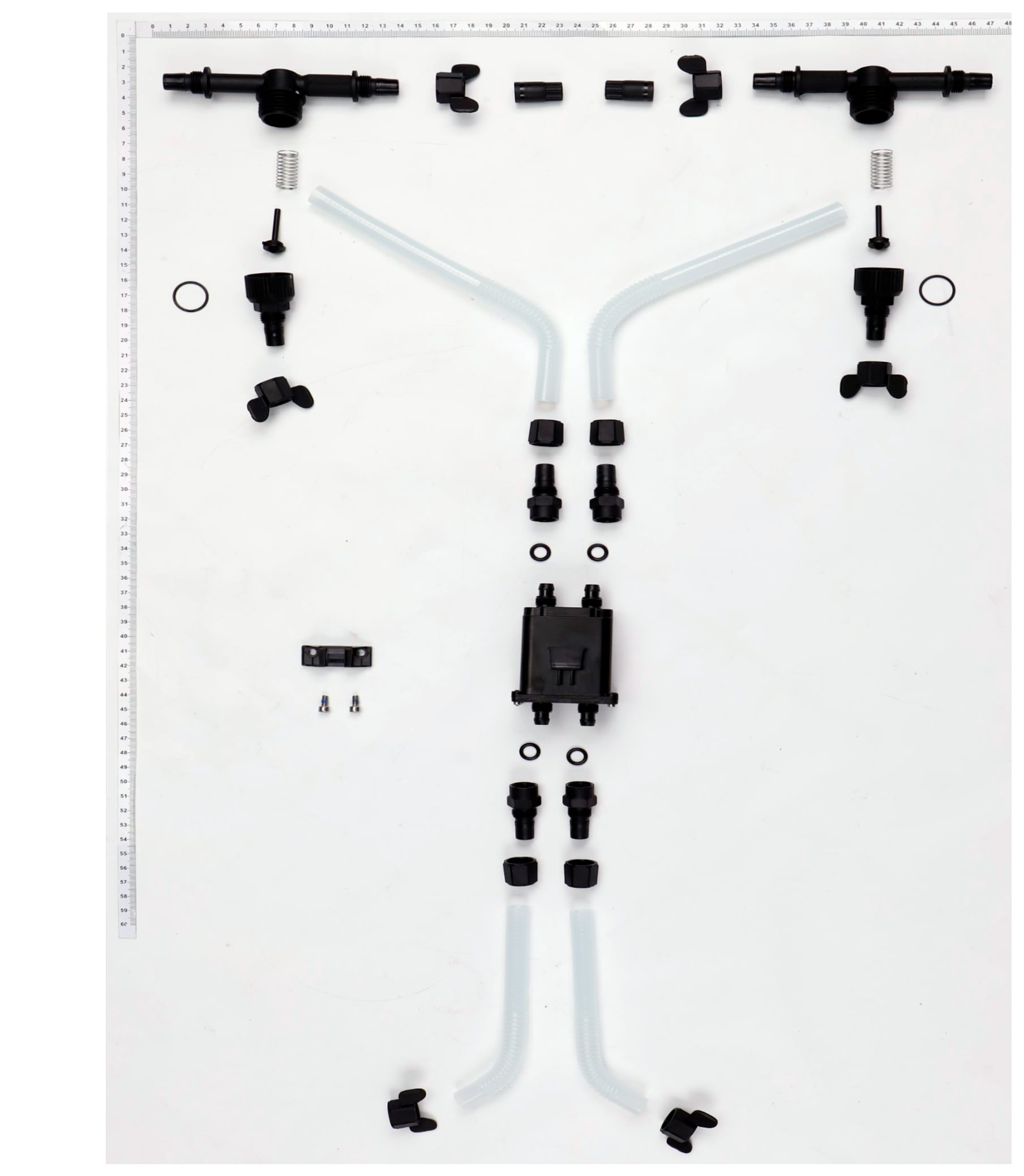

Parts Diagram

Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.

No.	Part	$ Each (inc. GST)
1	Thumb Nut YC.JG.ZS006171 $2.30	$2.30
2	Hose Y-tee Part YC.JG.ZS006172 $8.00	$8.00
3	Single Connector Rubber Stopper YC.JG.ZS006115 $3.10	$3.10
4	One-Way Valve Spring YC.JG.TT000285 $1.55	$1.55
5	Valve Core Sealing Ring YC.JG.MY001775 $9.00	$9.00
6	One-Way Valve Sealing Ring YC.JG.MY001774 $1.55	$1.55
7	One-Way Valve YC.JG.ZS006170 $7.55	$7.55
8	Flow Meter Water Outlet Hose YC.JG.JS000069 $14.00	$14.00
9	Thumb Nut YC.JG.ZS006171 $2.30	$2.30
10	Hose Nut YC.JG.ZS006165 $1.55	$1.55
11	Flow Meter Adapter YC.JG.ZS006199 $3.10	$3.10
12	Flow Meter Adapter Sealing Ring YC.JG.MY001790 $4.55	$4.55
13	Flow Meter Module BC.AG.SS001031 $634.50	$634.50
14	Flow Meter Bracket YC.JG.ZS004712 $1.65	$1.65
15	Screw (M40-HC080080-68-85) YC.WJ.L01234 $3.60	$3.60
16	Flow Meter Adapter Sealing Ring YC.JG.MY001790 $4.55	$4.55
17	Flow Meter Adapter YC.JG.ZS006199 $3.10	$3.10
18	Hose Nut YC.JG.ZS006165 $1.55	$1.55
19	Flow Meter Water Inlet Hose YC.JG.JS000072 $14.00	$14.00
20	Thumb Nut YC.JG.ZS006171 $2.30	$2.30
