DJI Agras T70P Spreading Spinner Disk
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T70P assemblies (18)
- Spray Tank 1 (38)
- Spray Tank 1 (2) (1)
- Impeller Pump (11)
- Flow Meter (20)
- Omnidirectional Radar Module (1)
- Spray Lance (18)
- Cable Distribution Board (21)
- Front Frame 1 (19)
- Front Frame 2 (31)
- Middle Frame (31)
- Arm 3 (51)
- Landing Gear (43)
- Propellers (12)
- Lifting System Winch (23)
- Misting Spray Lance (18)
- Spreading Spray Tank (25)
- Spreading Spinner Disk (20)
- Spreading Auger (38)

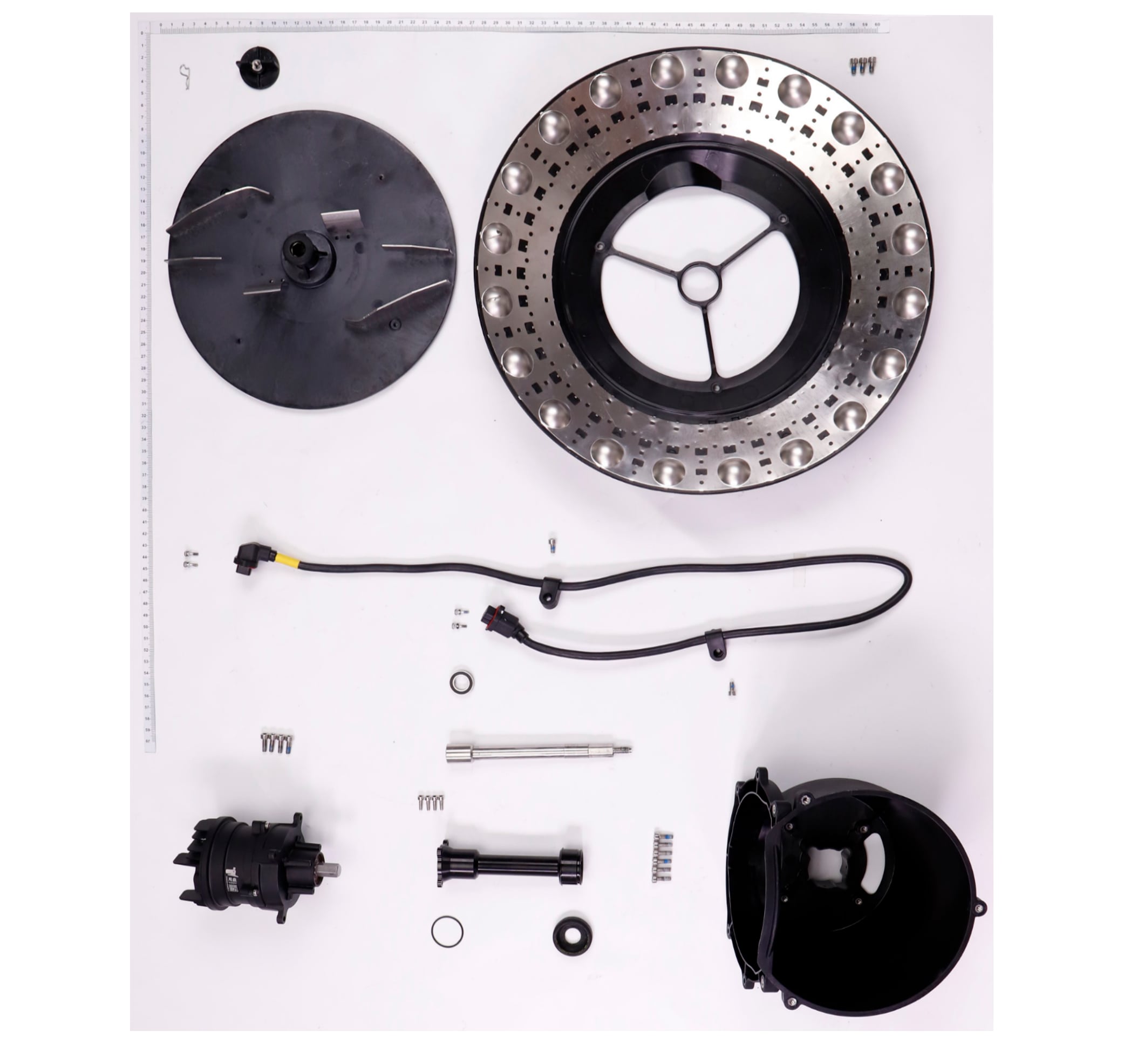

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Thumb Nut YC.JG.ZS006745 $15.05 | $15.05 | |
| 2 | R-Type Pin YC.JG.TT000203 $0.90 | $0.90 | |
| 3 | Spinner Disk YC.JG.ZS006256 $78.00 | $78.00 | |
| 4 | Screw M40-HC080080-68-85 YC.WJ.L01234 $3.60 | $3.60 | |
| 5 | Screw (M25-HCW00960040-055020-5103-Y) YC.ST.LL000698 $0.65 | $0.65 | |
| 6 | Spinner Disk Cable YC.XC.XX001405 $46.00 | $46.00 | |
| 7 | Bearing (OD=21 mm) YC.ST.CT000163 $5.00 | $5.00 | |
| 8 | Screw (M40-HC01200120-072040-5103-Y) YC.ST.LL000705 $0.65 | $0.65 | |
| 9 | Spinner Disk Shaft YC.JG.QX004442 $51.00 | $51.00 | |
| 10 | Screw M30-HC100100-55-85 YC.WJ.L00871 $2.05 | $2.05 | |
| 11 | Spinner Disk Motor BC.AG.SS001064 $633.00 | $633.00 | |
| 12 | Shaft Sleeve Module BC.AG.SS001063 $142.00 | $142.00 | |
| 13 | Spinner Disk Shaft Sealing Ring YC.JG.MY001800 $6.00 | $6.00 | |
| 14 | Spinner Disk Shaft Dustproof Cover YC.JG.MY001799 $2.00 | $2.00 | |
| 15 | Screw (M40-HC01200120-072040-5103-Y) YC.ST.LL000705 $0.65 | $0.65 | |
| 16 | Spinner Disk Shell YC.JG.ZS006130 $50.00 | $50.00 | |
| 17 | One-Way Valve Core Sealing Ring YC.JG.MY001329 $0.90 | $0.90 | |
| 18 | Screw M40-HC080080-68-85 YC.WJ.L01234 $3.60 | $3.60 | |
| 19 | Baffle YC.JG.ZS006376 $70.00 | $70.00 | |
| 20 | Screw (M40-HC01200120-072040-5103-Y) YC.ST.LL000705 $0.65 | $0.65 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
