DJI Agras T70P Front Frame 1
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T70P assemblies (18)
- Spray Tank 1 (38)
- Spray Tank 1 (2) (1)
- Impeller Pump (11)
- Flow Meter (20)
- Omnidirectional Radar Module (1)
- Spray Lance (18)
- Cable Distribution Board (21)
- Front Frame 1 (19)
- Front Frame 2 (31)
- Middle Frame (31)
- Arm 3 (51)
- Landing Gear (43)
- Propellers (12)
- Lifting System Winch (23)
- Misting Spray Lance (18)
- Spreading Spray Tank (25)
- Spreading Spinner Disk (20)
- Spreading Auger (38)

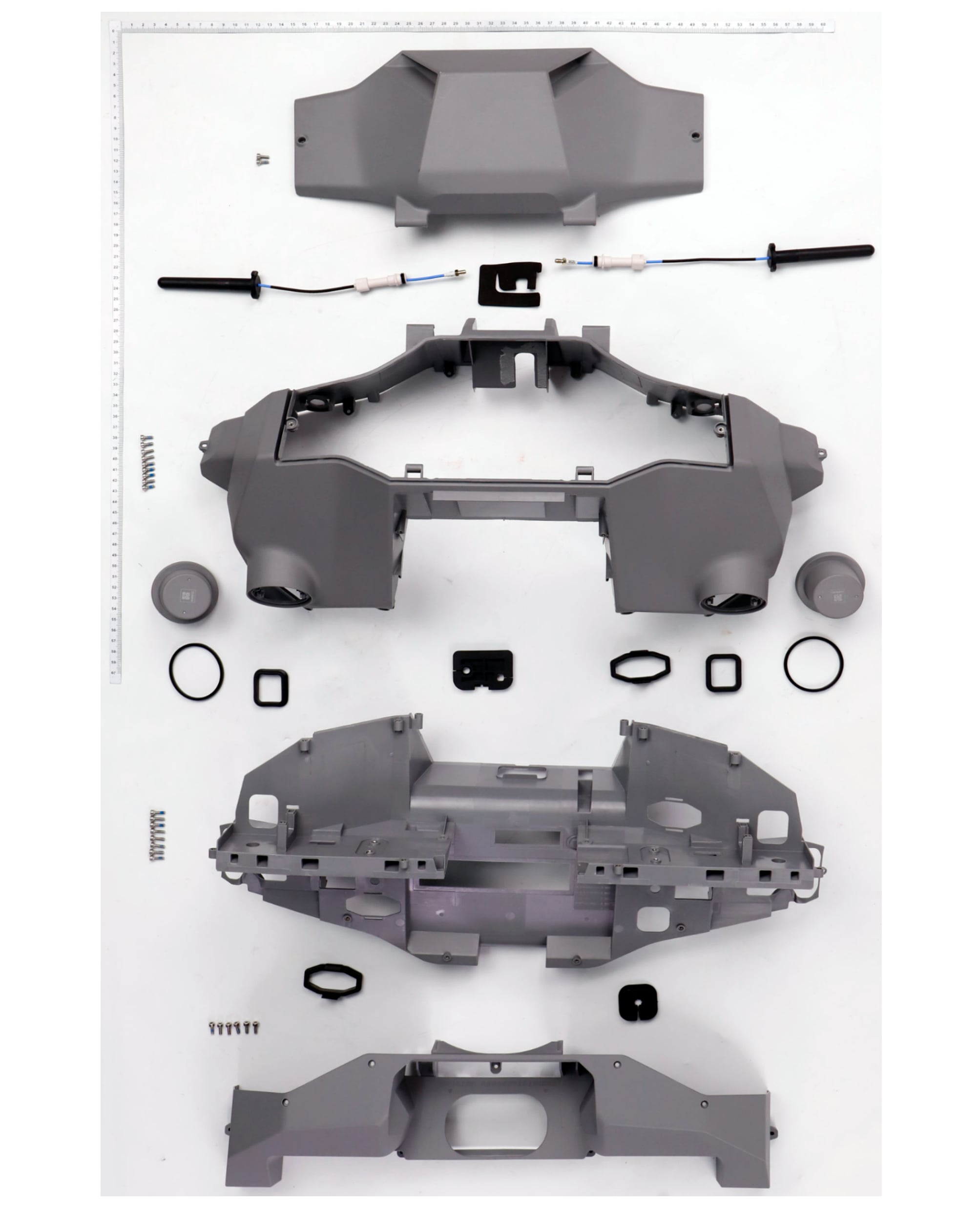

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Front Cover of Front Shell YC.JG.ZS004469 $70.00 | $70.00 | |
| 2 | Screw M30-HC080080-55-85 YC.WJ.L00868 $3.05 | $3.05 | |
| 3 | SDR Antenna (Front) YC.DZ.AA000462 $46.55 | $46.55 | |
| 4 | Screw M30-HC080080-55-85 YC.WJ.L00868 $3.05 | $3.05 | |
| 5 | Front Shell Module YC.JG.ZS004470 $92.00 | $92.00 | |
| 6 | RTK Antenna Module BC.AG.SS001034 $176.00 | $176.00 | |
| 7 | RTK Rubber Ring YC.JG.MY001073 $2.50 | $2.50 | |
| 8 | Power Distribution Board Cable Sealing Ring YC.JG.MY001387 $4.00 | $4.00 | |
| 9 | Screw M30-HC100100-55-85 YC.WJ.L00871 $2.05 | $2.05 | |
| 10 | Cable Rubber Seal YC.JG.MY001846 $2.00 | $2.00 | |
| 11 | Screw M30-HC080080-55-85 YC.WJ.L00868 $3.05 | $3.05 | |
| 12 | Power Distribution Board Upper Cover YC.JG.ZS004612 $61.00 | $61.00 | |
| 13 | Front Shell Sealing Stopper YC.JG.MY001079 $2.50 | $2.50 | |
| 14 | Front Shell Bottom Plate YC.JG.ZS006145 $211.00 | $211.00 | |
| 15 | Cable Rubber Seal YC.JG.MY001846 $2.00 | $2.00 | |
| 16 | Power Distribution Board Cable Sealing Ring YC.JG.MY001387 $4.00 | $4.00 | |
| 17 | RTK Rubber Ring YC.JG.MY001073 $2.50 | $2.50 | |
| 18 | Cable Rubber Stopper YC.JG.MY001453 $13.00 | $13.00 | |
| 19 | Cable Threading Hole Foam Pad YC.JG.MQ002999 $5.00 | $5.00 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
