DJI Agras T70P Cable Distribution Board

Official DJI parts diagram and material list.

Pricing is per single item unless the part description says otherwise.

All T70P assemblies (18)

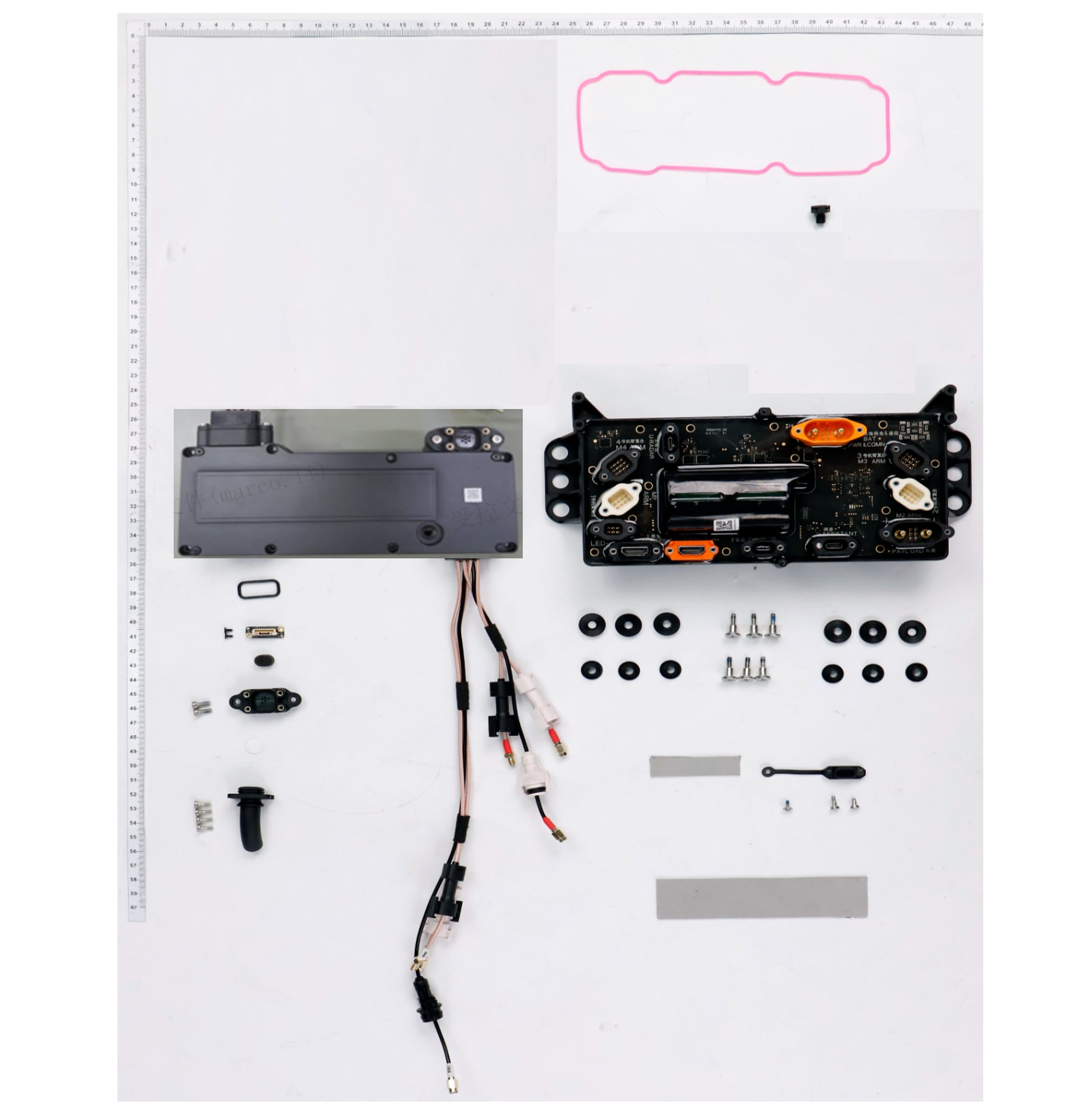

Parts Diagram

Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.

No.	Part	$ Each (inc. GST)
1	Aerial-Electronics Module (Overseas) BC.AG.SS001137 $3,009.00	$3,009.00
2	Barometer Module Sealing Ring YC.JG.MY000699 $0.95	$0.95
3	Barometer Board BC.AG.PP000520 $46.00	$46.00
4	T20-PC00400040-040010-0323-N YC.WJ.LL000396 $0.97	$0.97
5	Avionics_Barometer Protection Foam YC.PM.QT000137 $2.05	$2.05
6	Screw M30-HC080080-55-85 YC.WJ.L00868 $3.05	$3.05
7	Barometer Outer Shell YC.JG.ZS002301 $6.00	$6.00
8	Barometer Waterproof Permeability Film YC.QT.QT000167 $3.05	$3.05
9	Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 $2.05	$2.05
10	Barometer Curve Connector YC.JG.MY001349 $4.00	$4.00
11	Thermally Conductive Pad (125.35 x 27.7 mm) YC.JG.MQ002463 $4.00	$4.00
12	Screw M20-HPW00600060-055016-5103-Y YC.WJ.LL000235 $0.75	$0.75
13	Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 $2.05	$2.05
14	Type-C Port Waterproof Cover YC.JG.MY000389 $3.05	$3.05
15	Thermally Conductive Pad (53.1 x 12.9 mm) YC.JG.MQ002623 $1.65	$1.65
16	Damping Pad A YC.JG.QX002311 $3.00	$3.00
17	Damping Pad B YC.JG.QX002312 $9.50	$9.50
18	M30-HC01450080-100020-5103-Y YC.ST.LL000226 $0.95	$0.95
19	Cable Distribution Board Module BC.AG.SS001024 $667.00	$667.00
20	Vent Trap YC.SJ.S00717 $37.25	$37.25
21	Aerial-Electronics Module Sealing Ring YC.JG.MY001348 $4.00	$4.00
