DJI Agras T70P Misting Spray Lance
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T70P assemblies (18)
- Spray Tank 1 (38)
- Spray Tank 1 (2) (1)
- Impeller Pump (11)
- Flow Meter (20)
- Omnidirectional Radar Module (1)
- Spray Lance (18)
- Cable Distribution Board (21)
- Front Frame 1 (19)
- Front Frame 2 (31)
- Middle Frame (31)
- Arm 3 (51)
- Landing Gear (43)
- Propellers (12)
- Lifting System Winch (23)
- Misting Spray Lance (18)
- Spreading Spray Tank (25)
- Spreading Spinner Disk (20)
- Spreading Auger (38)

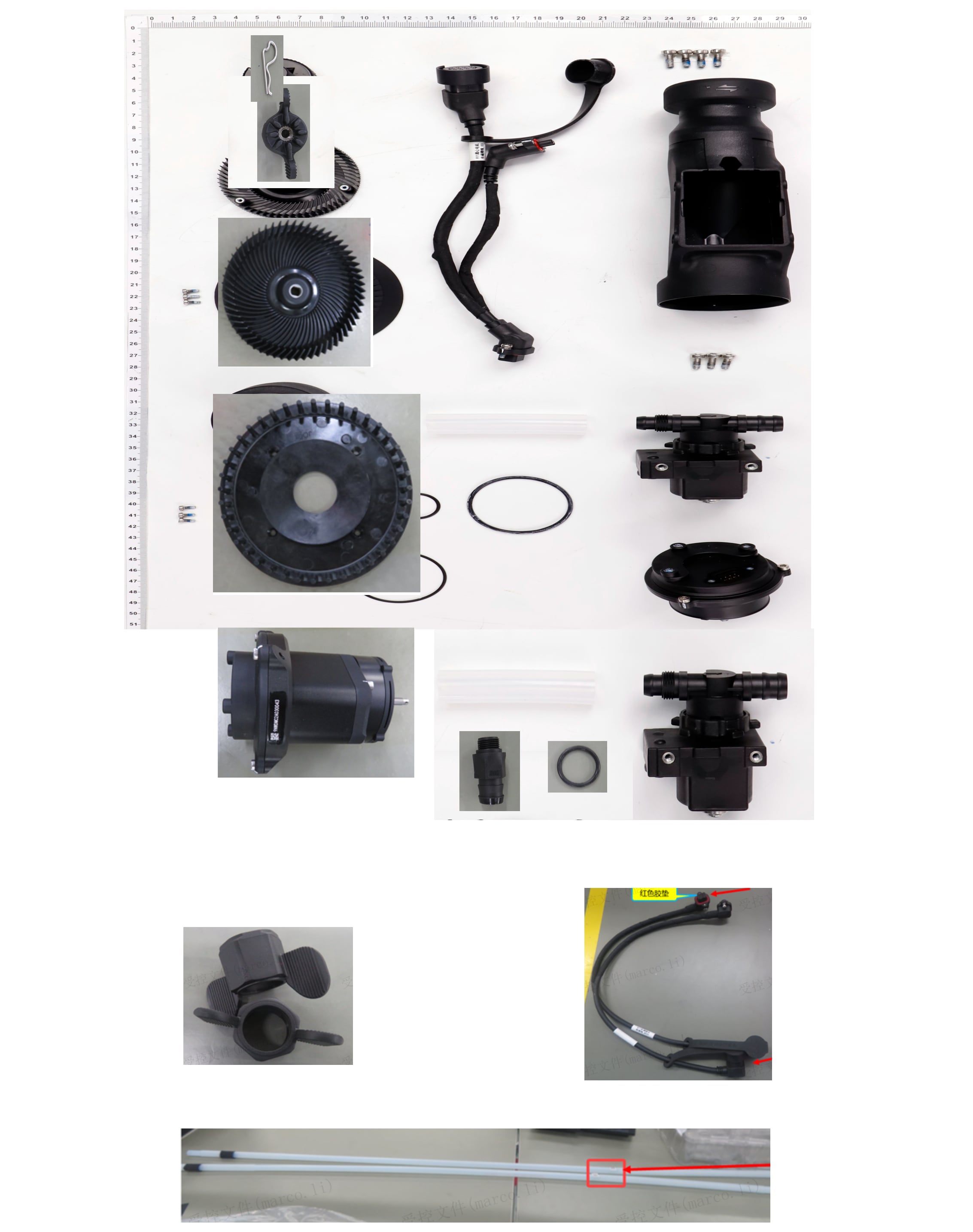

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | R-Type Pin YC.JG.TT000203 $0.90 | $0.90 | |
| 2 | Centrifugal Sprinkler Nut YC.JG.ZS004510 $1.80 | $1.80 | |
| 3 | Mist Sprinkler Lower Disk YC.JG.ZS006907 $23.00 | $23.00 | |
| 4 | Centrifugal Sprinkler Adapter Cable YC.XC.XX001394 $36.00 | $36.00 | |
| 5 | Screw (M25-HF00550038-040016-3126-Y) YC.ST.LL000381 $8.00 | $8.00 | |
| 6 | Mist Sprinkler Upper Disk YC.JG.ZS006906 $9.50 | $9.50 | |
| 7 | Sprinkler Soft Hose YC.JG.JS000067 $1.55 | $1.55 | |
| 8 | Mist Sprinkler Lower Motor BC.AG.SS001175 $259.00 | $259.00 | |
| 9 | Mist Sprinkler Funnel YC.JG.ZS006905 $23.00 | $23.00 | |
| 10 | Inlet Sealing Ring YC.JG.MY002043 $9.00 | $9.00 | |
| 11 | Solenoid Valve Module BC.AG.SS001073 $61.00 | $61.00 | |
| 12 | Screw (M40-HC01000100-072028-5103-N_01) YC.WJ.LL000232 $2.05 | $2.05 | |
| 13 | Mist Spray Lance Shell YC.JG.ZS007536 $30.00 | $30.00 | |
| 14 | Screw (M40-HC01000100-072028-5103-N_01) YC.WJ.LL000232 $2.05 | $2.05 | |
| 15 | Thumb Nut YC.JG.ZS006171 $2.30 | $2.30 | |
| 16 | ESC Sprinkler Adapter Cable YC.XC.XX001463 $30.00 | $30.00 | |
| Mist Sprinkler Upper Motor BC.AG.SS001174 $622.00 | $622.00 | ||
| Hose (Optional) YC.JG.JS000076 $15.00 | $15.00 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
