DJI Agras T70P Lifting System Winch
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T70P assemblies (18)
- Spray Tank 1 (38)
- Spray Tank 1 (2) (1)
- Impeller Pump (11)
- Flow Meter (20)
- Omnidirectional Radar Module (1)
- Spray Lance (18)
- Cable Distribution Board (21)
- Front Frame 1 (19)
- Front Frame 2 (31)
- Middle Frame (31)
- Arm 3 (51)
- Landing Gear (43)
- Propellers (12)
- Lifting System Winch (23)
- Misting Spray Lance (18)
- Spreading Spray Tank (25)
- Spreading Spinner Disk (20)
- Spreading Auger (38)

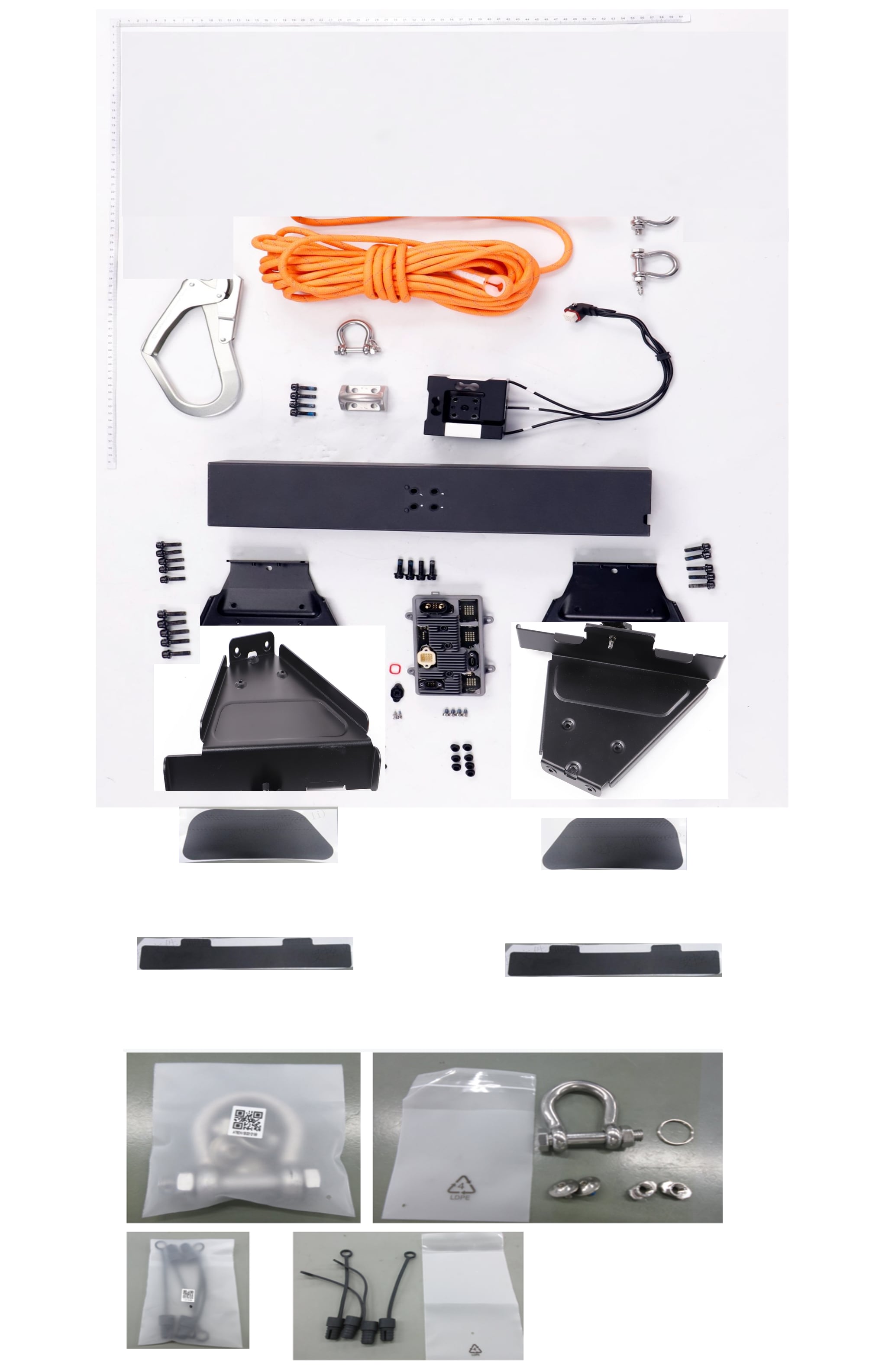

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Lifting Hook YC.ST.AS000061 $30.00 | $30.00 | |
| 2 | Screw (M60-HC02000180-100080-4203-Y) YC.ST.LL000696 $1.00 | $1.00 | |
| 3 | Lanyard Buckle YC.JG.FM000229 $46.00 | $46.00 | |
| 4 | Lift System Crossbeam YC.JG.QX004670 $99.00 | $99.00 | |
| 5 | Screw (M60-HC02000180-100080-4203-Y) YC.ST.LL000696 $1.00 | $1.00 | |
| 6 | Screw (M60-HO01930160-100033-4203-Y) YC.ST.LL000799 $1.00 | $1.00 | |
| 7 | Lift System Left Bracket YC.JG.BJ003490 $121.00 | $121.00 | |
| 8 | Knob YC.JG.ZS007220 $10.00 | $10.00 | |
| 9 | Knob Rubber Stopper YC.JG.MY002206 $3.00 | $3.00 | |
| 10 | E-Type Circlip (OD=7.6 mm) YC.JG.BJ003651 $1.00 | $1.00 | |
| 11 | Lift System Left Sticker YC.JG.MQ004348 $12.00 | $12.00 | |
| 12 | Lift System Top Sticker YC.JG.MQ004350 $11.00 | $11.00 | |
| 13 | Lift System Right Sticker YC.JG.MQ004349 $12.00 | $12.00 | |
| 14 | Screw (M40-HC00600060-072072-5103-Y) YC.ST.LL000659 $8.00 | $8.00 | |
| 15 | Lift System Right Bracket YC.JG.BJ003491 $121.00 | $121.00 | |
| 16 | Payload Lifting Control Module BC.AG.SS001123 $440.00 | $440.00 | |
| 17 | Screw (M60-HO01930160-100033-4203-Y) YC.ST.LL000799 $1.00 | $1.00 | |
| 18 | Three-Axis Force Sensor Module BC.AG.SS001124 $223.00 | $223.00 | |
| 19 | Damper Hook YC.ST.AS000051 $19.00 | $19.00 | |
| 20 | Lifting Rope YC.ST.AS000050 $58.00 | $58.00 | |
| 21 | T-Shaped Nut (M6) YC.JG.QX004806 $40.00 | $40.00 | |
| 22 | Screw (M40-HP00700070-150030-5103-Y) YC.ST.LL000779 $8.00 | $8.00 | |
| Hose Rubber Stopper YC.JG.MY001900 $6.00 | $6.00 |
