DJI Agras T70P Spreading Spray Tank
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T70P assemblies (18)
- Spray Tank 1 (38)
- Spray Tank 1 (2) (1)
- Impeller Pump (11)
- Flow Meter (20)
- Omnidirectional Radar Module (1)
- Spray Lance (18)
- Cable Distribution Board (21)
- Front Frame 1 (19)
- Front Frame 2 (31)
- Middle Frame (31)
- Arm 3 (51)
- Landing Gear (43)
- Propellers (12)
- Lifting System Winch (23)
- Misting Spray Lance (18)
- Spreading Spray Tank (25)
- Spreading Spinner Disk (20)
- Spreading Auger (38)

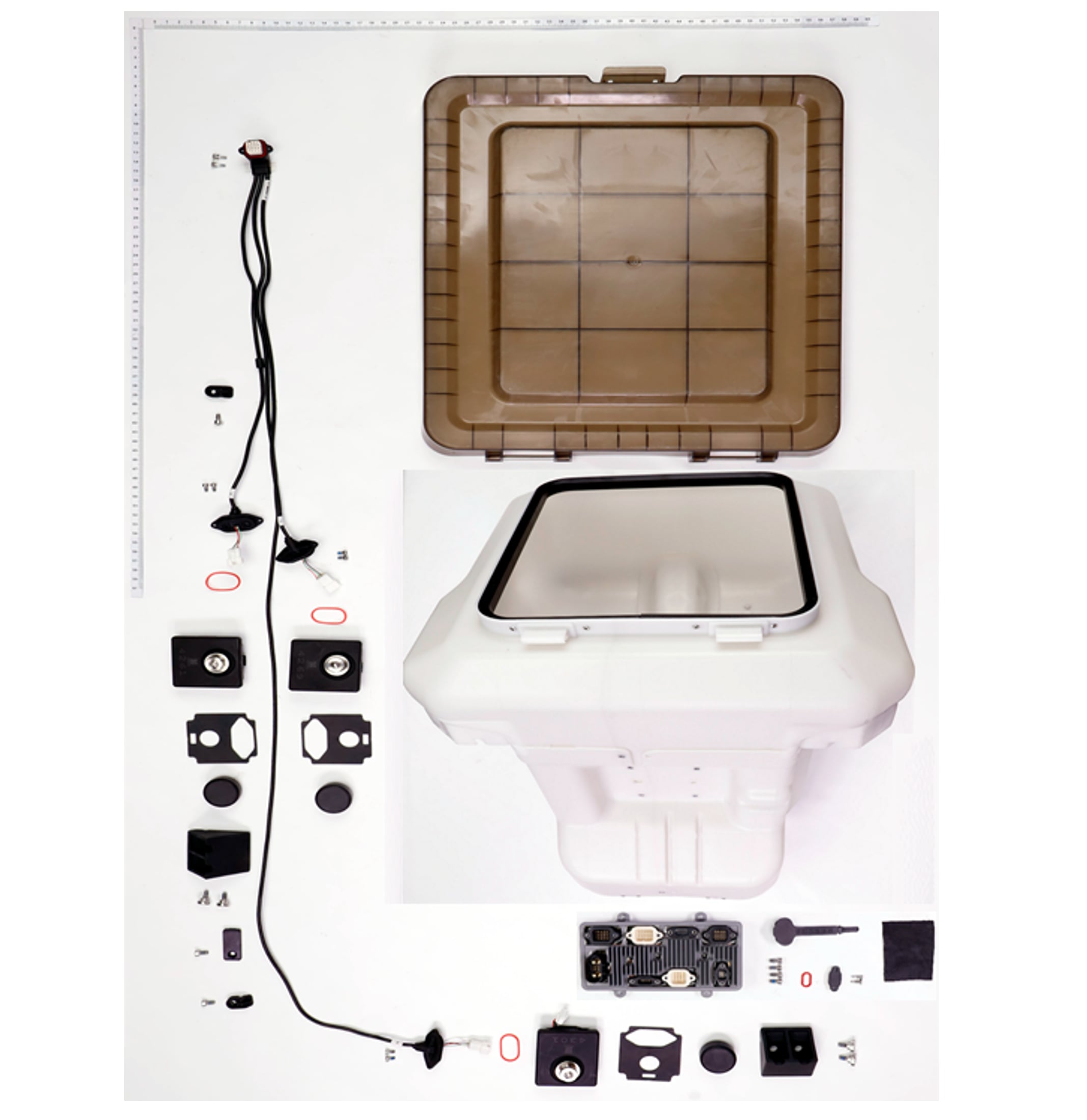

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Screw (M25-HCW00960040-055020-5103-Y) YC.ST.LL000698 $0.65 | $0.65 | |
| 2 | Weight Sensor Signal Cable YC.XC.XX001401 $72.00 | $72.00 | |
| 3 | Cable Clamp 01 YC.JG.ZS006138 $2.00 | $2.00 | |
| 4 | Screw M40-HC080080-68-85 YC.WJ.L01234 $3.60 | $3.60 | |
| 5 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 6 | Weight Sensor Module BC.AG.SS000887 $102.00 | $102.00 | |
| 7 | Damping Rubber Pad YC.JG.MQ002549 $4.00 | $4.00 | |
| 8 | Weight Sensor Rubber Cover YC.JG.MY001377 $9.00 | $9.00 | |
| 9 | Spread Tank Block YC.JG.MY001780 $8.00 | $8.00 | |
| 10 | Screw (M40-HC00600060-120030-0003-N) YC.ST.LL000668 $2.00 | $2.00 | |
| 11 | Screw M40-HC080080-68-85 YC.WJ.L01234 $3.60 | $3.60 | |
| 12 | Cable Clamp 02 YC.JG.ZS006139 $4.00 | $4.00 | |
| 13 | Screw M40-HC080080-68-85 YC.WJ.L01234 $3.60 | $3.60 | |
| 14 | Cable Clamp 01 YC.JG.ZS006138 $2.00 | $2.00 | |
| 15 | Spread Tank Block YC.JG.MY001780 $8.00 | $8.00 | |
| 16 | Screw (M40-HC00600060-120030-0003-N) YC.ST.LL000668 $2.00 | $2.00 | |
| 17 | Payload Control Board BC.AG.SS001068 $552.70 | $552.70 | |
| 18 | Screw M40-HC080080-68-85 YC.WJ.L01234 $3.60 | $3.60 | |
| 19 | Screw (M25-HCW00960040-055020-5103-Y) YC.ST.LL000698 $0.65 | $0.65 | |
| 20 | 4-pin Cable Rubber Cover YC.JG.ZS006290 $2.10 | $2.10 | |
| 21 | 4-pin Cable Sealing Ring YC.JG.MY001810 $2.00 | $2.00 | |
| 22 | Socket Rubber Stopper YC.JG.MY001832 $4.00 | $4.00 | |
| 23 | Spread Tank (100L) YC.JG.ZS006190 $418.00Get a Quote | $418.00 | Get a Quote |
| 24 | Screw (M40-HC01200120-072040-5103-Y) YC.ST.LL000705 $0.65 | $0.65 | |
| 25 | Spread Tank Cover YC.JG.ZS004569 $103.00 | $103.00 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
