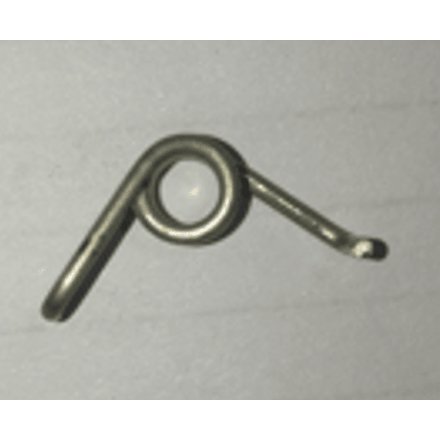

Buckle Torsion Spring (T70P/T50/T25P) YC.JG.TT000165
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
A torsion spring that loads the arm buckle on DJI Agras T70P, T50 and T25P aircraft. You will find it on the T70P arm 3 sheet, the T25P M3 aircraft arm sheet and the T50 M1 and M3 arm sheets.
| Part number | YC.JG.TT000165 |
| Fits | DJI Agras T70P, T50, T25P |
| Parts diagram | T70P arm 3, callout 28; T50 M1 aircraft arm, callout 33; T50 M3 aircraft arm, callout 38; T25P M3 aircraft arm, callout 18 |
A tired or snapped spring leaves the buckle slow to return, or it has to be pushed home by hand before the arm will hold. Before lifting the old spring out, see how its ends bear against the buckle so the new one goes in facing the same way, then cycle the buckle a few times to feel it spring back.
The buckle rotation shaft is drawn within a couple of numbers of it on every sheet. The T100 uses its own buckle torsion spring, YC.JG.TT000278.
