DJI Agras T70P Propellers
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T70P assemblies (18)
- Spray Tank 1 (38)
- Spray Tank 1 (2) (1)
- Impeller Pump (11)
- Flow Meter (20)
- Omnidirectional Radar Module (1)
- Spray Lance (18)
- Cable Distribution Board (21)
- Front Frame 1 (19)
- Front Frame 2 (31)
- Middle Frame (31)
- Arm 3 (51)
- Landing Gear (43)
- Propellers (12)
- Lifting System Winch (23)
- Misting Spray Lance (18)
- Spreading Spray Tank (25)
- Spreading Spinner Disk (20)
- Spreading Auger (38)

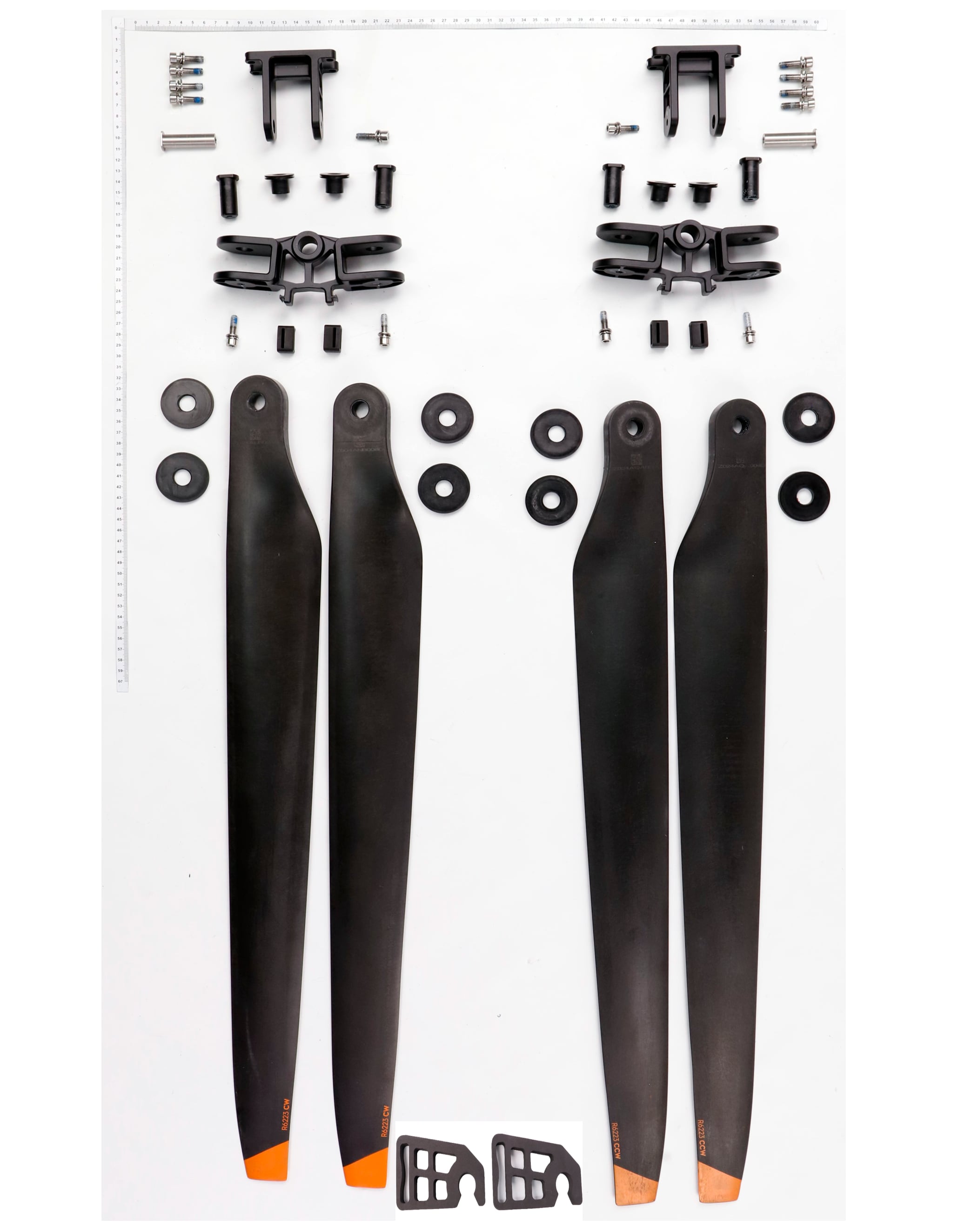

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Screw (M60-NCW02300200-120060-5103-N) YC.ST.LL000750 $3.00 | $3.00 | |
| 2 | Propeller Clamp Base YC.JG.QX004523 $85.00 | $85.00 | |
| 3 | Propeller Clamp Base Shaft YC.JG.QX004525 $14.00 | $14.00 | |
| 4 | Screw (M60-NCW02300200-120060-5103-N) YC.ST.LL000750 $3.00 | $3.00 | |
| 5 | Propeller Shaft YC.JG.QX004524 $10.00 | $10.00 | |
| 6 | Propeller Clamp Bearing YC.JG.ZS006832 $8.00 | $8.00 | |
| 7 | Propeller Clamp YC.JG.QX004522 $114.00 | $114.00 | |
| 8 | Screw (M60-NCW02300200-120060-5103-N) YC.ST.LL000750 $3.00 | $3.00 | |
| 9 | Propeller Clamp Damping Pad YC.JG.ZS007564 $24.00 | $24.00 | |
| 10 | Propeller Gasket YC.JG.ZS006404 (now supplied as YC.JG.ZS008218) $6.60 | $6.60 | |
| 11 | Propeller (CW) YC.JG.XW000292 $148.00 | $148.00 | |
| 12 | Propeller (CCW) YC.JG.XW000291 $148.00 | $148.00 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
