DJI
Buckle Rotation Shaft (T70P/T50/T25P) YC.JG.QX003014
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

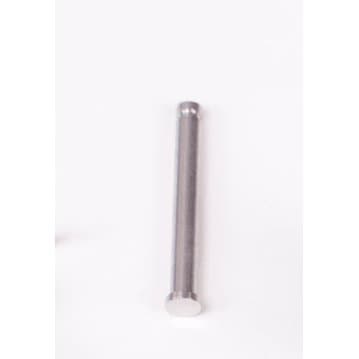

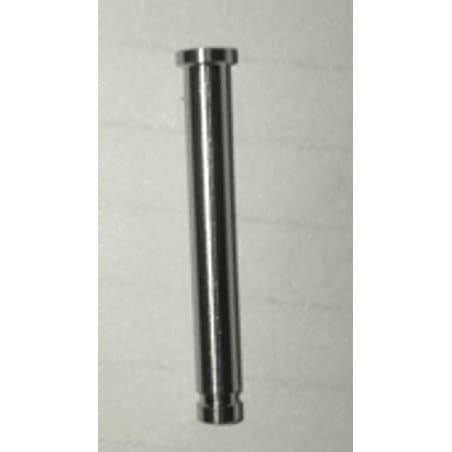

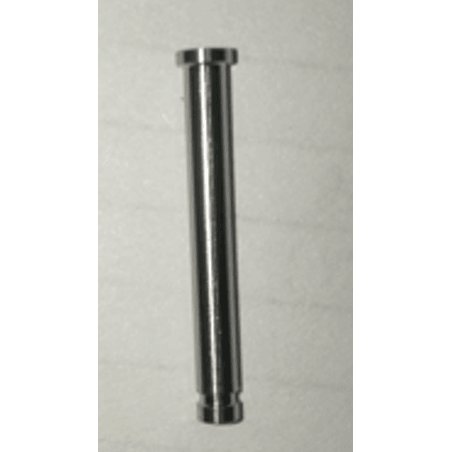

The shaft the arm buckle turns on in the DJI Agras T70P, T50 and T25P. It is drawn on the T70P arm 3 sheet, the T25P M3 aircraft arm sheet and both T50 arm sheets.
| Part number | YC.JG.QX003014 |
| Fits | DJI Agras T70P, T50, T25P |
| Parts diagram | T70P arm 3, callout 26; T50 M1 aircraft arm, callout 34; T50 M3 aircraft arm, callout 39; T25P M3 aircraft arm, callout 16 |
Because the buckle pivots on it each time an arm is locked or released, look for a groove worn into the shaft, a bend, or corrosion that leaves the buckle stiff. All four sheets draw it close to the buckle torsion spring and the 6 mm E-shaped circlip; a spare circlip is handy, as they tend to fly off when sprung loose. While the shaft is out, check the buckle module for cracks.
