DJI
Impeller Pump Curving Connector (T100/T70P) YC.JG.ZS006175
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

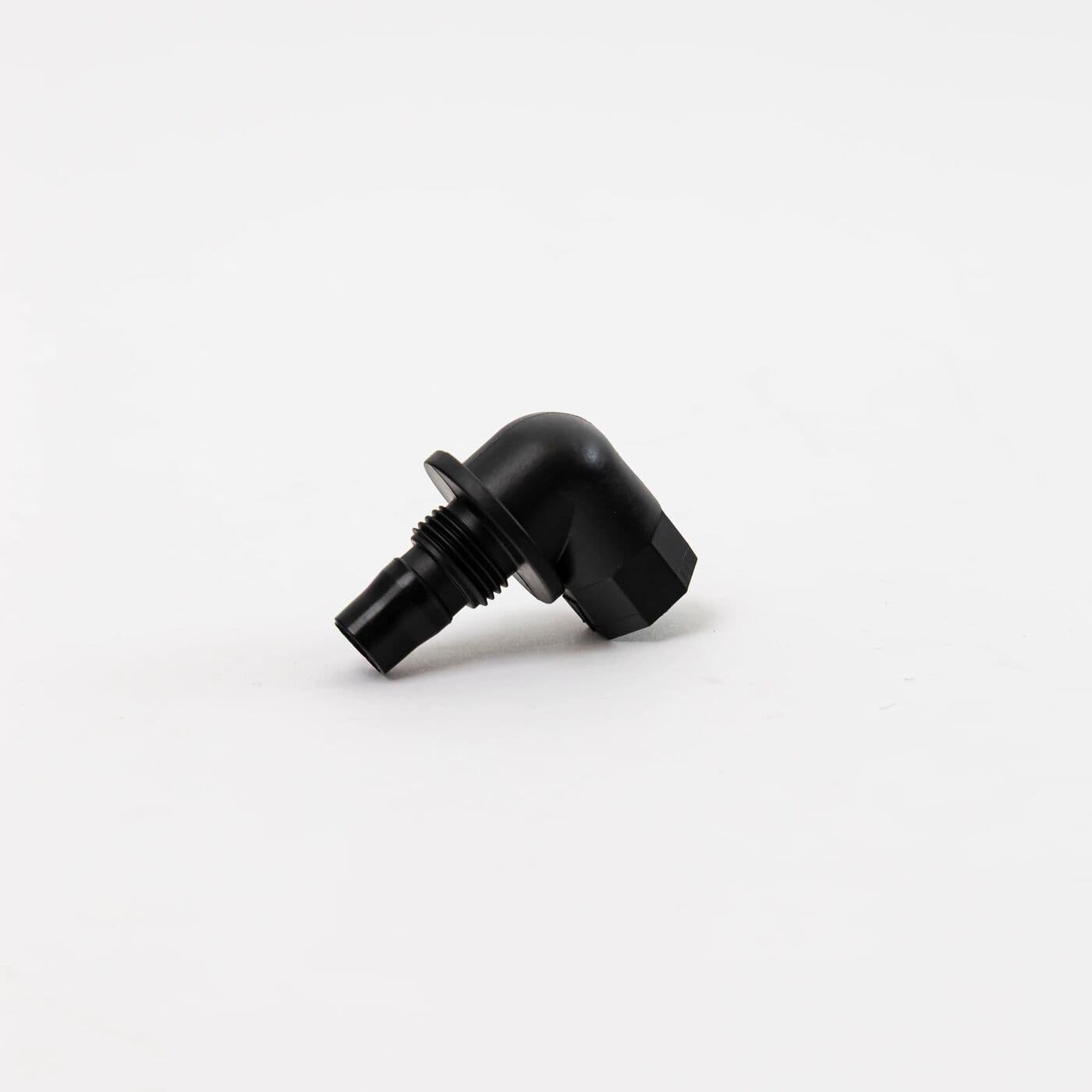

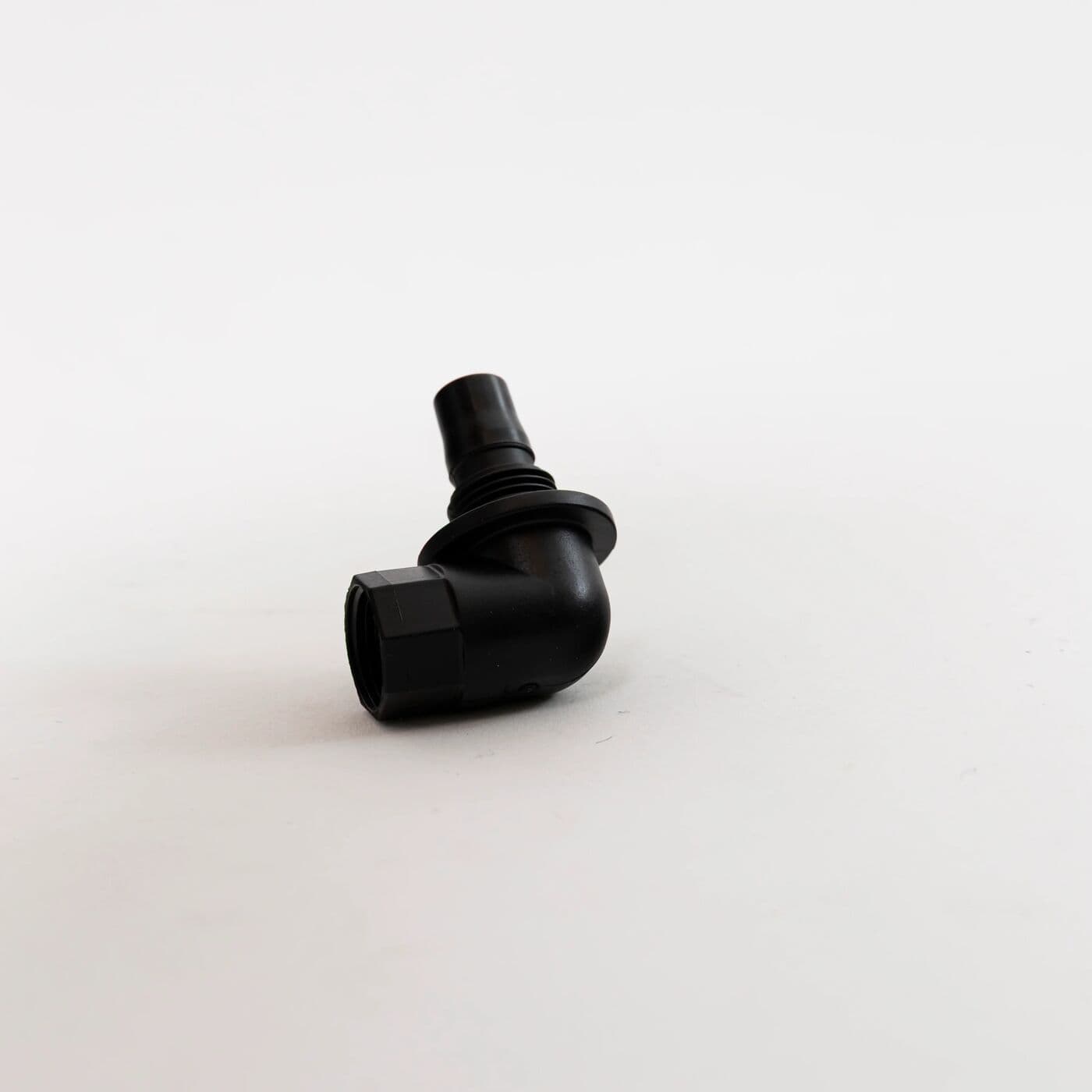

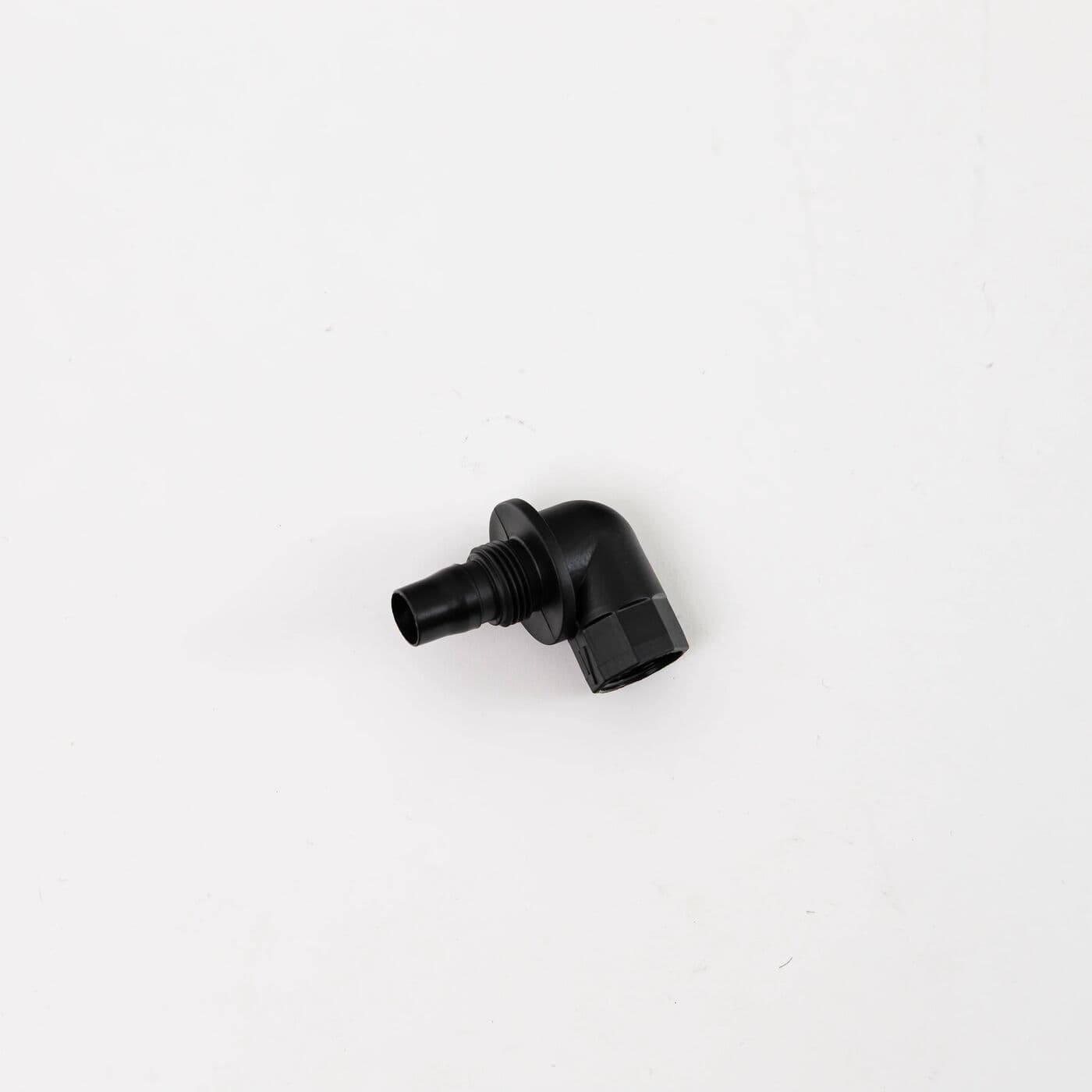

A curved fitting in the liquid path of the DJI Agras T100 and T70P impeller pump, the curving connector seals at its joint with a dedicated ring.
| Part number | YC.JG.ZS006175 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 impeller pump, callout 5; T70P impeller pump, callout 1 |
Replace it if it is cracked or its sealing face is chipped. A hairline split may only weep while the pump is running, so look the connector over closely if a leak keeps coming back after the ring has been changed.
Always pair a replacement with a new curving connector sealing ring rather than reusing the old one, reconnect everything that was attached to it, and test on clean water before loading chemical.
