DJI

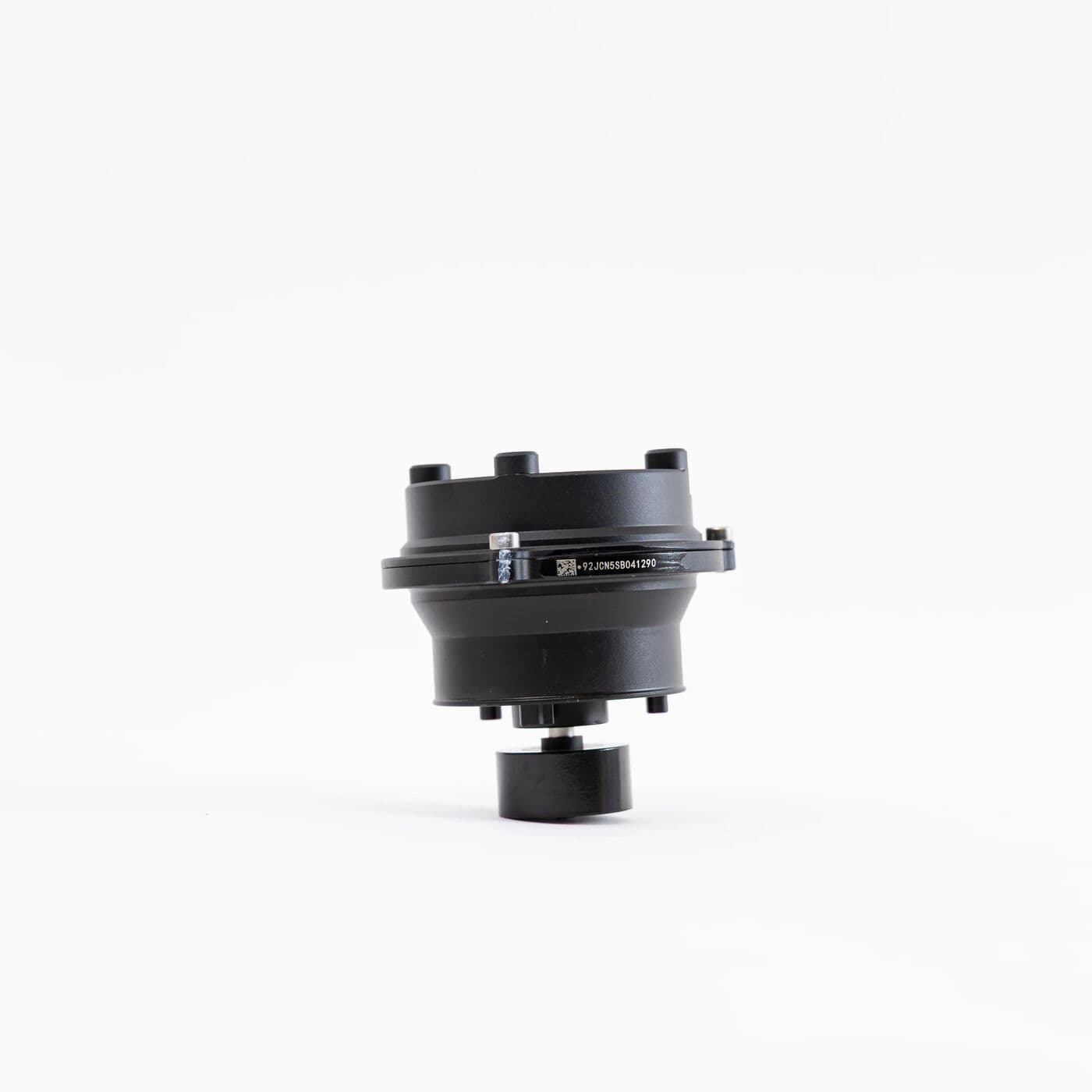

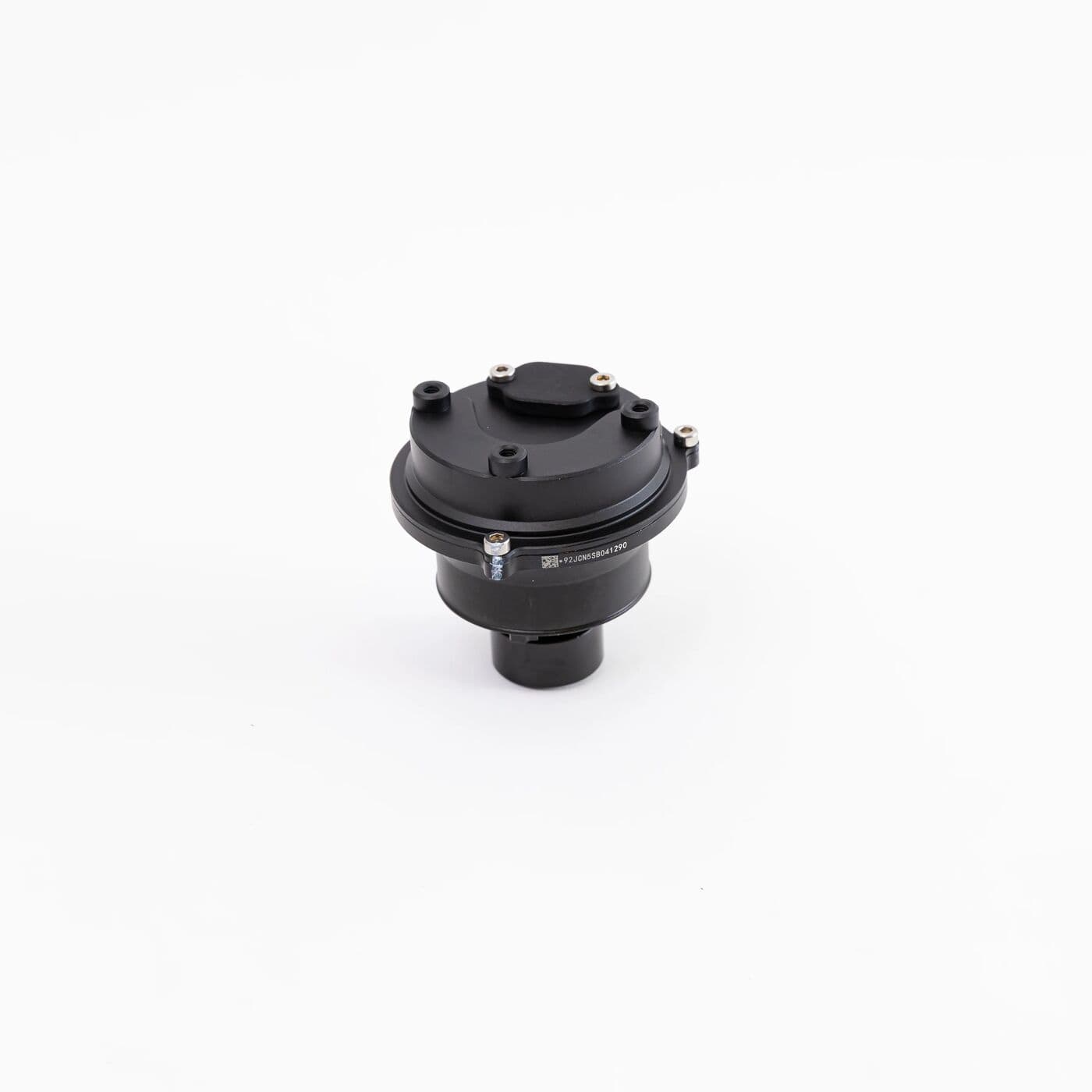

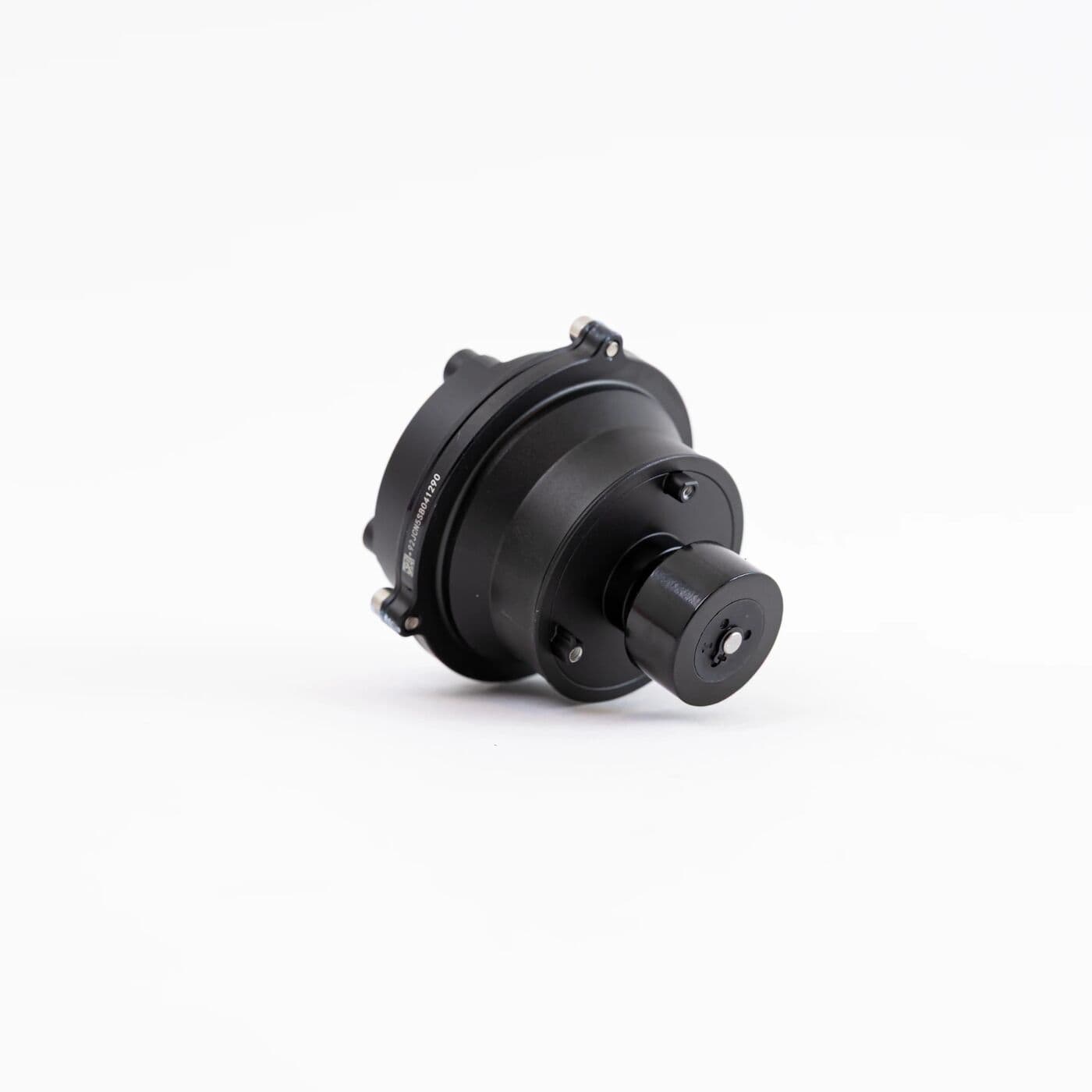

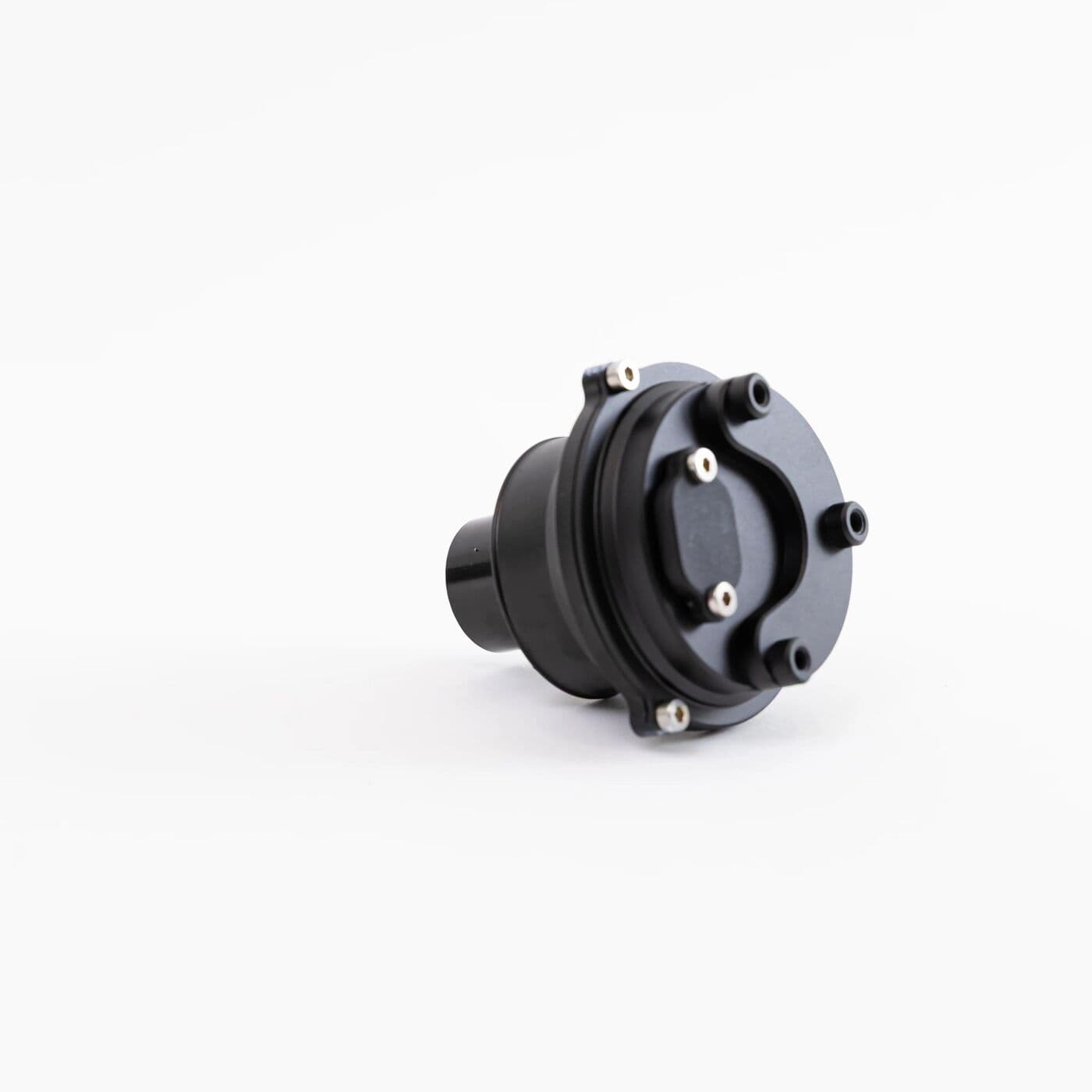

Impeller Pump Motor (T100/T70P) BC.AG.SS001033
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Power for the DJI Agras T100 and T70P impeller pump comes from this motor, which spins the impeller that moves spray liquid out of the tank.
| Part number | BC.AG.SS001033 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 impeller pump, callout 3; T70P impeller pump, callout 13 |
Before condemning the motor, rule out the simpler causes of a pump fault: a jammed impeller module, a damaged cable or a corroded plug. If the motor still will not spin, runs rough or noisy, or the app keeps flagging a pump error, it is likely due for replacement.
Fit a fresh motor sealing ring at the same time, since a tired seal can let liquid through to the motor side of the pump.
