DJI
Impeller Module (T100) BC.AG.SS001032
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

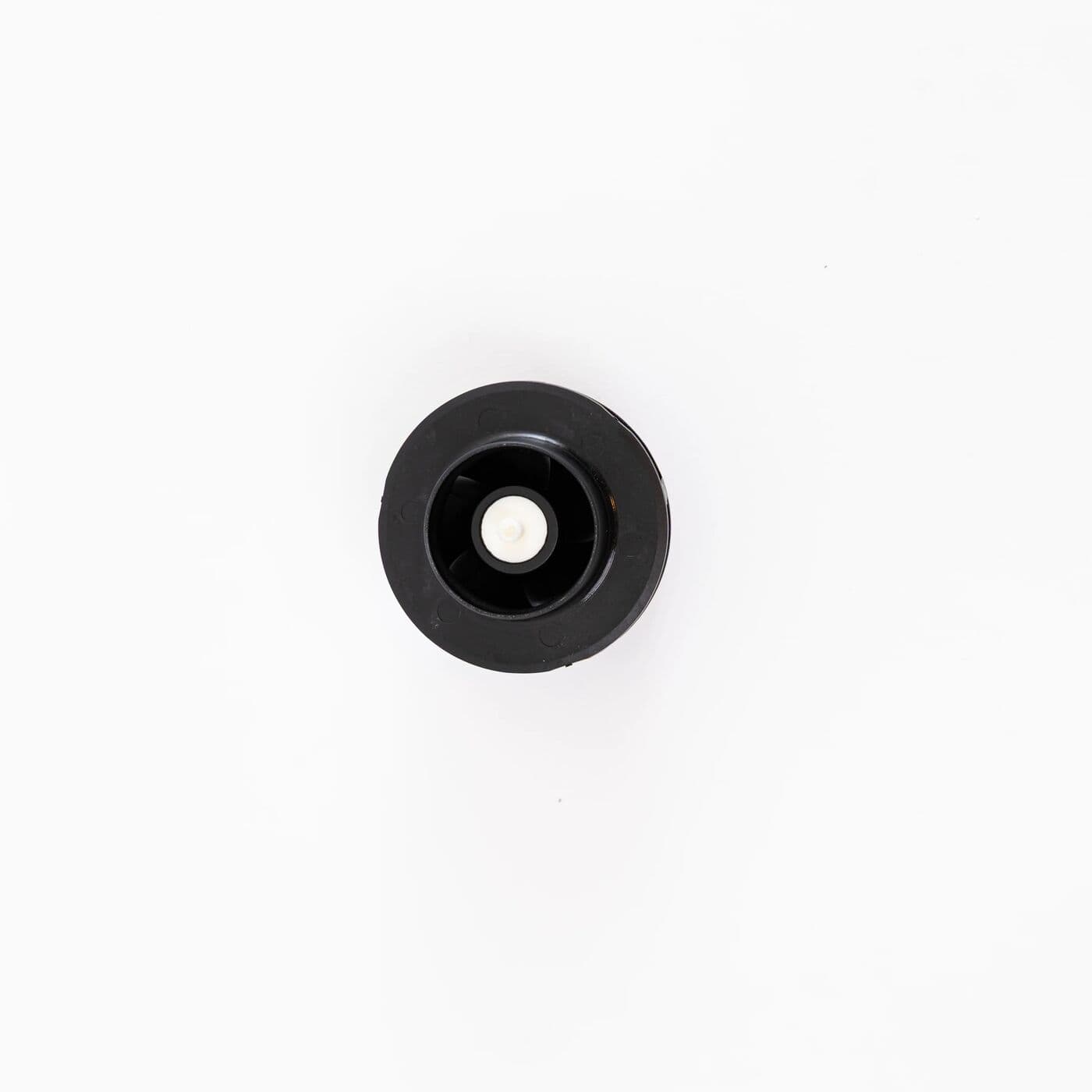

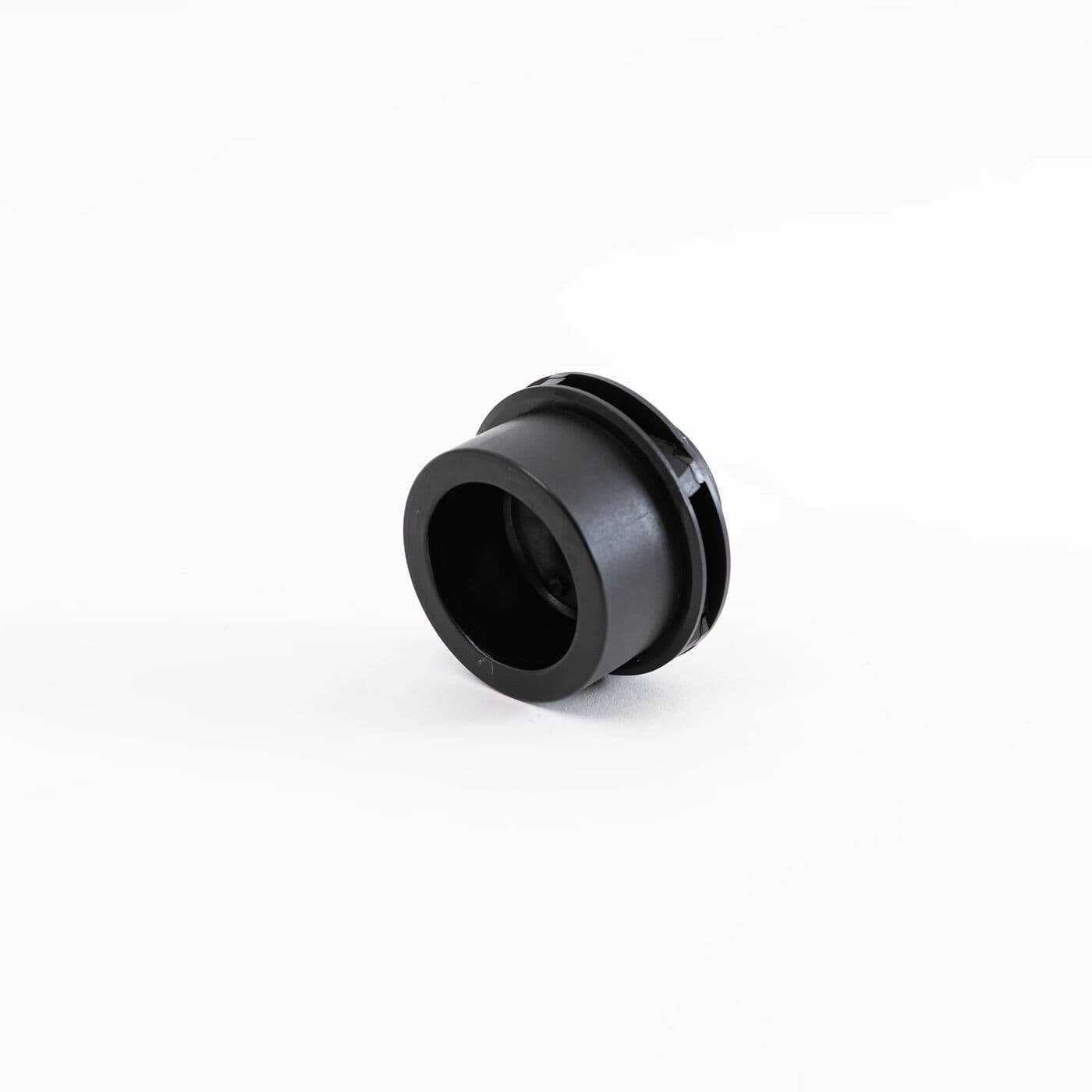

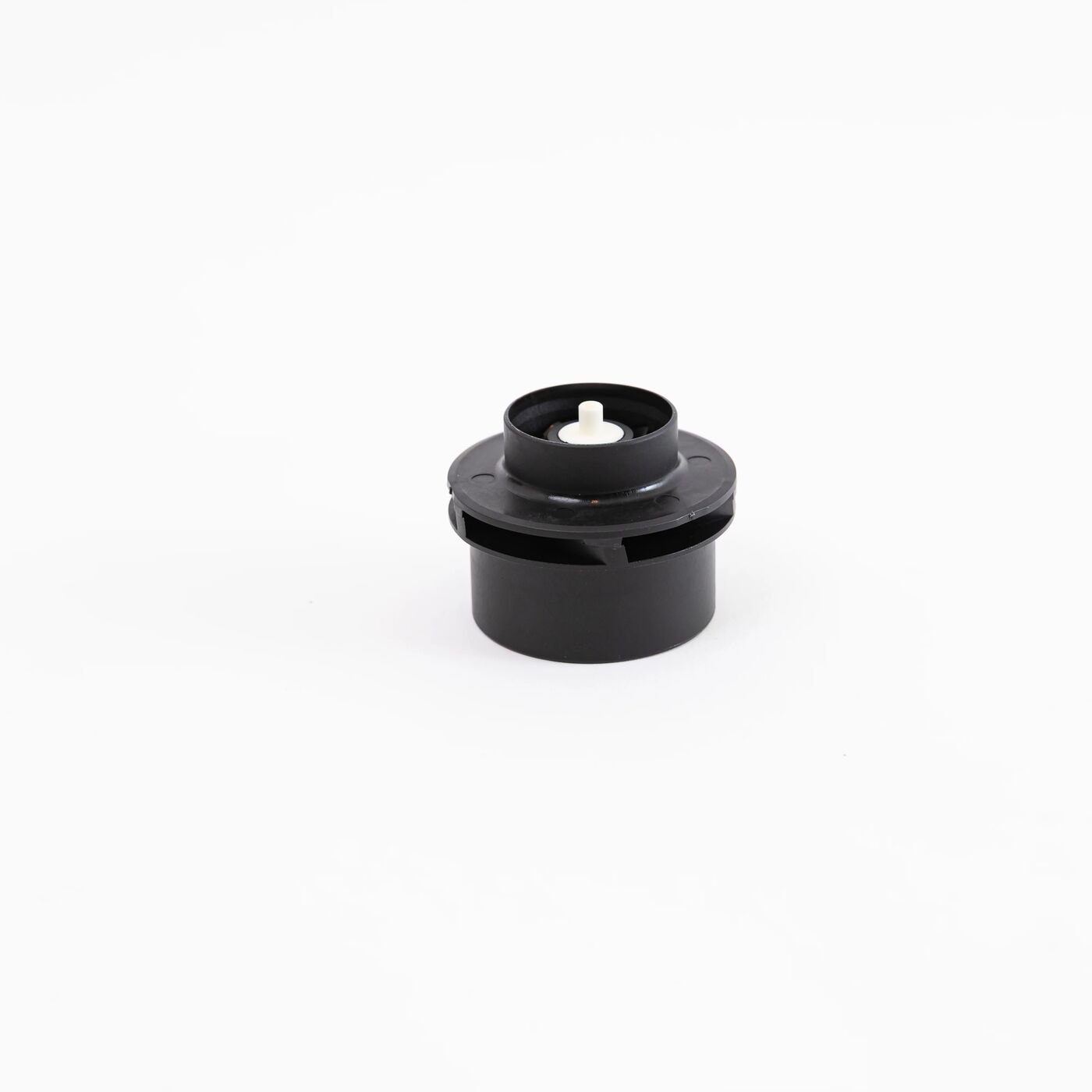

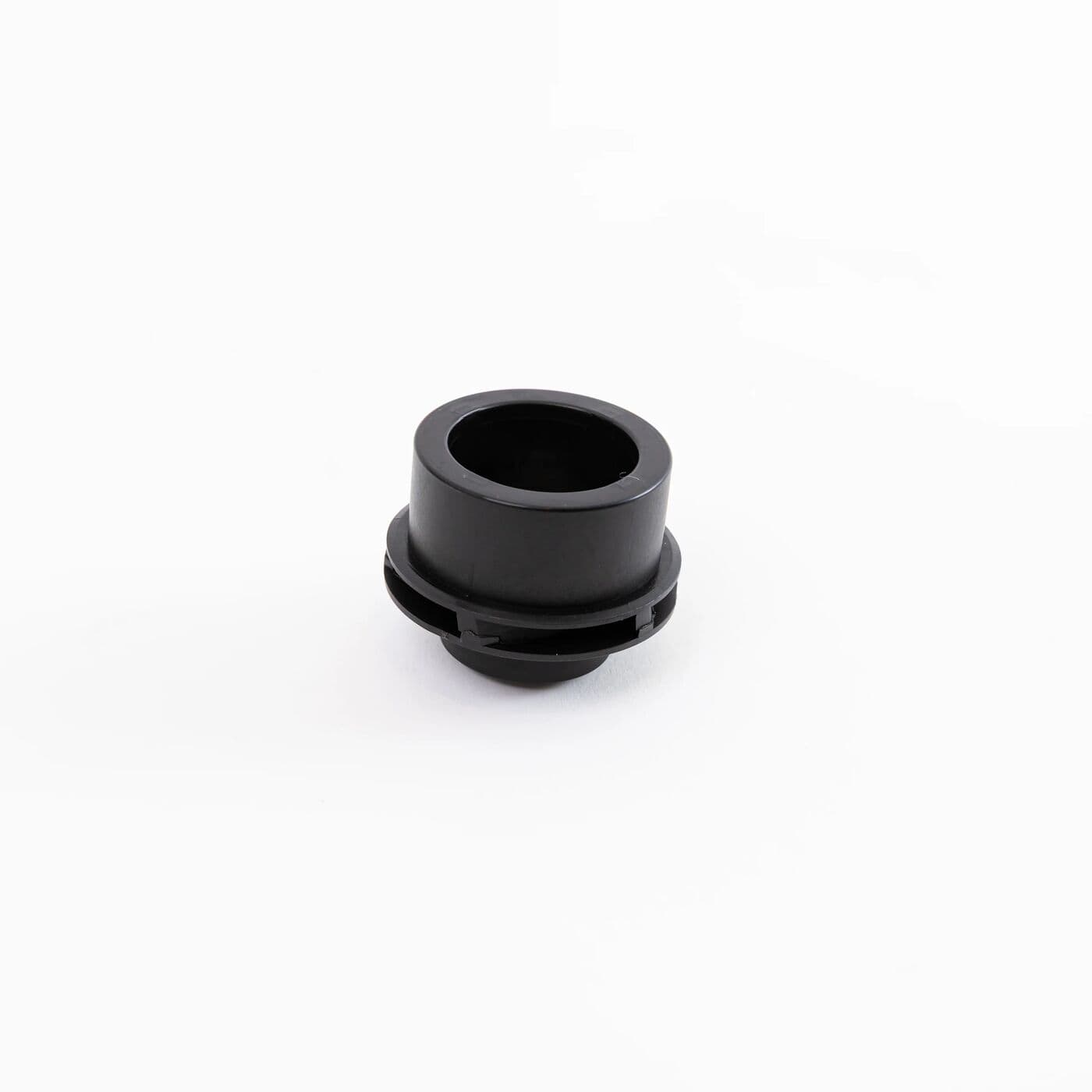

The impeller module is what spins inside the DJI Agras T100 impeller pump, pushing liquid from the tank on towards the sprinklers.
| Part number | BC.AG.SS001032 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 impeller pump, callout 12 |
A chipped, cracked or worn impeller shows up as falling flow, or a pump that runs but cannot hold the rate you have set. Grit and undissolved product are common causes, so strain the mix well when filling.
When fitting a new module, check the inside of the pump shell for scoring and make sure the impeller turns freely by hand once it is in place. If flow is still low afterwards, the impeller pump motor is the next thing to test.
The T70P uses the same pump motor and shell, but DJI's T70P pump diagram does not list an impeller module, so this part is offered for the T100 only. T70P owners with a damaged impeller can send us a photo through the contact page and we will help work out what to order.
